Rear Cover Gasket Replacement

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gear oil.
  2. Remove rear cover and rear cover gasket.
  3. Install new rear cover gasket and rear cover.
  4. Fill final drive with recommended gear oil.

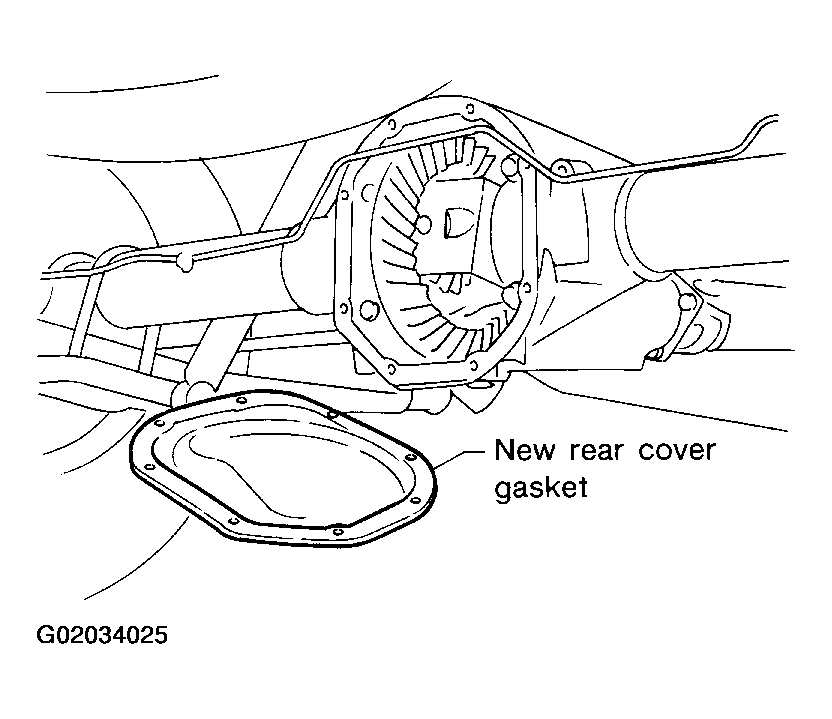

    Fig 1: Identifying Rear Cover Gasket Replacement Procedure
    G02034025Courtesy of NISSAN MOTOR CO., U.S.A.
