Front Oil Seal Replacement

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front propeller shaft.
  2. Loosen drive pinion nut.

    Tool number: KV38108300 (J44195)

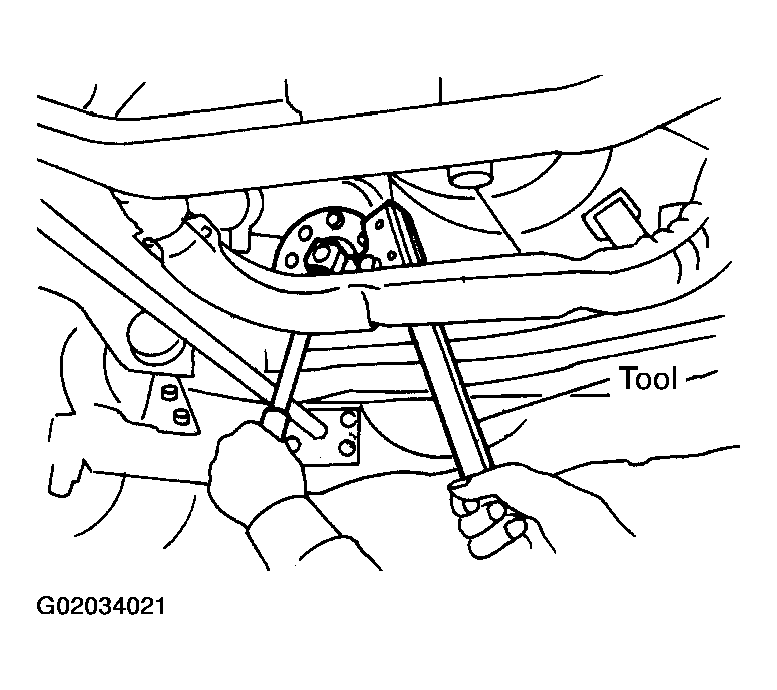

    Fig 1: Loosening Drive Pinion Nut
    G02034021Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove companion flange.

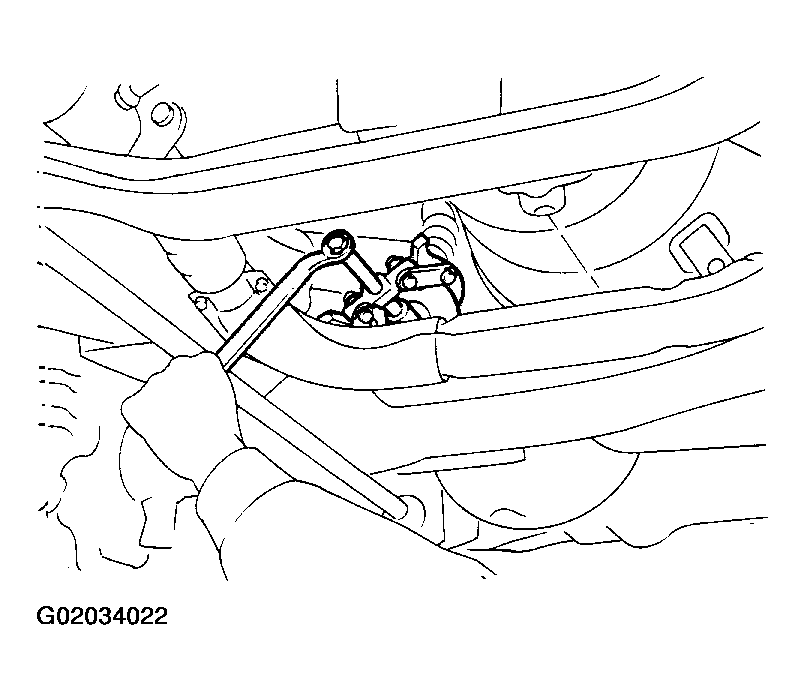

    Fig 2: Removing Companion Flange
    G02034022Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove front oil seal.

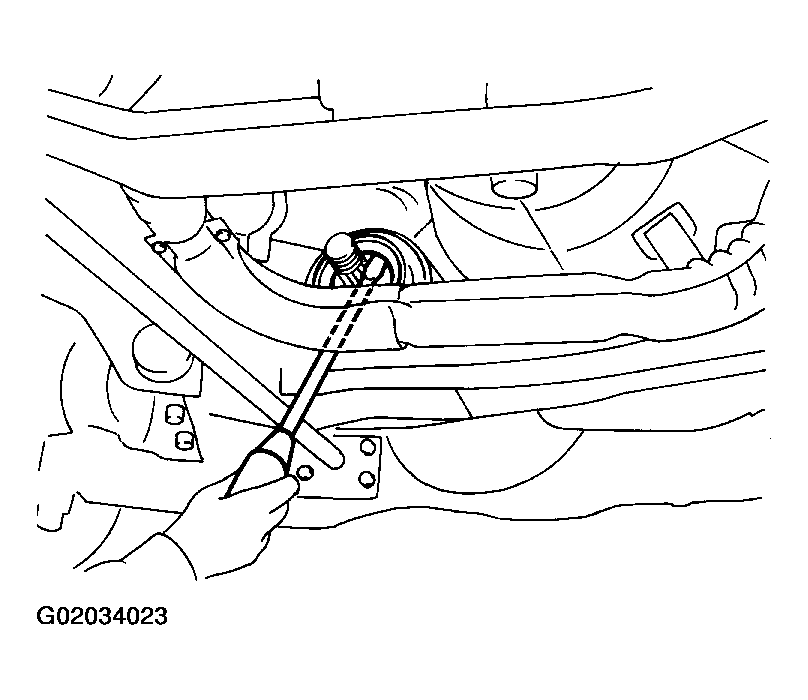

    Fig 3: Removing Front Oil Seal
    G02034023Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
  6. Install companion flange and drive pinion nut.
  7. Install propeller shaft.

    Tool number:

    KV38100500 (J25273)

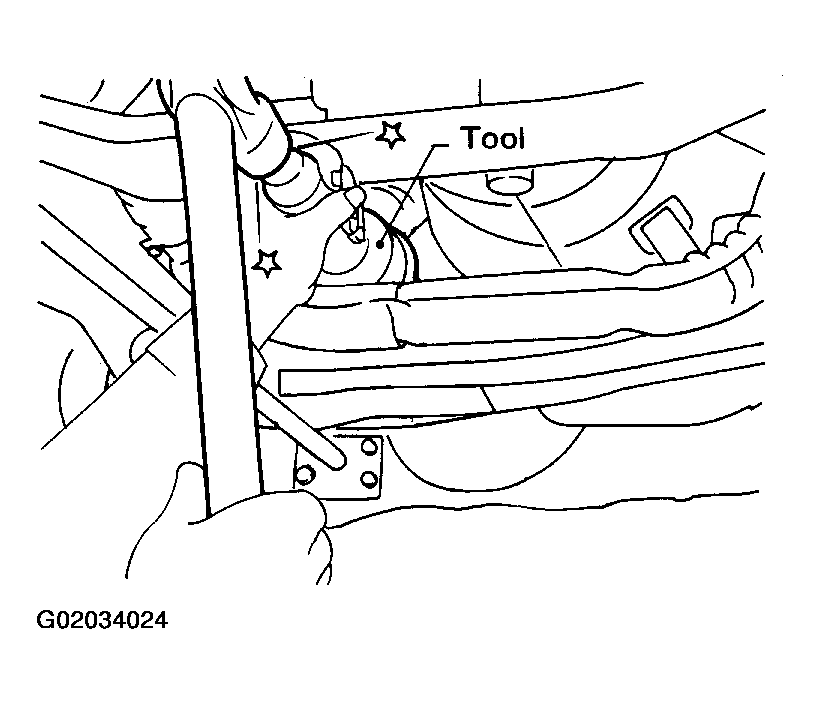

    Fig 4: Installing Companion Flange And Drive Pinion Nut
    G02034024Courtesy of NISSAN MOTOR CO., U.S.A.
