Differential Side Shaft

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

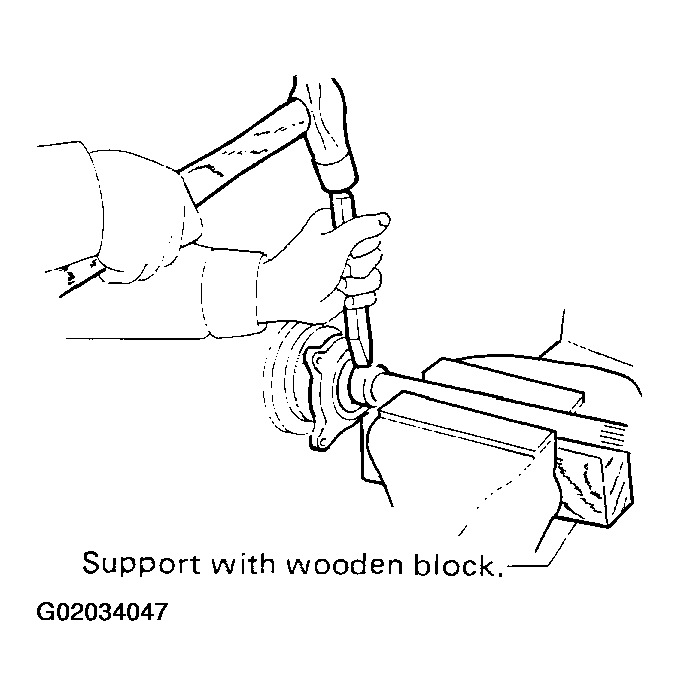

Cut collar with cold chisel. Be careful not to damage differential side shaft.

Fig 1: Cutting Collar With Cold Chisel
Courtesy of NISSAN MOTOR CO., U.S.A.

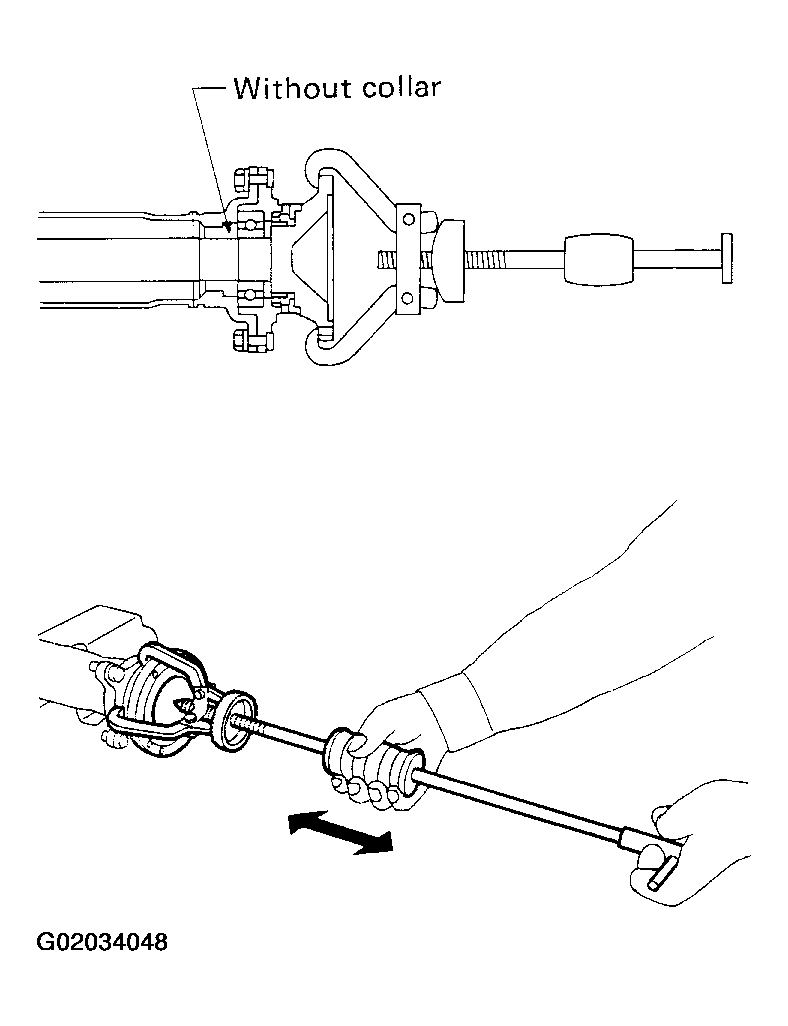

Reinstall differential side shaft into extension tube and secure with bolts. Remove rear axle bearing by drawing out differential side shaft from rear axle bearing with puller.

Fig 2: Removing Rear Axle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove grease seal and oil seal.

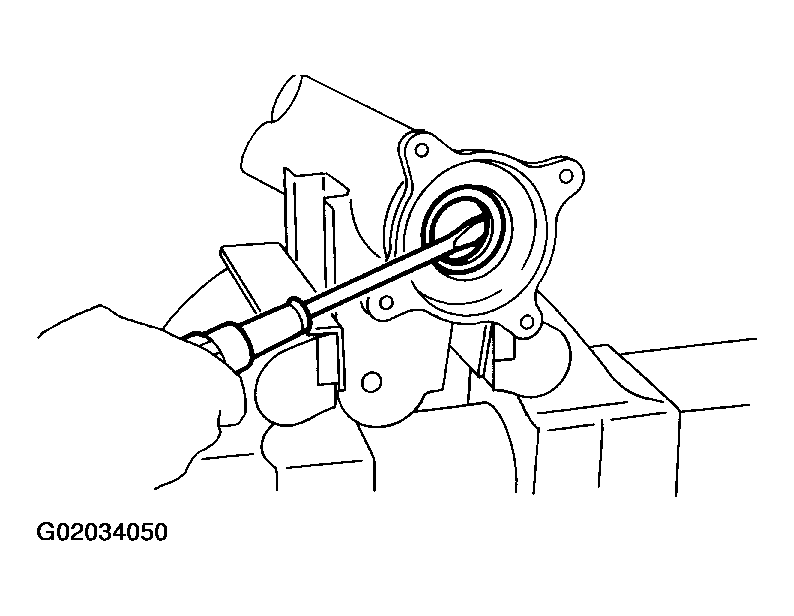

Fig 3: Removing Grease Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

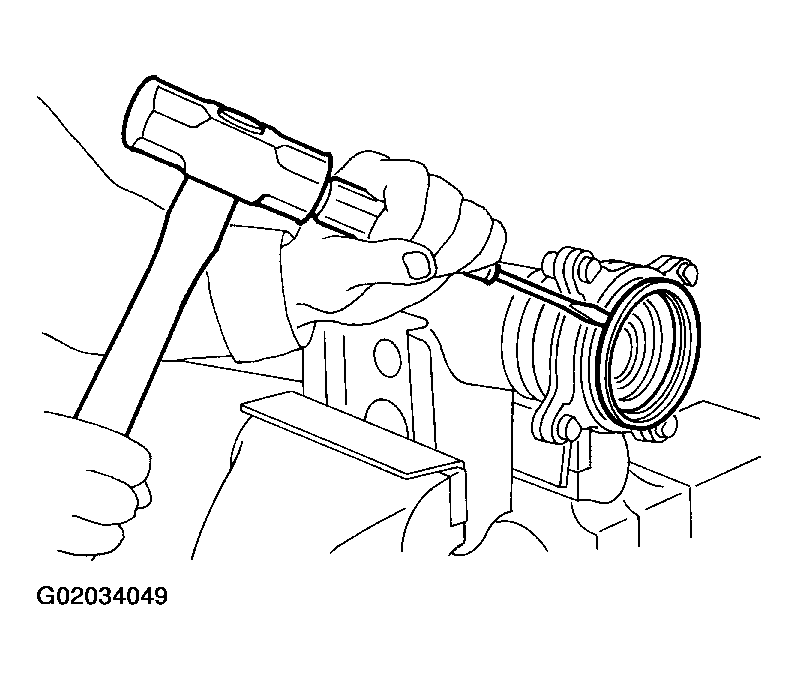

Fig 4: Removing oil seal
Courtesy of NISSAN MOTOR CO., U.S.A.
