Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Put match marks on flanges and separate propeller shaft from final drive.

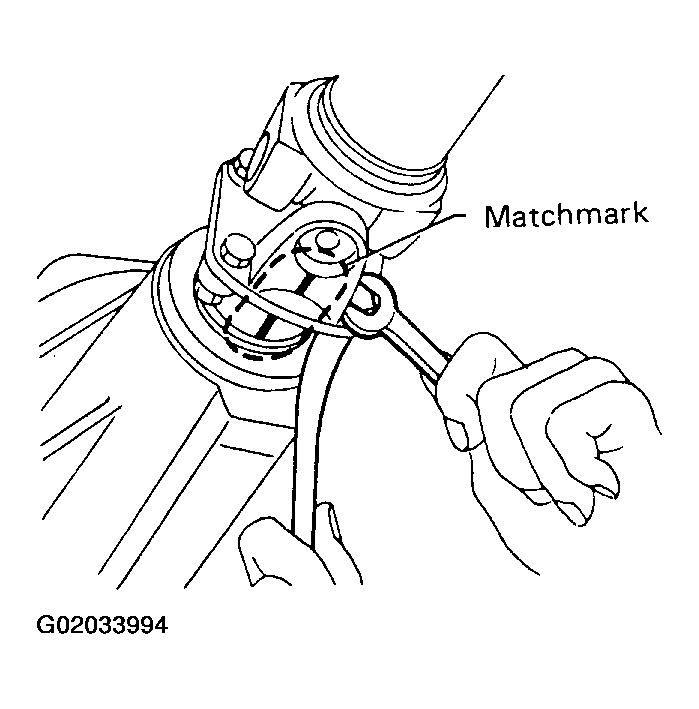

Fig 1: Identifying Matchmarks On Flanges
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out propeller shaft from transmission and plug up rear end of transmission rear extension housing.

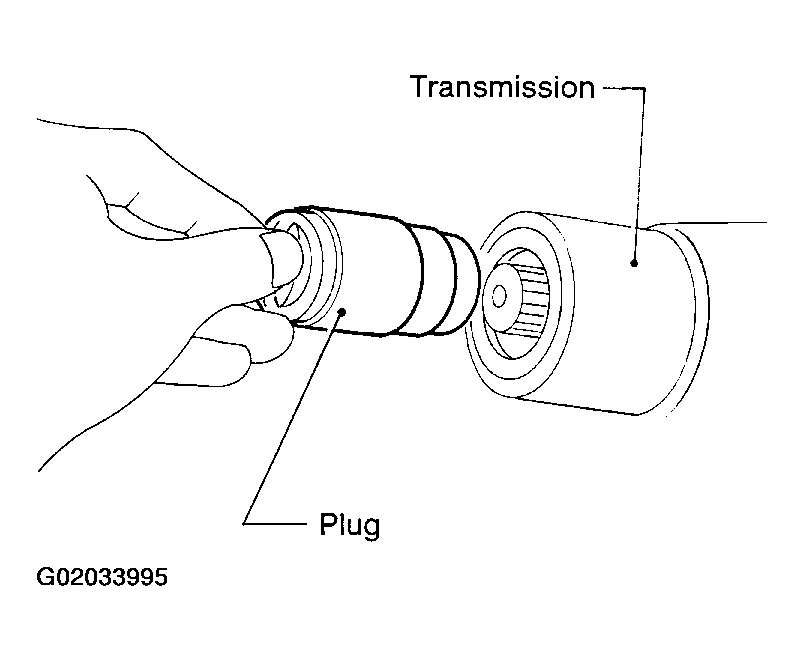

Fig 2: Drawing Propeller Shaft From Transmission And Plug Up
Courtesy of NISSAN MOTOR CO., U.S.A.
