NVH Troubleshooting Chart

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

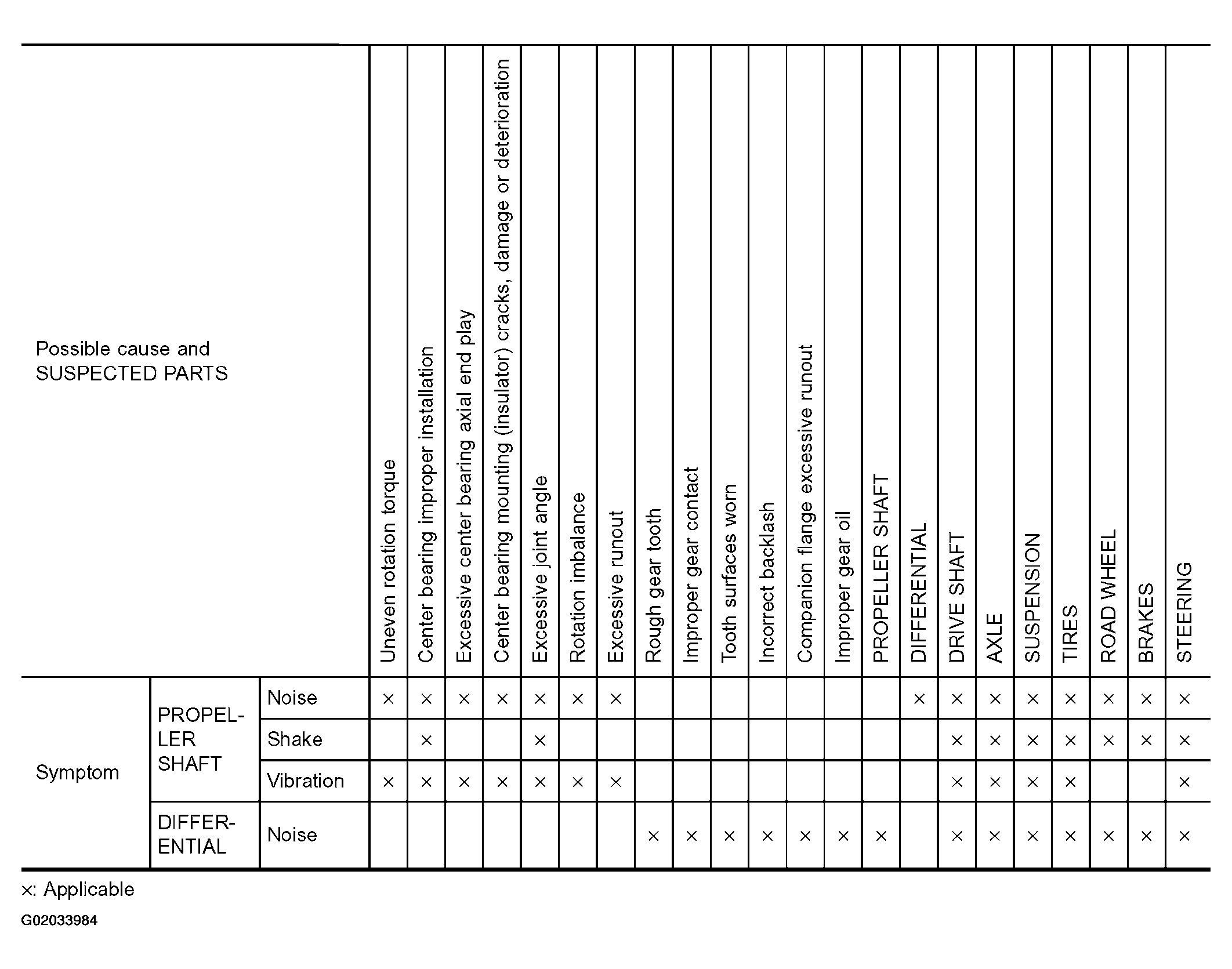

Fig 1: Noise, Vibration And Harshness Troubleshooting Chart
G02033984Courtesy of NISSAN MOTOR CO., U.S.A.
