Journal (71H And 80B)

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put match marks on shaft and flange or yoke.

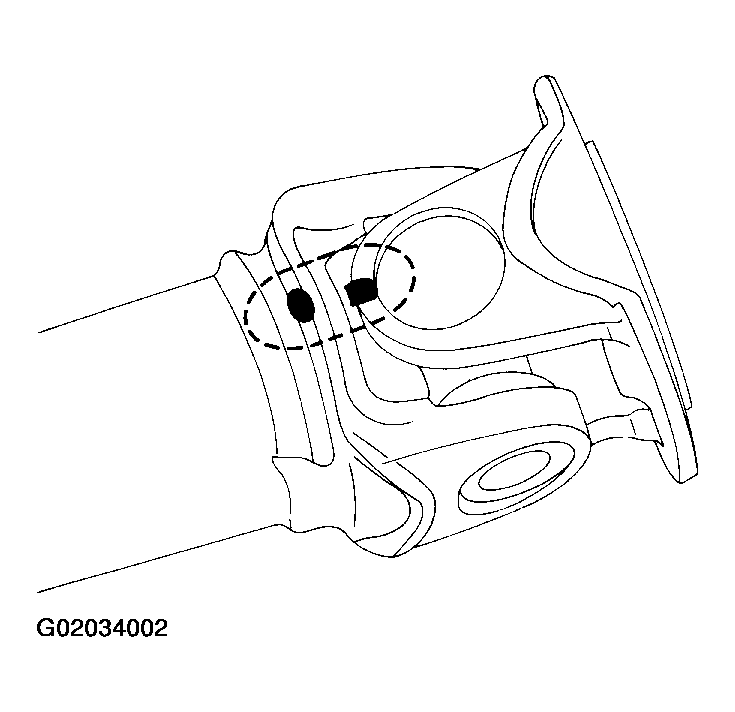

    Fig 1: Putting Match Marks On Shaft And Flange Or Yoke
    G02034002Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove snap ring.

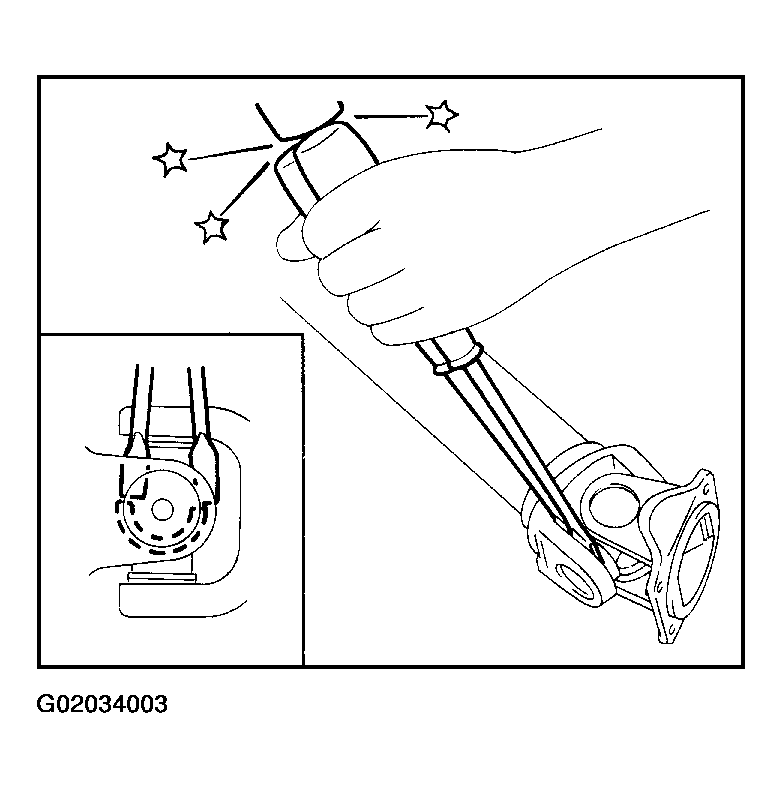

    Fig 2: Removing Snap Ring
    G02034003Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove pushed out journal bearing by lightly tapping yoke with a hammer, taking care not to damage journal and yoke hole.

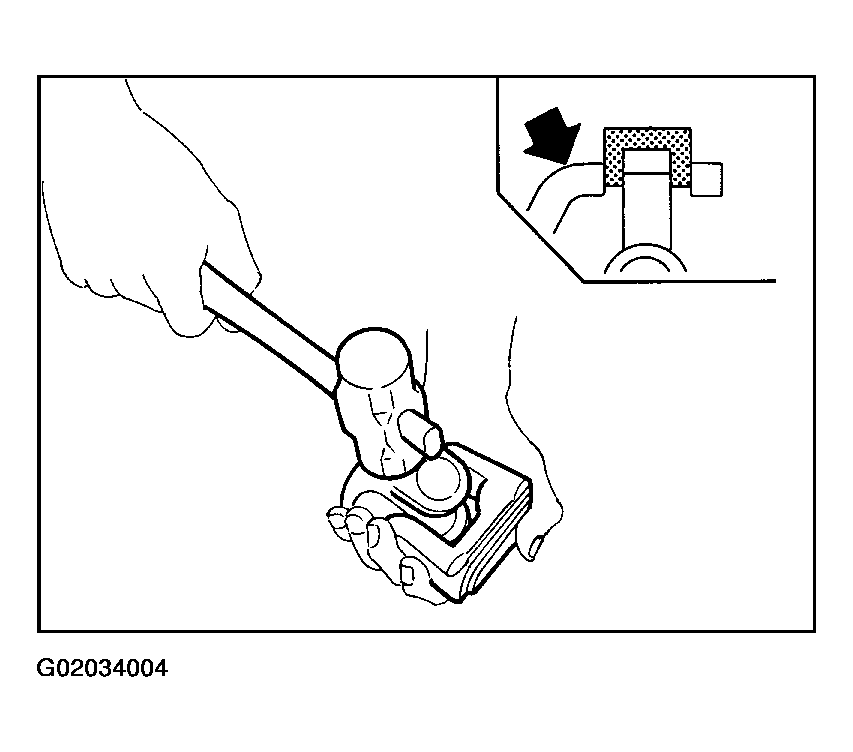

    Fig 3: Tapping Yoke With Hammer
    G02034004Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove bearing at opposite side in above operation.

    Put marks on disassembled parts so that they can be reinstalled in their original positions from which they were removed.

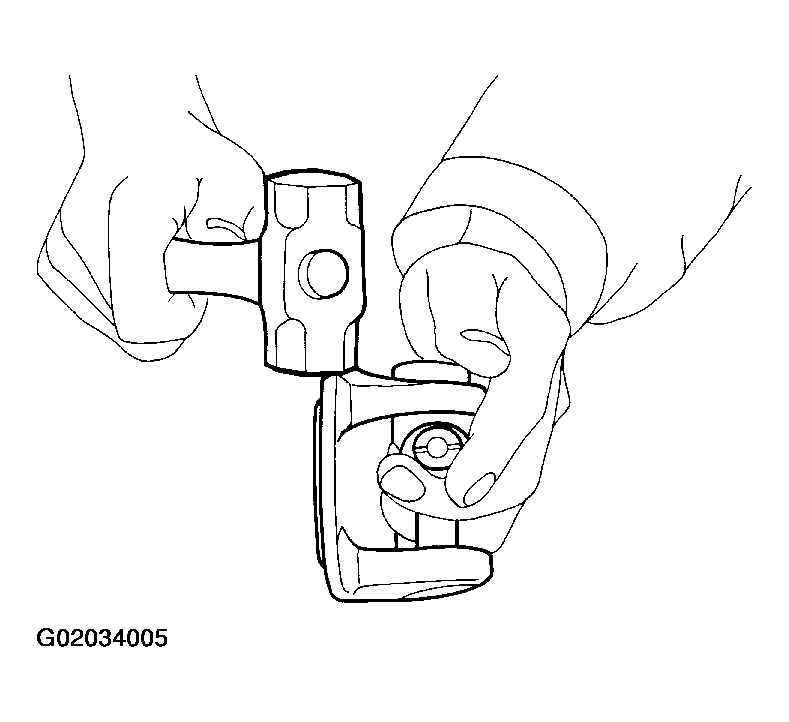

    Fig 4: Removing Bearing At Opposite Side
    G02034005Courtesy of NISSAN MOTOR CO., U.S.A.
