Center Bearing - 2WD -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

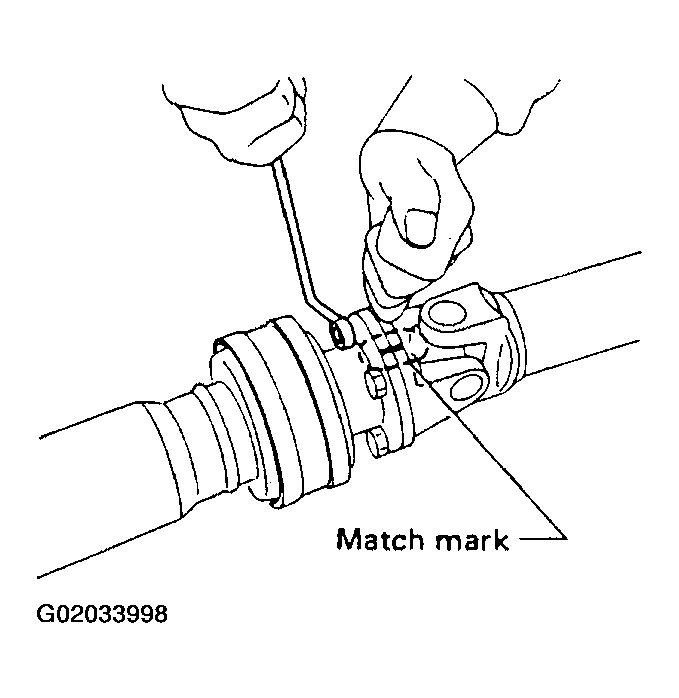

Put match marks on flanges, and separate 2nd tube from 1st tube.

Fig 1: Putting Match Marks On Flanges
Courtesy of NISSAN MOTOR CO., U.S.A.

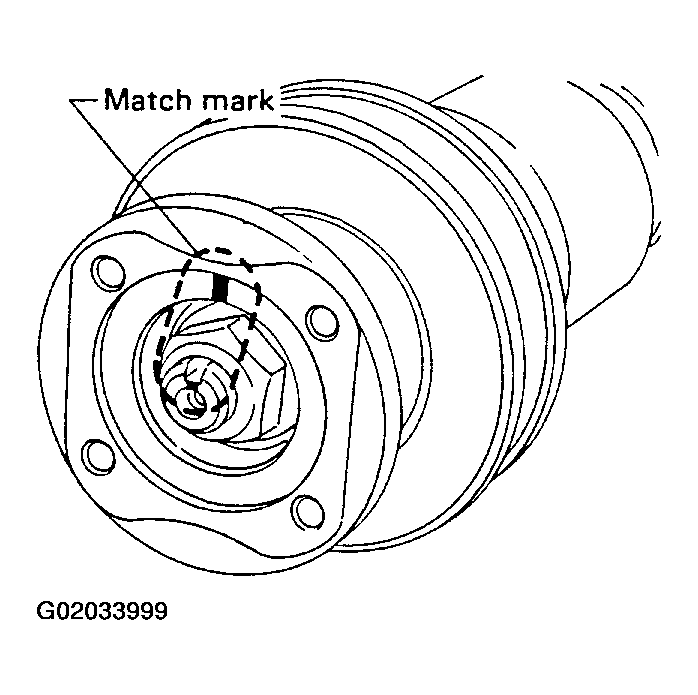

Put match marks on the flange and shaft.

Fig 2: Putting Match Marks On Flange And Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

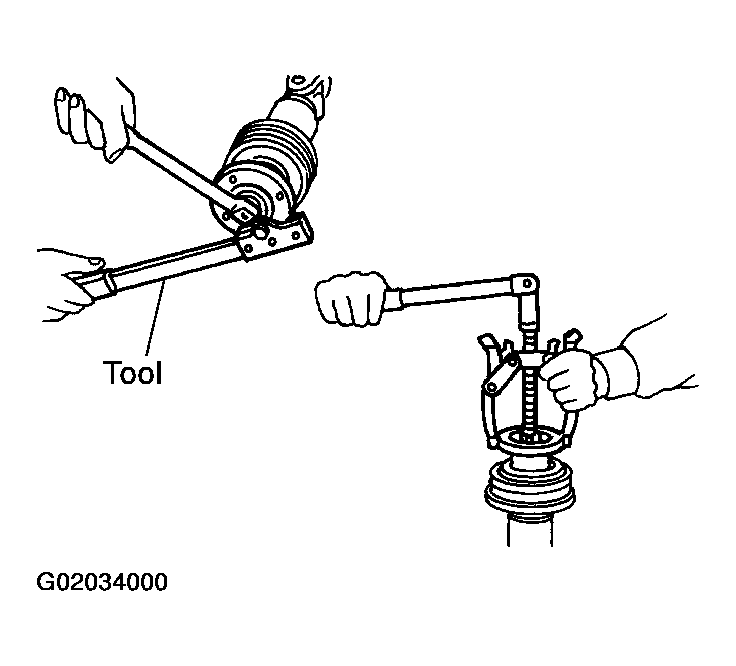

Remove locking nut with Tool.
Tool number:

KV38108300 (J44195)
Remove companion flange with puller.

Fig 3: Removing Locking Nut With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

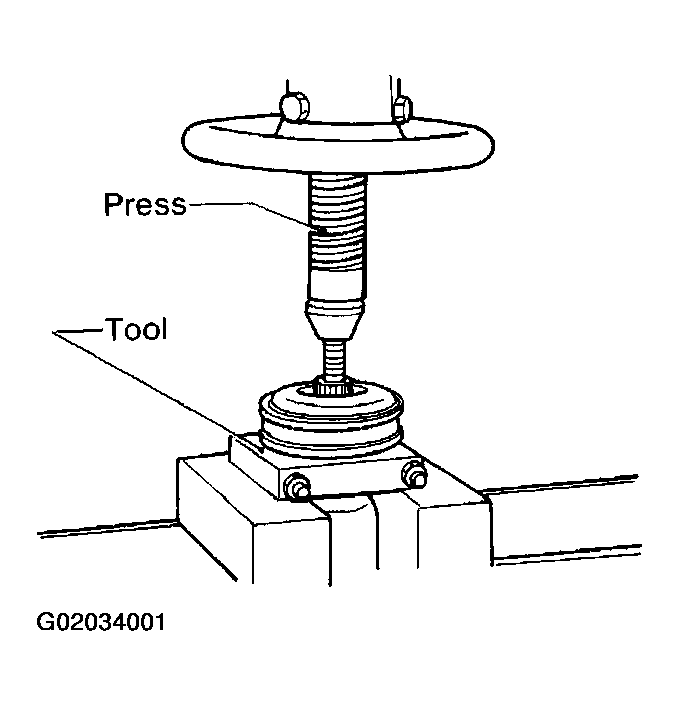

Remove center bearing with Tool and press.
Tool number: ST30031000 (J22912-01)

Fig 4: Removing Center Bearing With Tool And Press
Courtesy of NISSAN MOTOR CO., U.S.A.
