Assemble journal bearing. Apply recommended multi-purpose grease on bearing inner surface.
When assembling, be careful that needle bearing does not fall down.

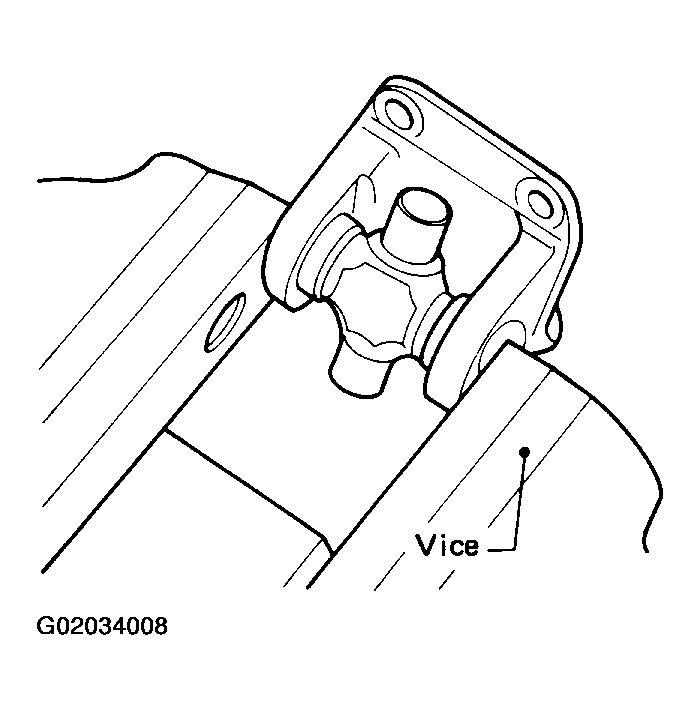

Fig 1: Assembling Journal Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Select snap ring that will provide specified play in axial direction of journal, and install them.
Refer to SDS, SERVICE DATA .

Select snap rings with a difference in thickness at both sides within 0.06 mm (0.0024 in).

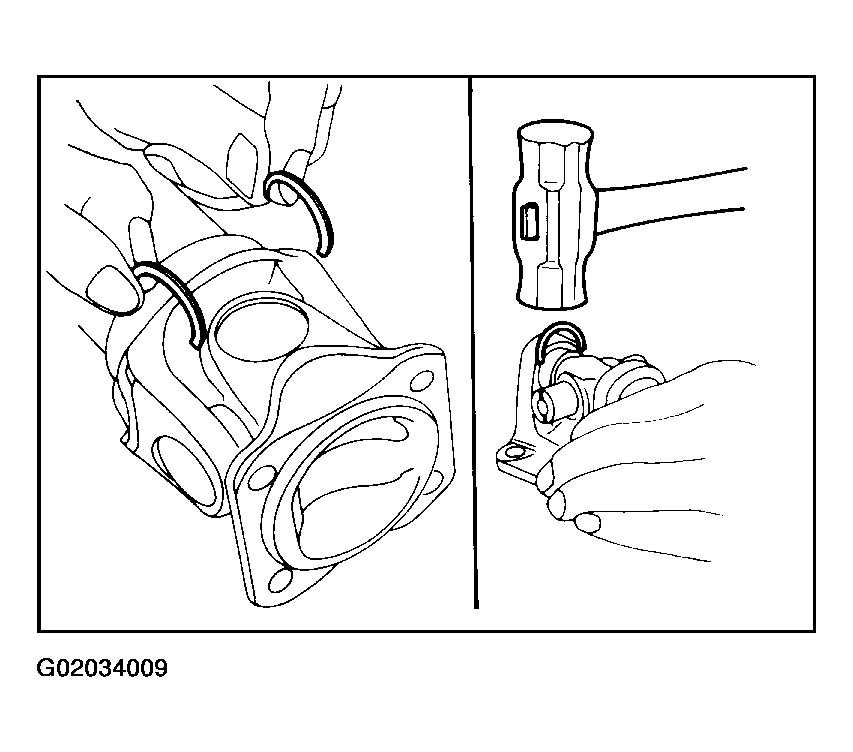

Fig 2: Selecting Snap Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust thrust clearance between bearing and snap ring to zero by tapping yoke.

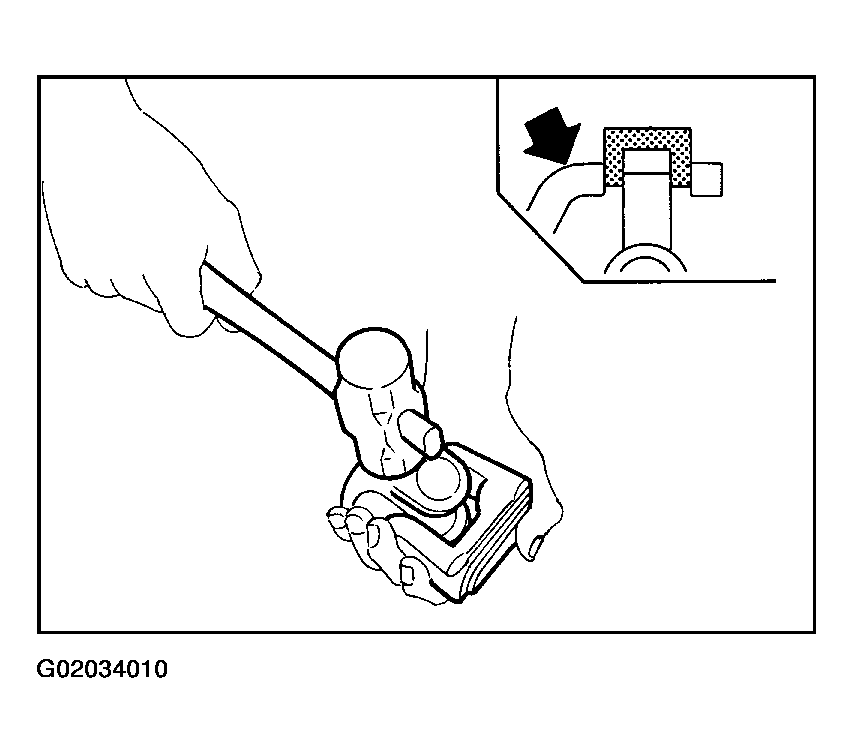

Fig 3: Tapping Yoke
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that journal moves smoothly and check for axial play.
Axial play: 0.02 mm (0.0008 in) or less

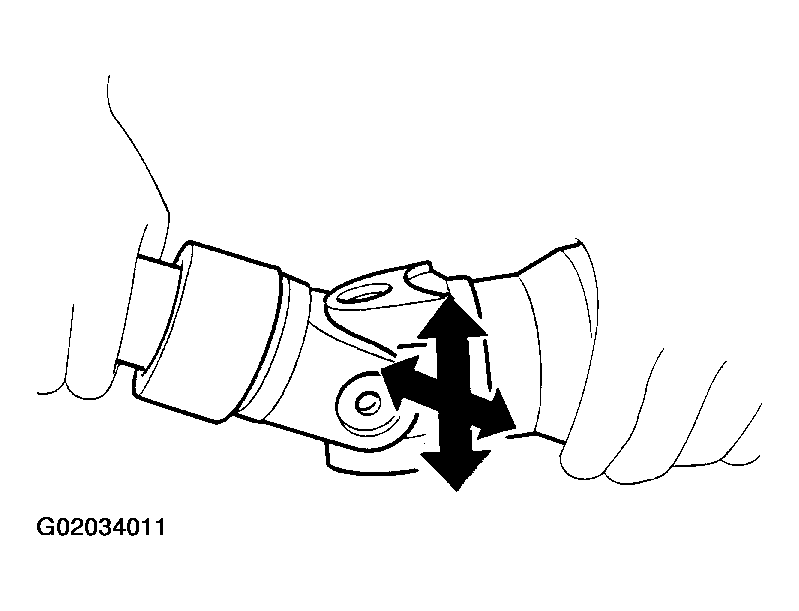

Fig 4: Checking For Axial Play
