Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK TRANSFER FLUID TEMPERATURE SENSOR

    Refer to "2-4WD Shift Solenoid Valve and Transfer Fluid Temperature Sensor", "COMPONENTS INSPECTION ".

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace fluid temperature sensor.
  2. CHECK CONTINUITY

    Check the following.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace transfer sub-harness.
  3. CHECK INPUT SIGNAL
    1. WITH CONSULT-II: GO TO 4.
    2. WITHOUT CONSULT-II: GO TO  5.
  4. CHECK INPUT SIGNAL

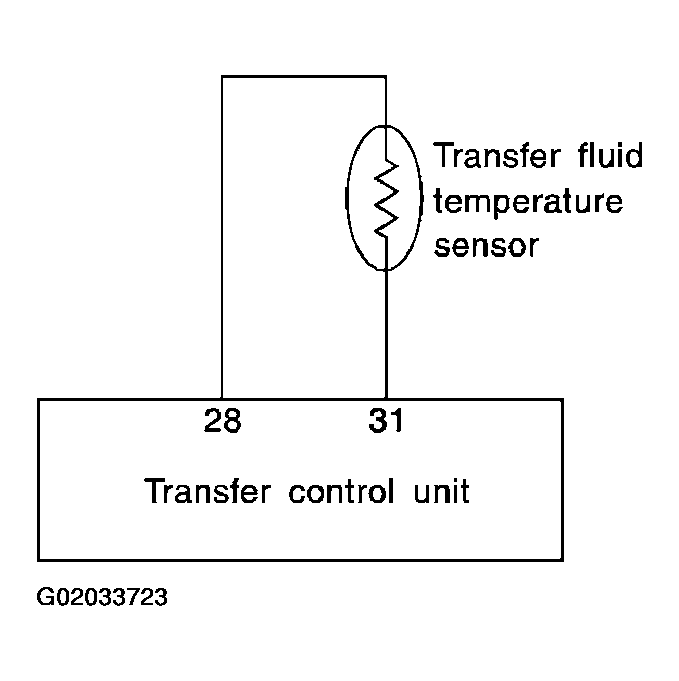

    Fig 1: Identifying Transfer Fluid Temperature Sensor Circuit Diagram
    G02033723Courtesy of NISSAN MOTOR CO., U.S.A.

    With CONSULT-II

    1. Start engine.
    2. Select "ECU INPUT SIGNALS" in Data Monitor.
    3. Read out the value of "FLUID TEMP SE".

      Voltage:

      20°C (68°F): Approx. 1.5V

      80°C (176°F): Approx. 0.5V

      Fig 2: View Of Moving Vehicle
      G02033724Courtesy of NISSAN MOTOR CO., U.S.A.

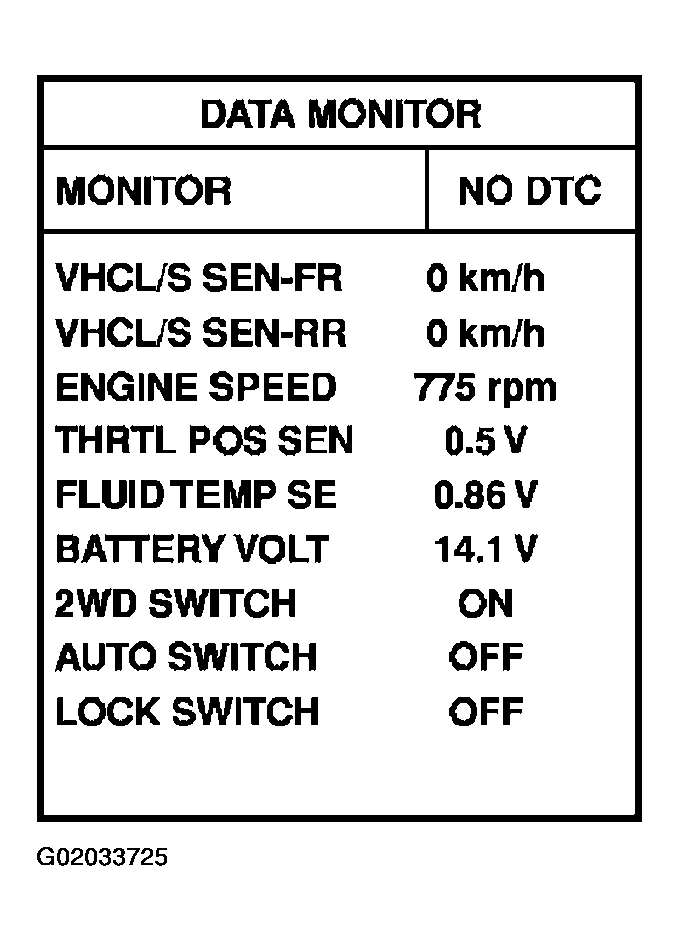

      Fig 3: CONSULT-II Data Monitor Display
      G02033725Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  6.
    2. NG: Check the following.
      • Continuity between transfer control unit and transfer terminal cord assembly sub-harness connector
  5. CHECK INPUT SIGNAL

    Without CONSULT-II

    1. Turn ignition switch to "ON" position.
    2. Check voltage between transfer control unit harness connector terminals 28 and 31.

      Voltage:

      20°C (68°F): Approx. 1.5V

      80°C (176°F): Approx. 0.5V

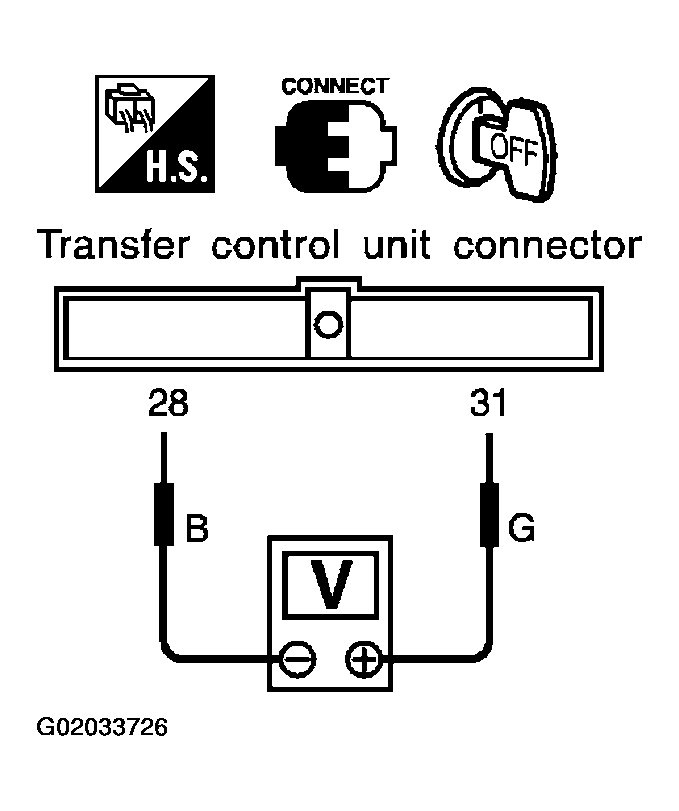

      Fig 4: Checking Input Signal Without CONSULT-II
      G02033726Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Check the following.
      • Continuity between transfer control unit and transfer terminal cord assembly sub-harness connector
  6. PERFORM SELF-DIAGNOSIS AGAIN

    After driving for a while, perform self-diagnosis again.

    Refer to "TROUBLE DIAGNOSIS WITHOUT CONSULT-II ".

    OK or NG

    1. OK: INSPECTION END
    2. NG:
      1. Perform transfer control unit input/output signal inspection. Refer to "TRANSFER CONTROL UNIT INSPECTION TABLE ", "TROUBLE DIAGNOSIS - GENERAL DESCRIPTION".
      2. If NG, recheck transfer control unit pin terminals for damage or loose connection with harness connector.
