Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

SHIFT ACTUATOR
Refer to "ACTUATOR & ACTUATOR POSITION SWITCH ", "COMPONENT INSPECTION".

OK or NG
1. OK: GO TO 3.
2. NG: GO TO 2.
CHECK POWER SOURCE

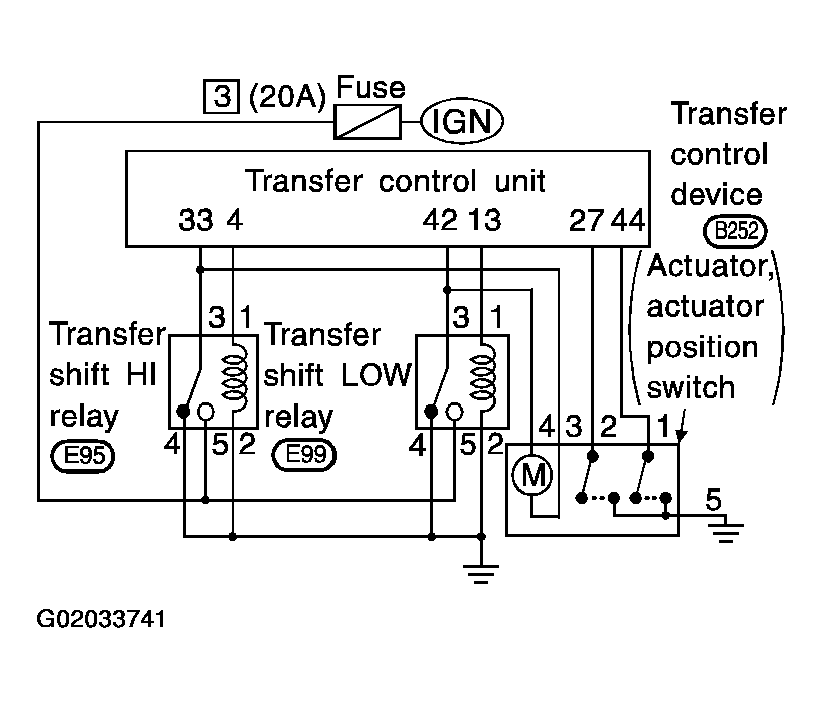

Fig 1: Checking Power Source
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Disconnect transfer control device terminal.
2. Turn ignition switch to "ON". (Do not start engine.)
3. Check voltage between transfer control device harness connector 3 (or 4) and body ground while 4WD shift switch is set from 4H to 4LO (or from 4LO to 4H).
  Voltage: Battery voltage
OK or NG
1. OK: Repair or replace actuator.
2. NG:
  1. Recheck the following.
    - Continuity between ignition switch and transfer HI & LOW relays
    - Ignition switch and No. 3 fuse (20A)
    - Continuity between transfer shift HI & LOW relays and transfer control device
  2. If NG, repair or replace damaged part.
CHECK INPUT SIGNAL
1. WITH CONSULT-II: GO TO 4.
2. WITHOUT CONSULT-II: GO TO 5.
CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine (idling).
2. Select "SELF-DIAG RESULTS" in Select Diag Mode.
3. Read out self-diagnostic result.

  Fig 2: Identifying Transfer Control Device Connection With Transfer Control Unit
  Courtesy of NISSAN MOTOR CO., U.S.A.

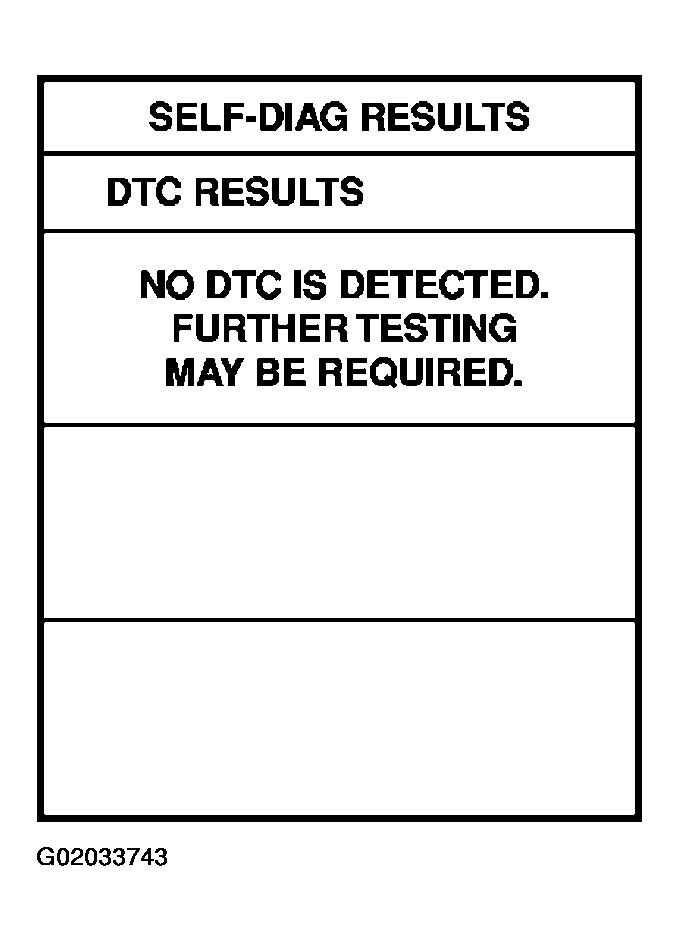

  Fig 3: CONSULT-II - Self Diag Results Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 7.
2. NG: GO TO 6.
CHECK INPUT SIGNAL
Without CONSULT-II
1. Start engine (idling).
2. Check voltage between transfer control unit harness connector terminal 33 (or 42) and body ground while 4WD shift switch is set from 4H to 4LO (or from 4LO to 4H).

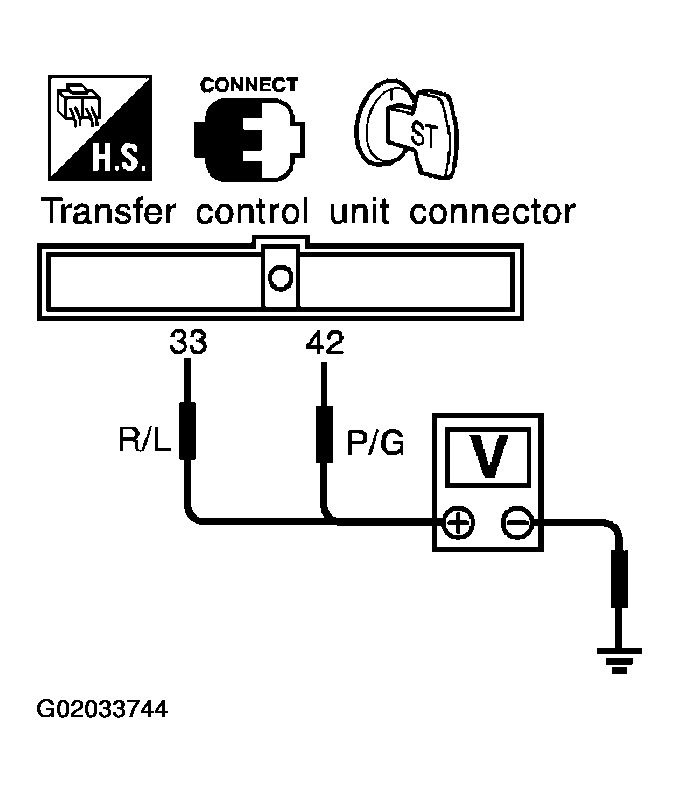

  Fig 4: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Result

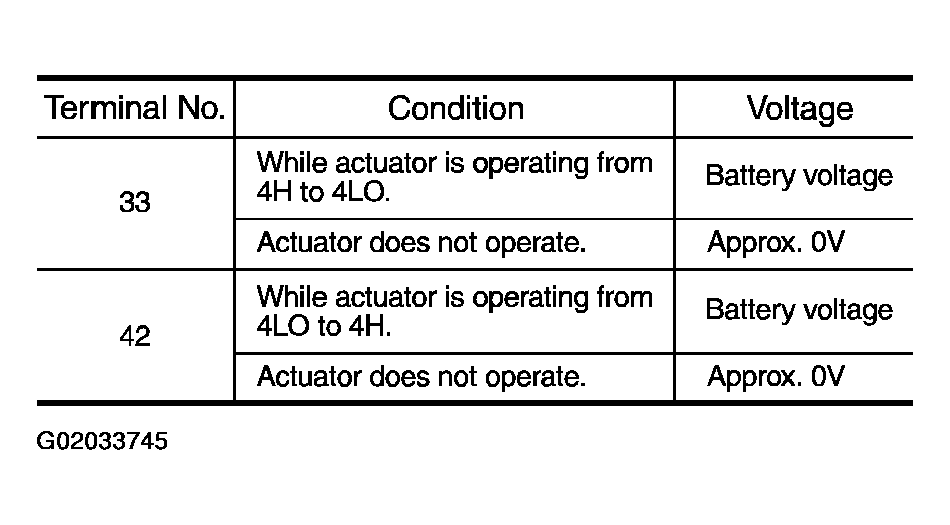

  Fig 5: Terminal No. And Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 7.
2. NG: GO TO 6.

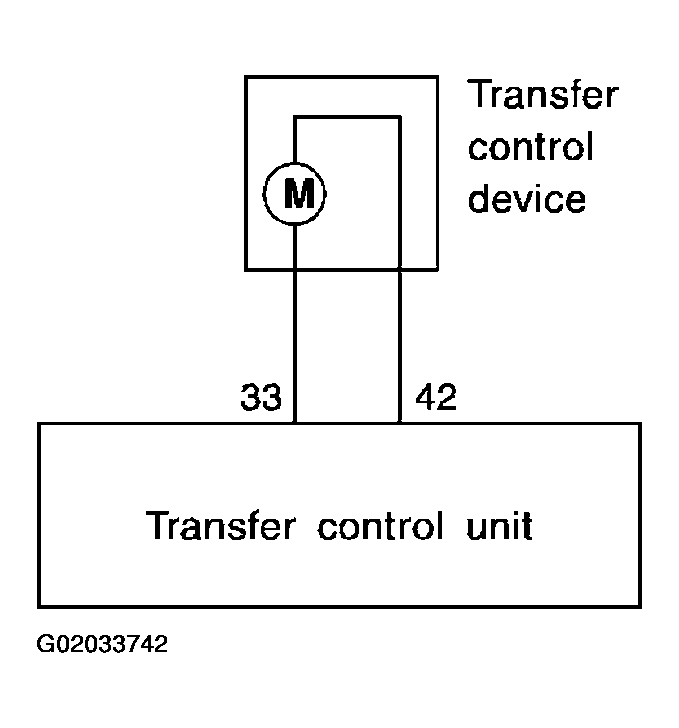

CHECK HARNESS CONTINUITY BETWEEN TRANSFER CONTROL UNIT AND TRANSFER CONTROL DEVICE
OK or NG
1. OK: GO TO 7.
2. NG: Repair and replace harness connector between transfer control unit and transfer control device.
PERFORM SELF-DIAGNOSIS AGAIN
After driving for a while, perform self-diagnosis again. Refer to "TROUBLE DIAGNOSIS WITHOUT CONSULT-II ".

OK or NG
1. OK: INSPECTION END
2. NG:
  1. Perform transfer control unit/output signal inspection. Refer to "TRANSFER CONTROL UNIT INSPECTION TABLE ", "TROUBLE DIAGNOSIS - GENERAL DESCRIPTION".
  2. If NG, recheck transfer control unit pin terminals for damage or loose connection with harness connector.
