Center Case: Inspection: Mainshaft

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check surfaces which contact sun gear, clutch drum, clutch hub, press flange, clutch piston, each bearing, etc. for damage, peel, partial wear, dents, bending, or other abnormal damage. If any is found, replace with new one.

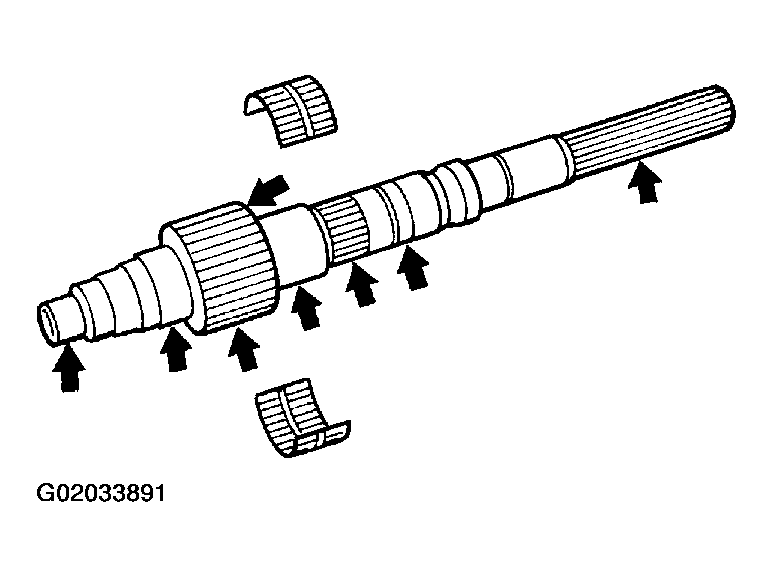

Fig 1: Inspecting Main Shaft Components For Damage
Courtesy of NISSAN MOTOR CO., U.S.A.
