Removal And Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Tighten bolts securing transfer.
Bolt length: 45 mm (1.77 in)

Tightening torque:

: 31 - 42 N.m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)

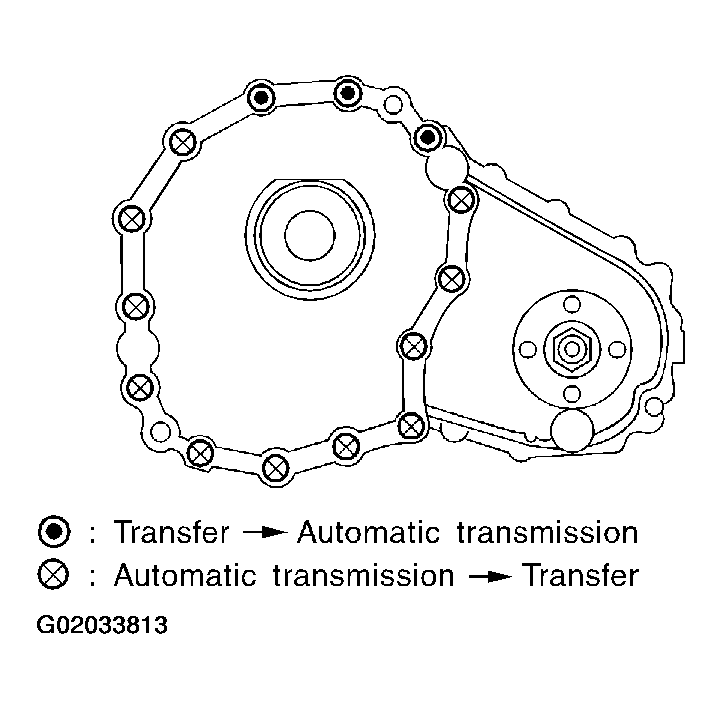

Fig 1: Tightening Transfer Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
