Transfer Motor: Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply petroleum jelly or ATF to O-ring.
  2. Align width across flat-notch with oil pump groove, and install transfer motor.
  3. Tighten bolts.

    : 41 - 48 N.m (4.2 - 4.9 kg-m, 30 - 35 ft-lb)

  4. Install breather pipe to transfer motor.
  5. Connect transfer motor harness connector.

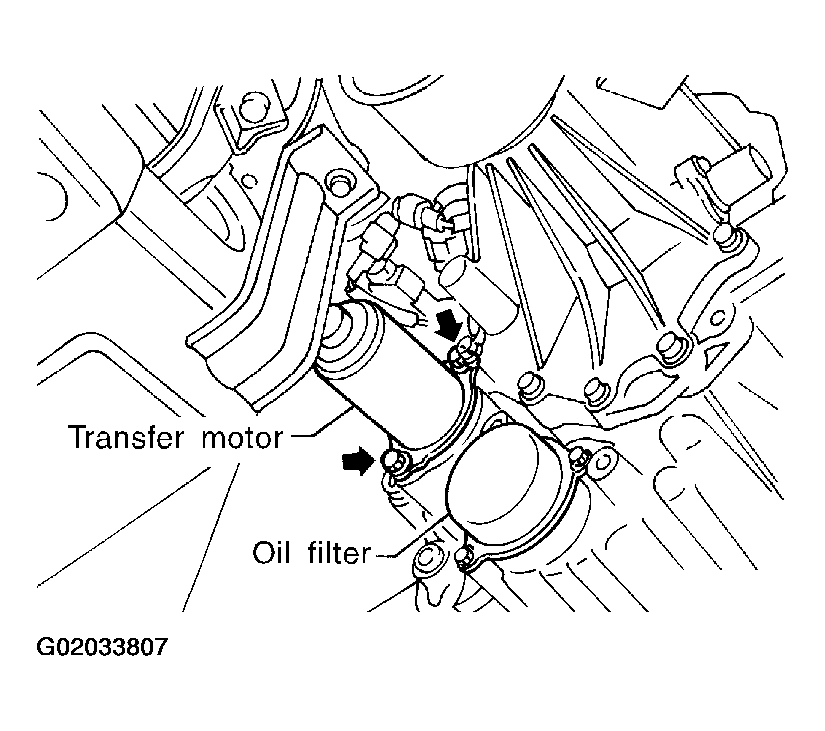

    Fig 1: Disconnecting Transfer Motor Harness Connector
    G02033807Courtesy of NISSAN MOTOR CO., U.S.A.
