Shift Shaft Oil Seal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front propeller shaft. Refer to "FRONT PROPELLER SHAFT ".
  2. Remove companion flange. Refer to "FRONT CASE OIL SEAL ".
  3. Remove actuator lever from transfer outer shift lever. Then remove outer shift lever.

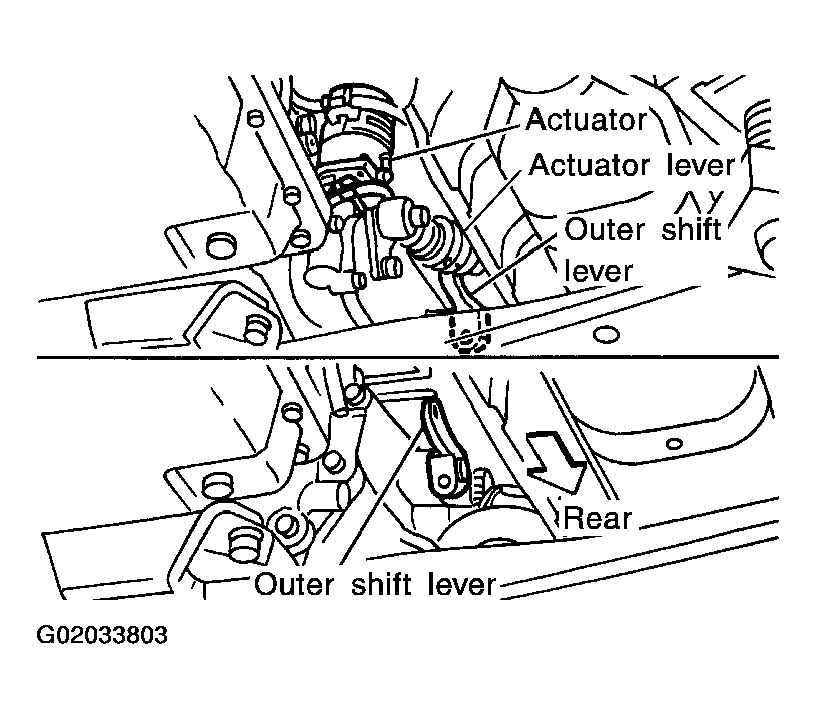

    Fig 1: Remove Actuator Lever And Outer Shift Lever
    G02033803Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove shift shaft oil seal.
    • Be careful not to damage cross shaft.

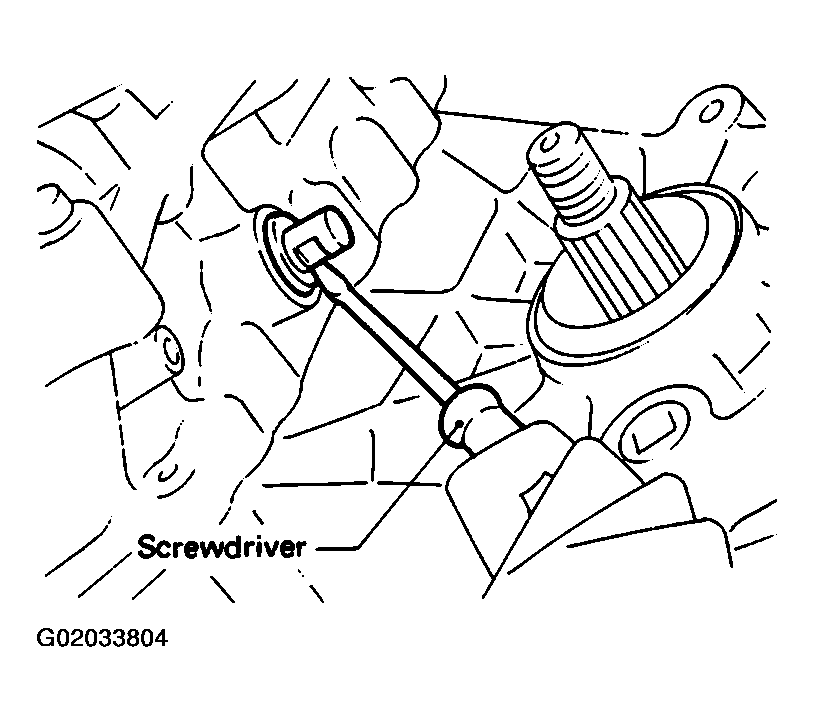

      Fig 2: Removing Shift Shaft Oil Seal
      G02033804Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install shift shaft oil seal.
    • Before installing, apply multi-purpose grease to seal lip.
  6. Install transfer control linkage.
  7. Install companion flange. Refer to "FRONT CASE OIL SEAL ".
  8. Install front propeller shaft.

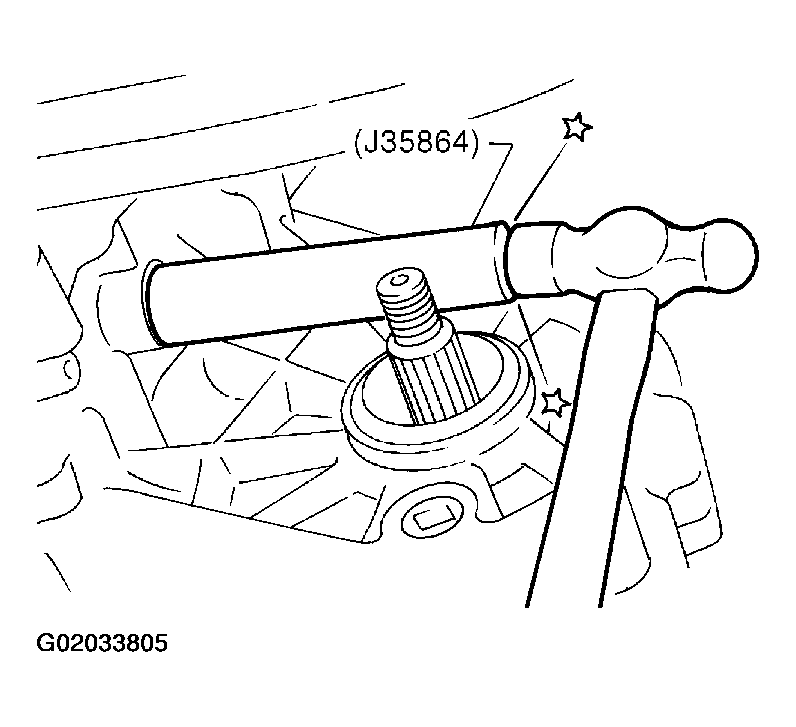

    Fig 3: Installing Shift Shaft Oil Seal
    G02033805Courtesy of NISSAN MOTOR CO., U.S.A.
