CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to "OFF" position.

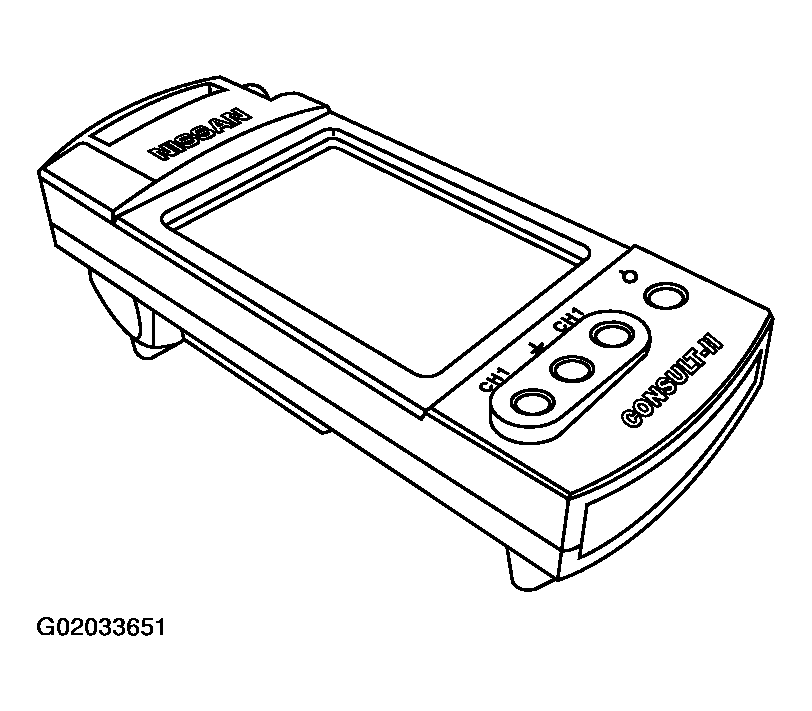

Fig 1: Identifying CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector which is located in instrument lower panel on driver side.

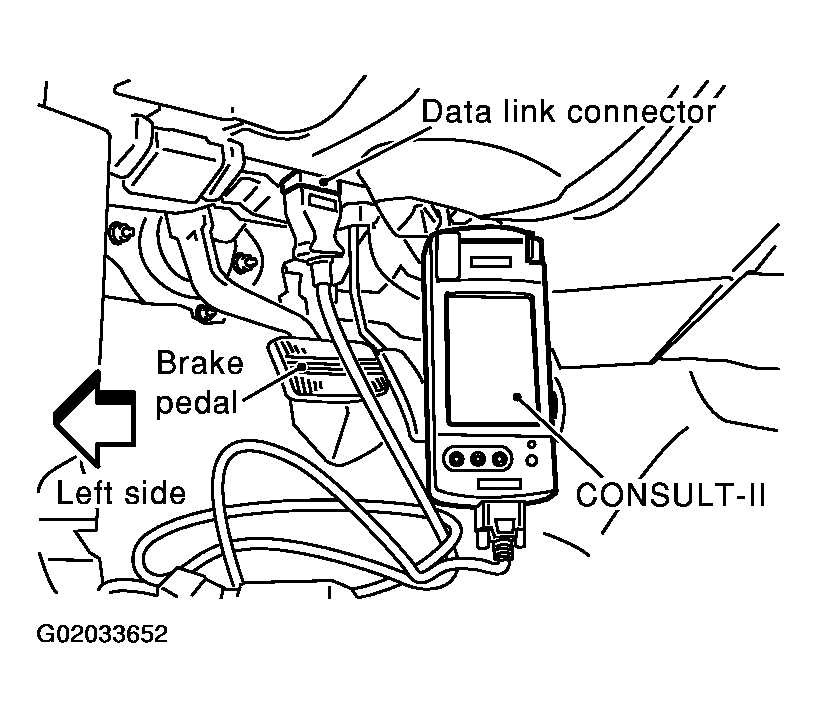

Fig 2: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
On CONSULT-II screen, touch "START (NISSAN BASED VHCL)".

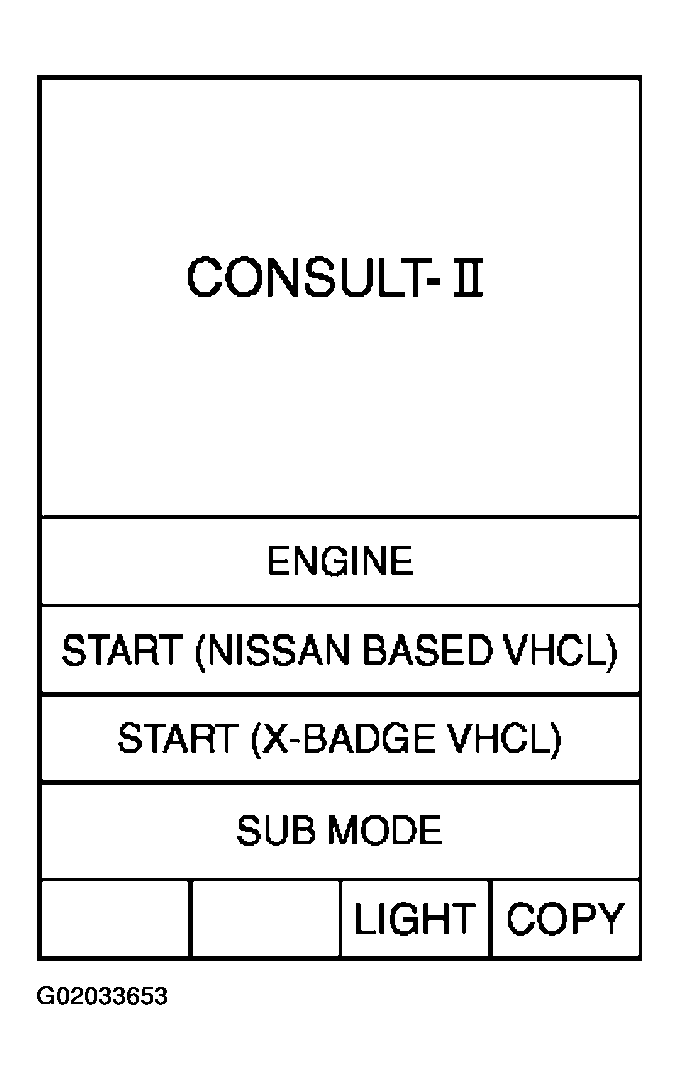

Fig 3: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ALL MODE AWD/4WD" on SELECT SYSTEM screen.

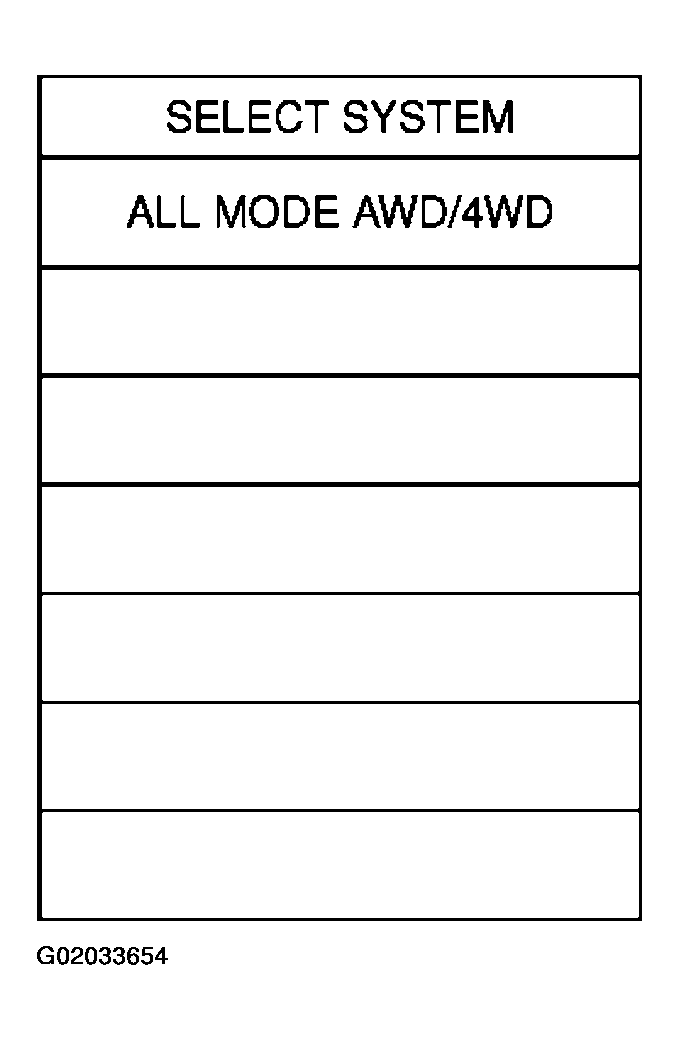

Fig 4: CONSULT-II Display - Touch "ALL MODE AWD/4WD"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF-DIAG RESULTS" on SELECT DIAG MODE screen.

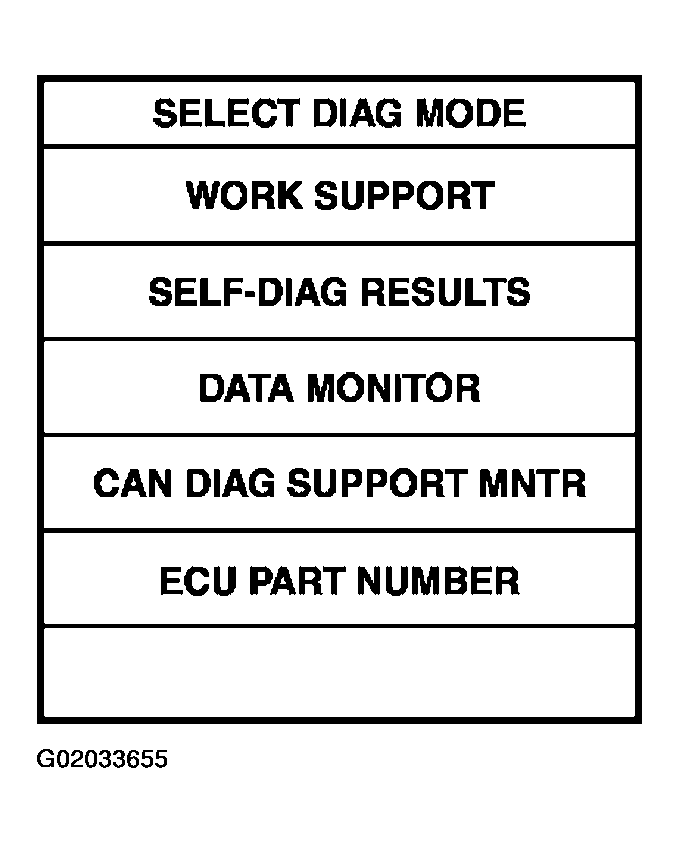

Fig 5: CONSULT-II Display - Touch "SELF-DIAG RESULTS"
Courtesy of NISSAN MOTOR CO., U.S.A.
Self-diagnostic results are displayed.

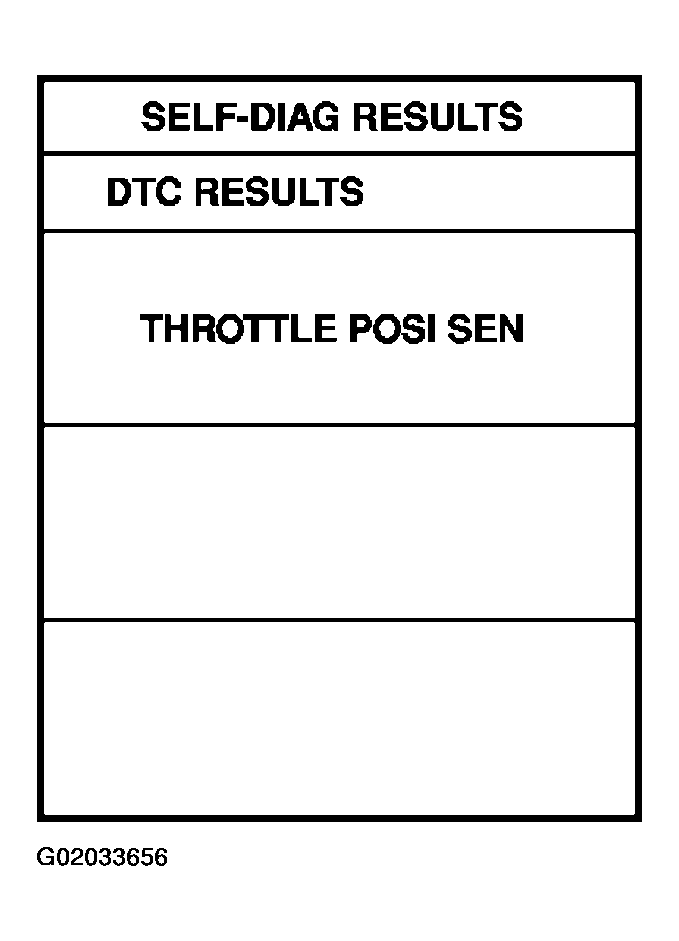

Fig 6: CONSULT-II Self-Diagnostic Result Display
Courtesy of NISSAN MOTOR CO., U.S.A.
