WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

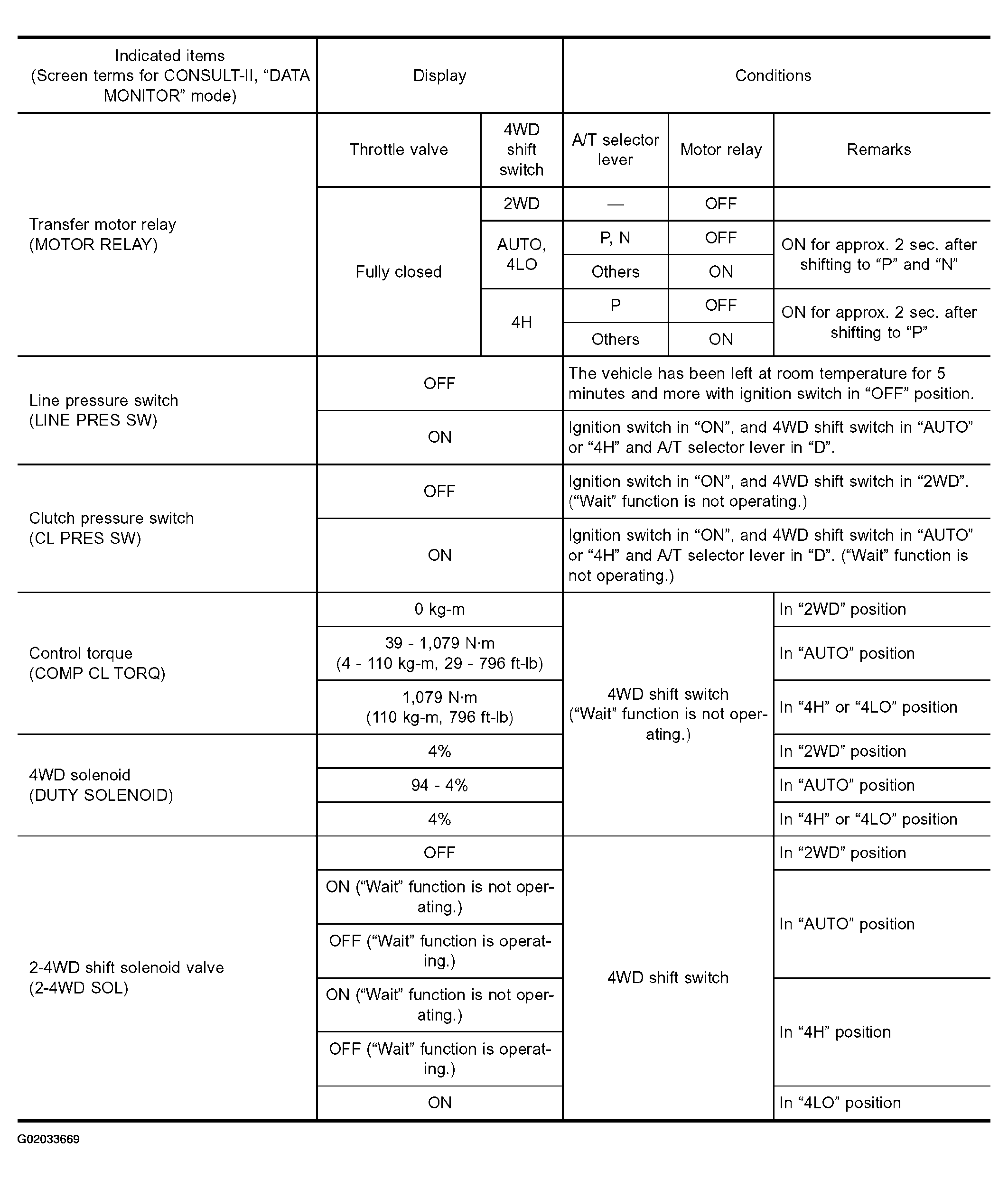

Fig 1: Reference Value Chart (Data Monitor Mode)(1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

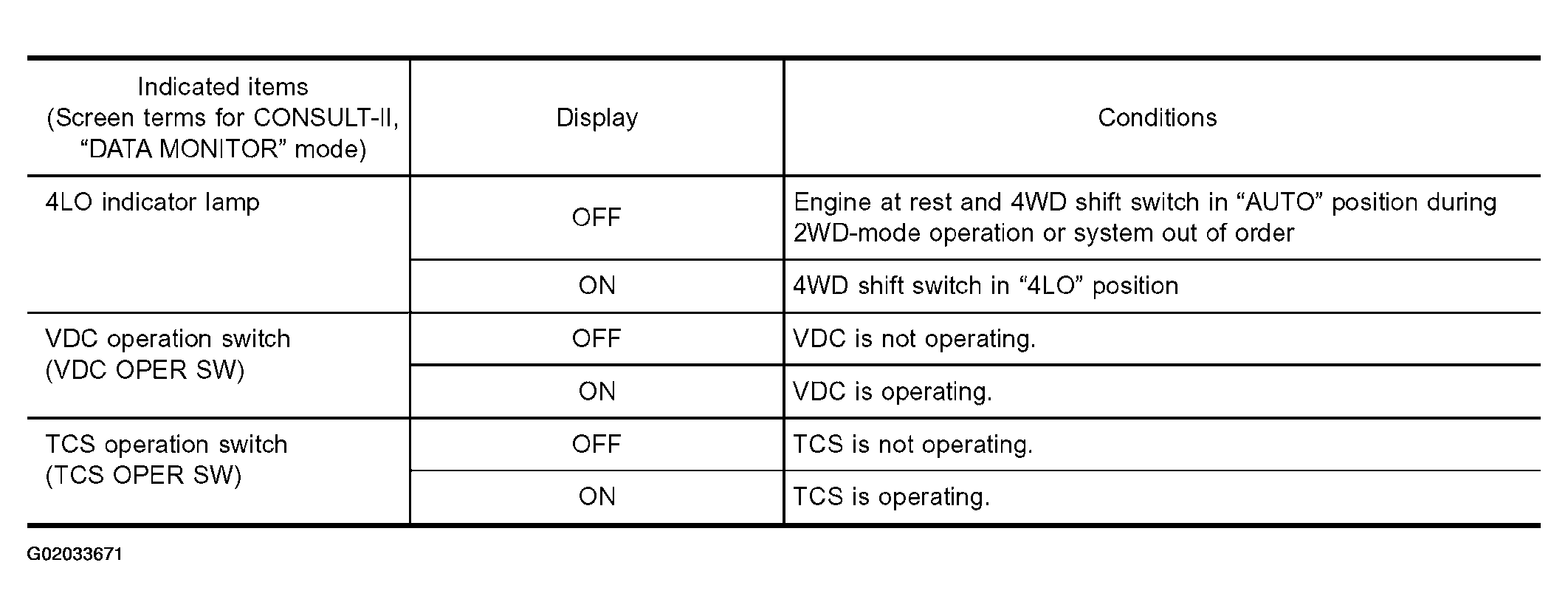

Fig 2: Reference Value Chart (Data Monitor Mode)(2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

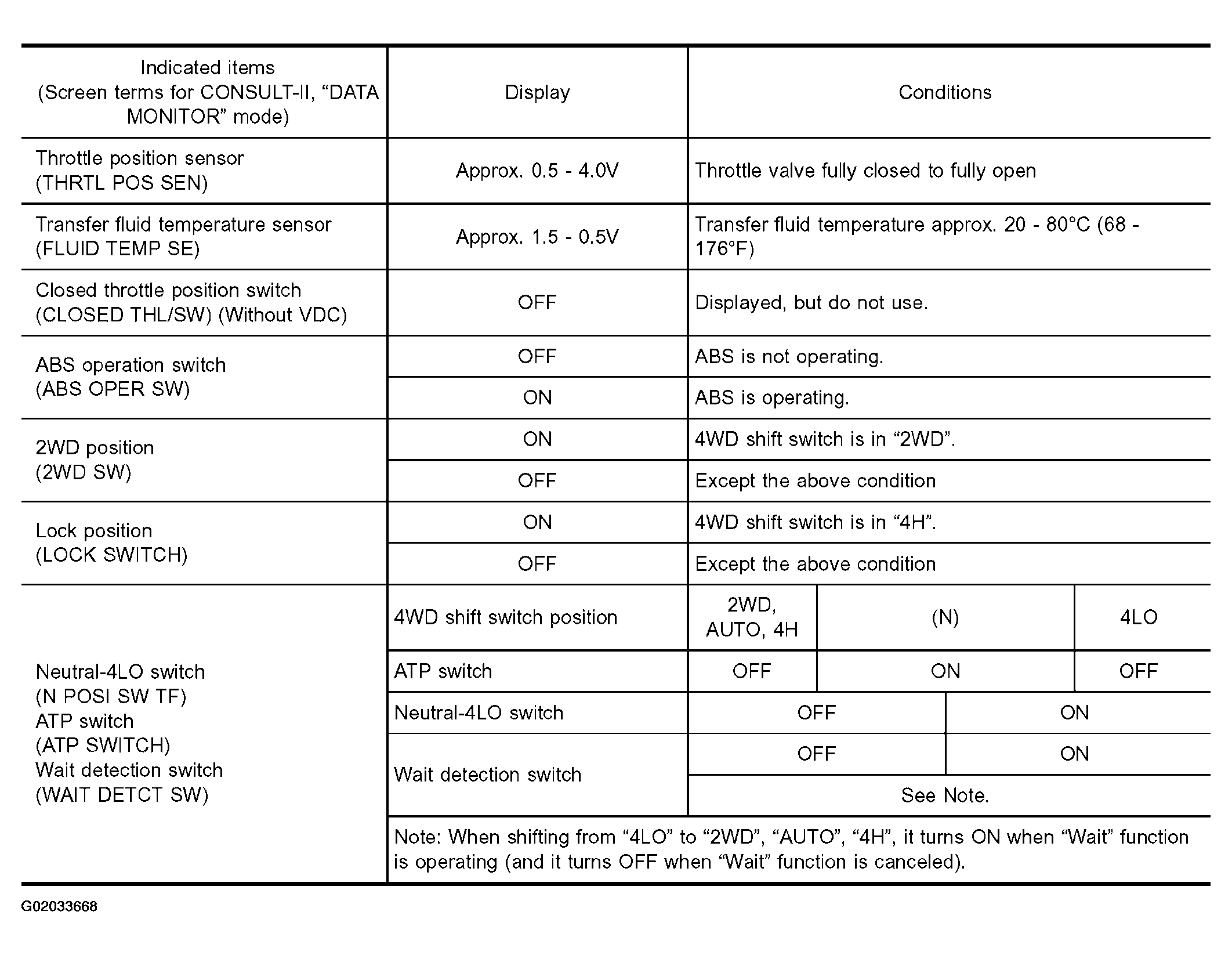

Fig 3: Reference Value Chart (Data Monitor Mode)(3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

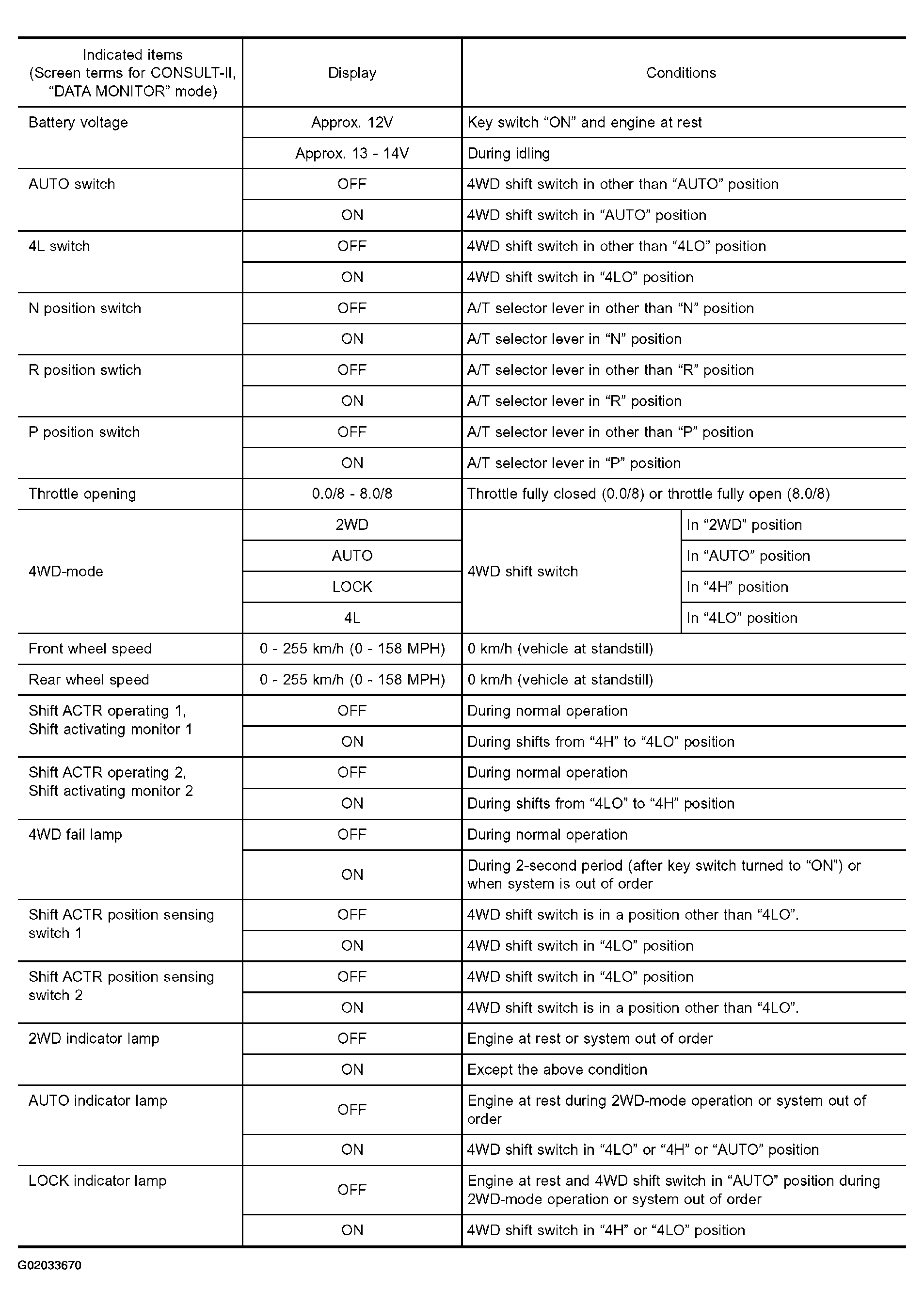

Fig 4: Reference Value Chart (Data Monitor Mode)(4 Of 4)
