CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to "OFF" position.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.
  3. Turn ignition switch to "ON" position.
  4. Touch "START".

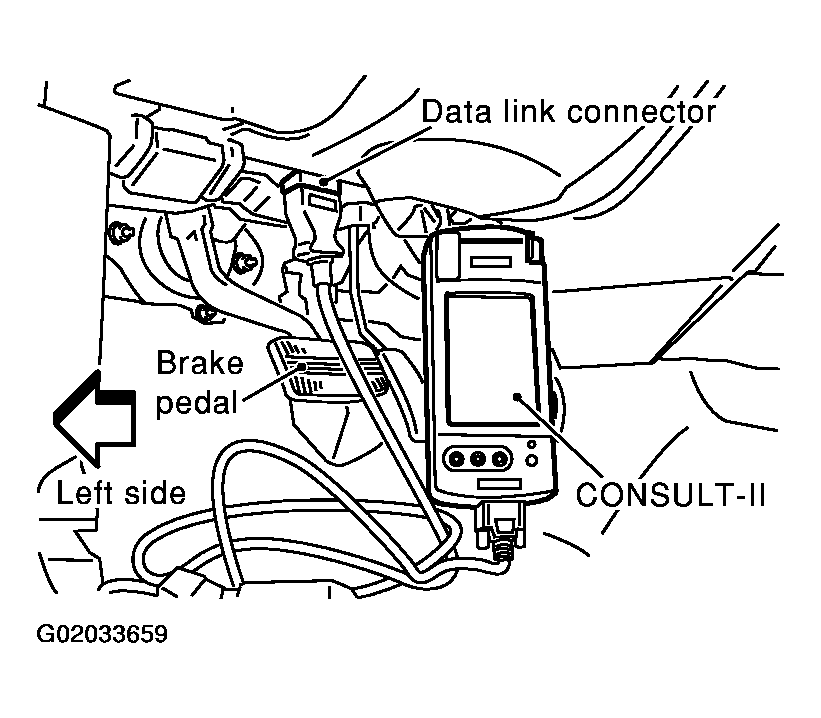

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
    G02033659Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ALL MODE AWD/4WD".

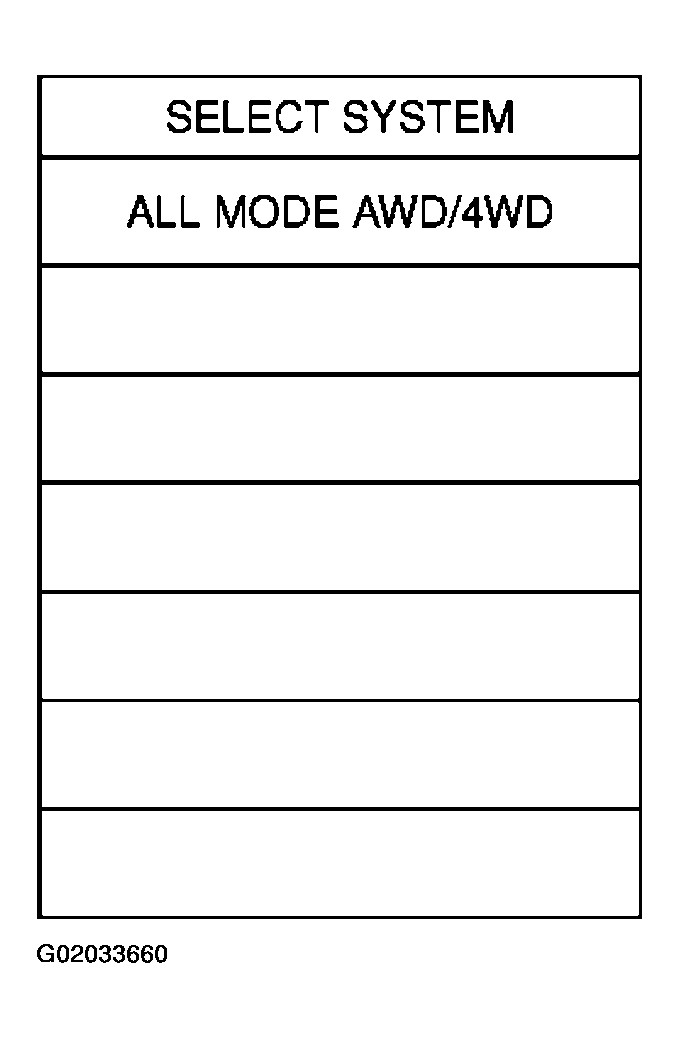

    Fig 2: CONSULT-II Display - Touch "ALL MODE AWD/4WD"
    G02033660Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

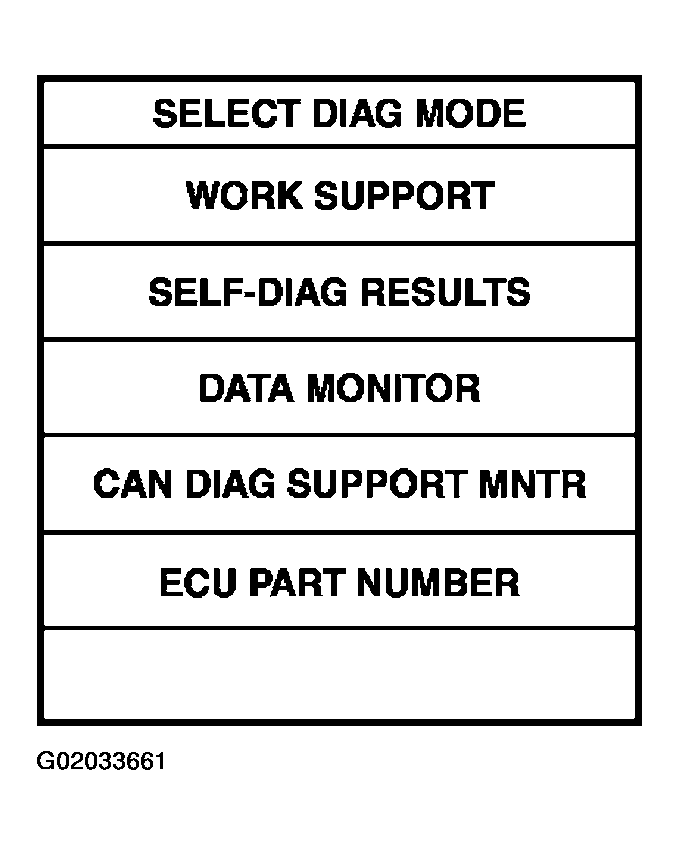

    Fig 3: CONSULT-II Display - Touch "DATA MONITOR"
    G02033661Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "ECU INPUT SIGNALS" or "MAIN SIGNALS".

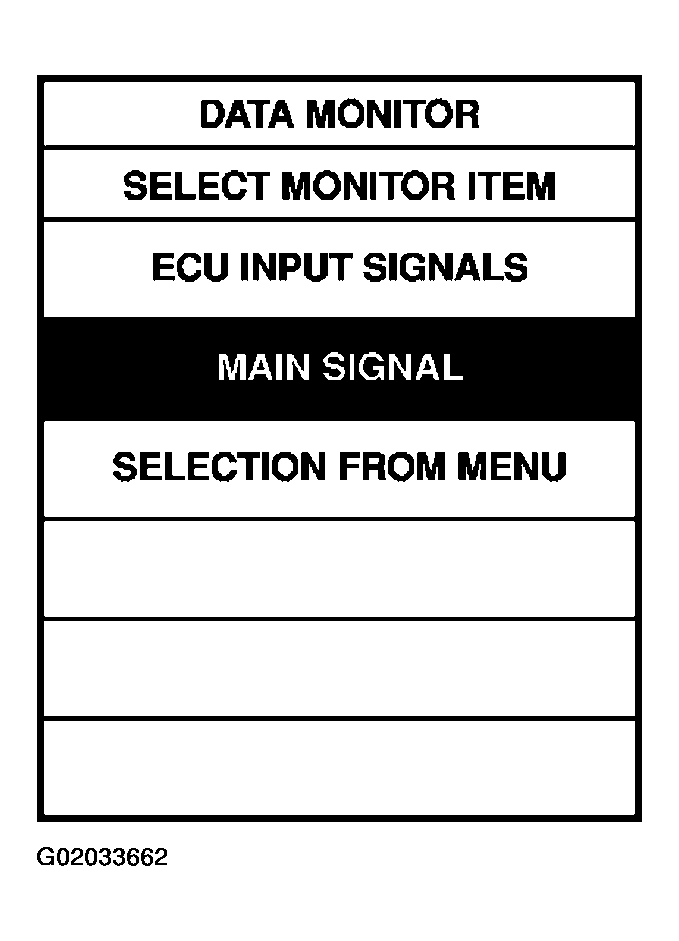

    Fig 4: CONSULT-II Display - Touch "MAIN SIGNAL"
    G02033662Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Select "Numerical Display", "Bar Chart Display" or "Line Graph Display".
  9. Touch "SETTING" to set record conditions.
  10. Touch "AUTO TRIG" or "MANU TRIG".

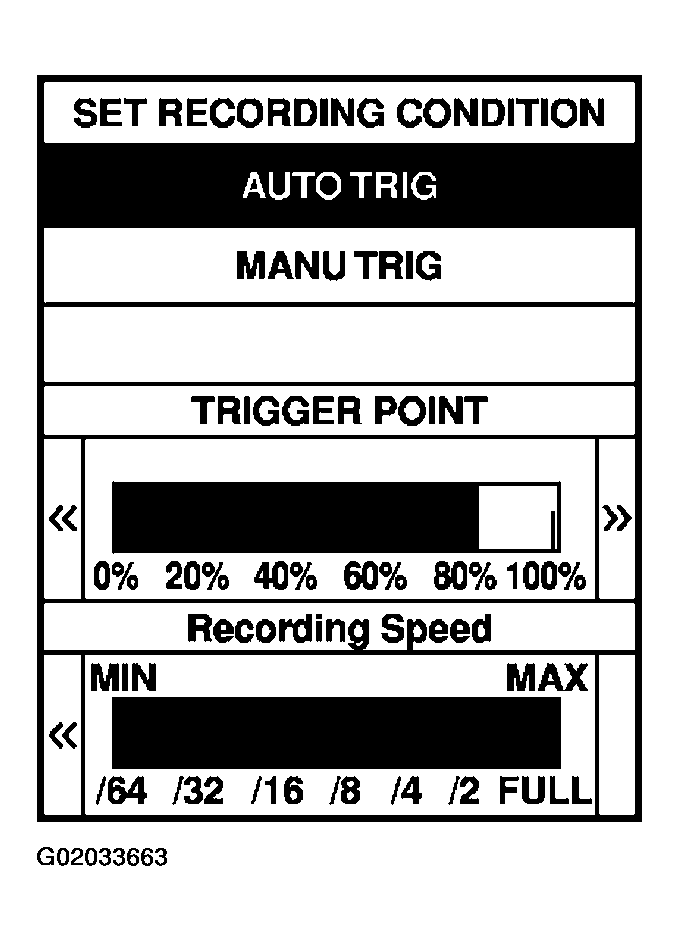

    Fig 5: CONSULT-II Display - Touch "AUTO TRIG"
    G02033663Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Return to "SELECT MONITOR ITEM" on "DATA MONITOR" screen and touch "START".
  12. Monitored data are displayed.

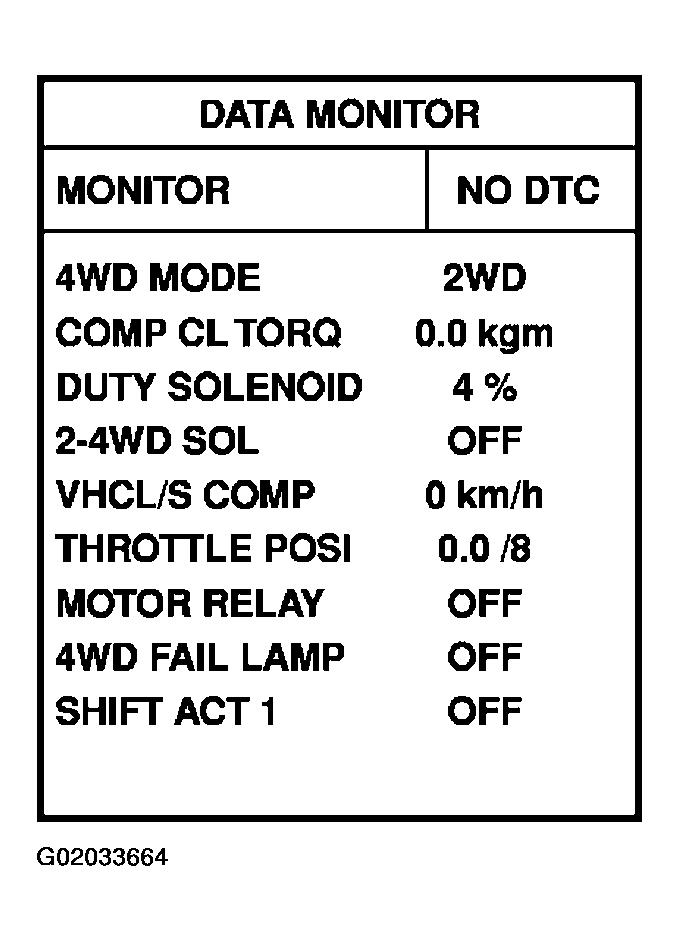

    Fig 6: CONSULT-II Data Monitor Display
    G02033664Courtesy of NISSAN MOTOR CO., U.S.A.
