Clutch Force Release Limit Adjustment

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

1.2 kg-m: Tight corner braking symptom is alleviated. However, vibration may occur when accelerating on a low mu road (icy road, etc.).

0.3 kg-m: Initial set value

0.2 kg-m: Do not set to this value because the tight corner braking symptom will get worse.

Current CLUTCH FORCE RELEASE LIMIT value "0.3 kg-m" appears under "CONDITION SETTING" on CONSULT-II display.
Touch "1.2" on the display.

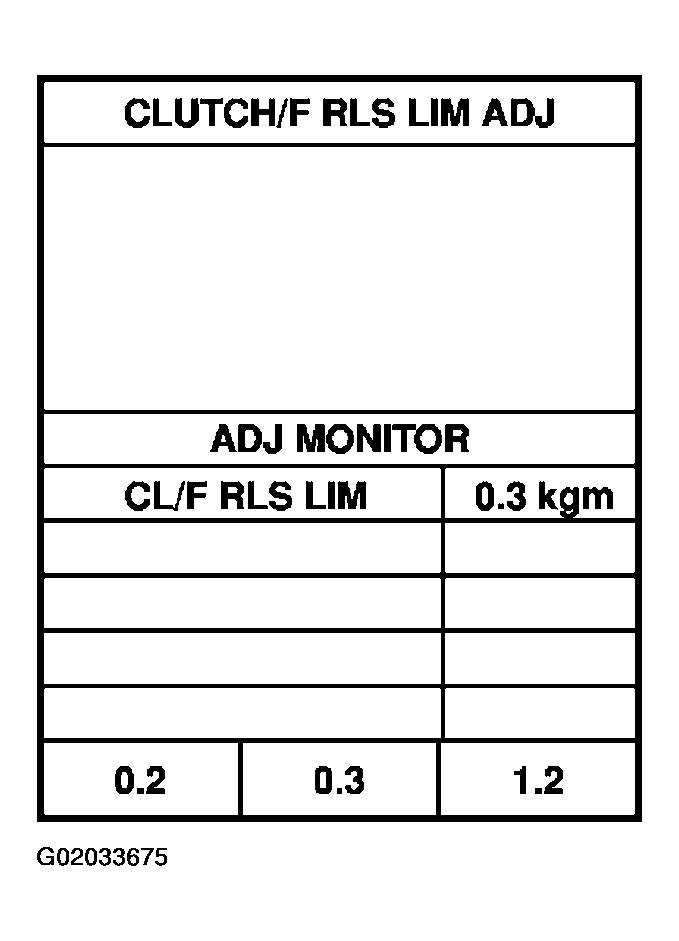

Fig 1: CONSULT-II Display - Touch "1.2"
Courtesy of NISSAN MOTOR CO., U.S.A.
Display changes to "NOW ADJUSTING" in a short time.

Fig 2: CONSULT-II Display - NOW ADJUSTING
Courtesy of NISSAN MOTOR CO., U.S.A.
When clutch force release limit value is set to "1.2 kg-m", current value "0.3 kg-m" shown on display will be replaced by "1.2 kg-m" and "ADJUSTING COMPLETE" will appear at the same time. Clutch force release limit value setting is now complete.

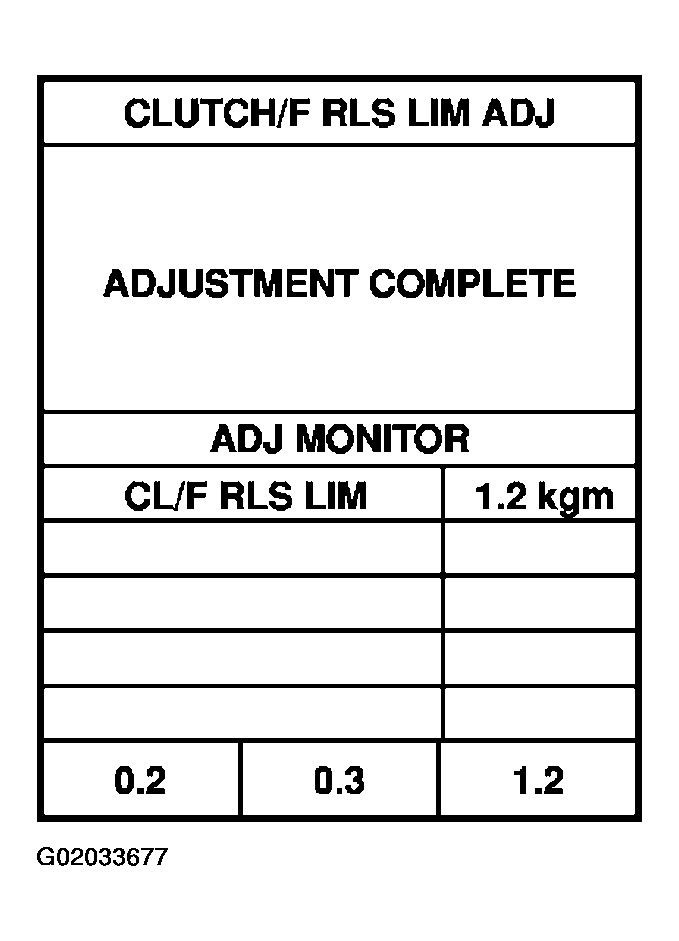

Fig 3: CONSULT-II Display - ADJUSTING COMPLETE
Courtesy of NISSAN MOTOR CO., U.S.A.
