CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to "OFF" position.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.
  3. Turn ignition switch to "ON" position.
  4. Touch "START".
  5. Touch "ALL MODE 4WD".

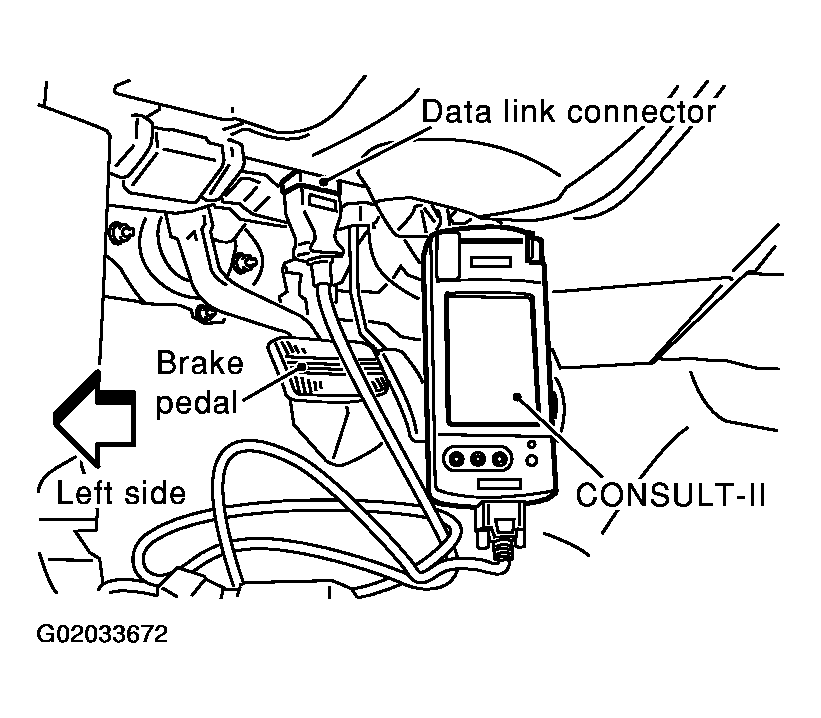

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
    G02033672Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "WORK SUPPORT".

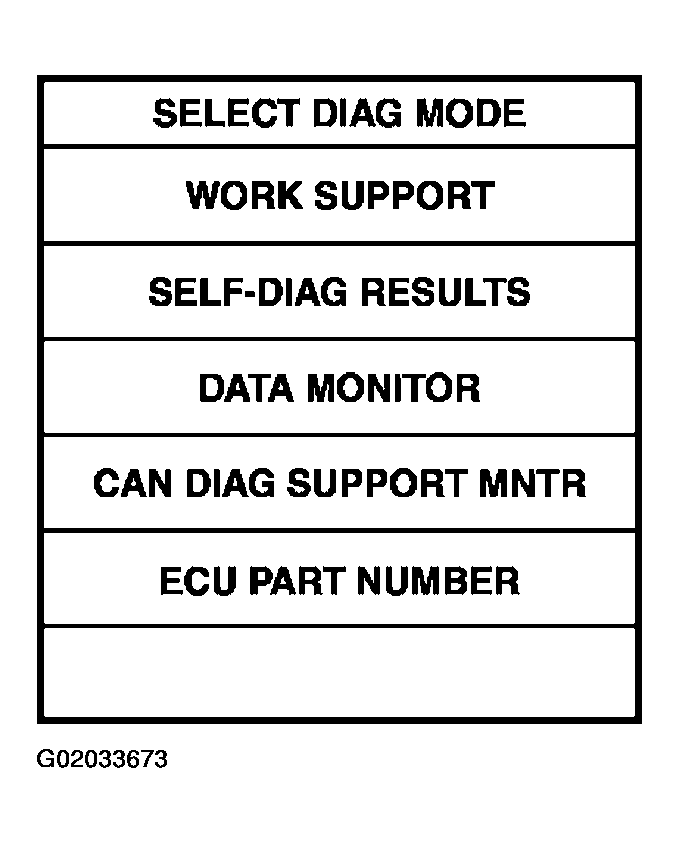

    Fig 2: CONSULT-II Display - Touch "WORK SUPPORT"
    G02033673Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select WORK ITEM by touching "CLUTCH/F RLS LIM ADJ".
    NOTE: "START TORQ OFFSET ADJ" is displayed, but the transfer does not have this function.

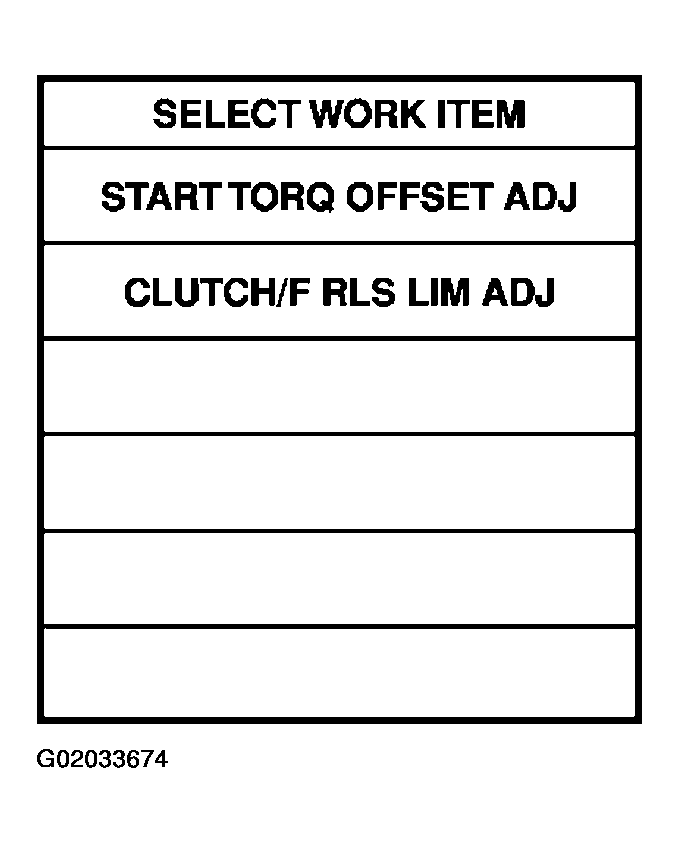

    Fig 3: CONSULT-II Display - Touch "CLUTCH/F RLS LIM ADJ"
    G02033674Courtesy of NISSAN MOTOR CO., U.S.A.
