Rear Case: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove neutral-4LO switch and ATP switch.
Remove bolts.

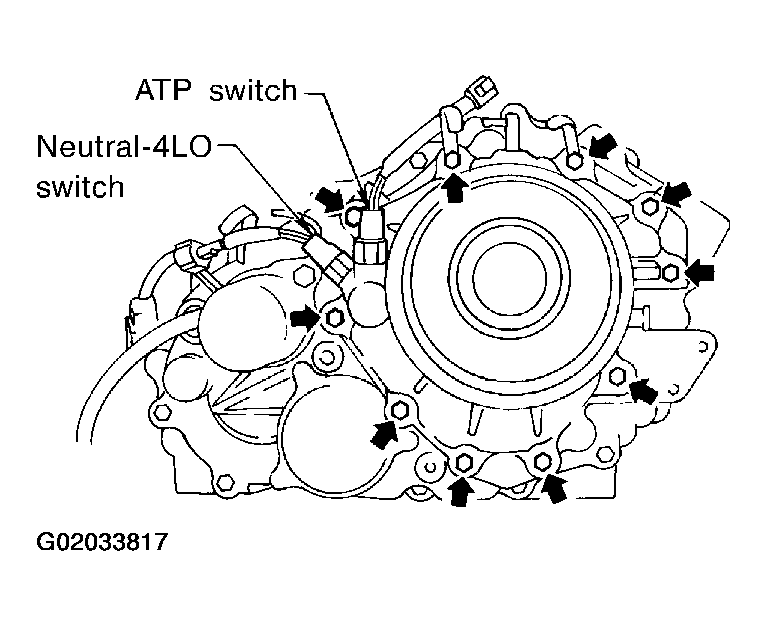

Fig 1: Removing Neutral-4LO Switch And ATP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear case from center case by tapping it lightly with a plastic hammer.

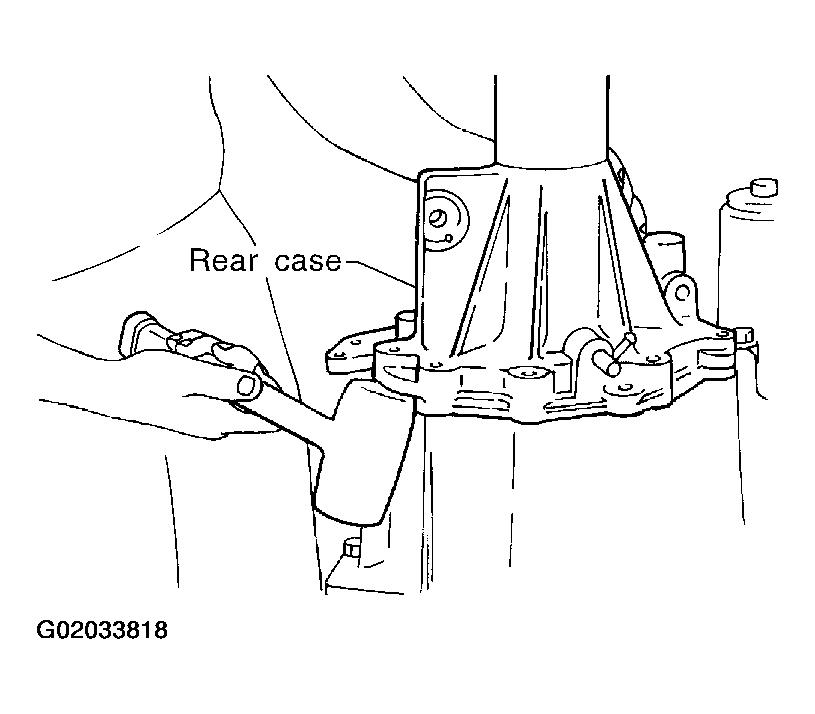

Fig 2: Removing Rear Case From Center Case
Courtesy of NISSAN MOTOR CO., U.S.A.
