Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CAN COMMUNICATION CIRCUIT

    With CONSULT-II

    1. Turn ignition switch to "ON" position. (Do not start engine.)
    2. Select "DATA MONITOR" mode for "ALL MODE 4WD" with CONSULT-II.
    3. The "CAN COMM CIRCUIT" is detected.

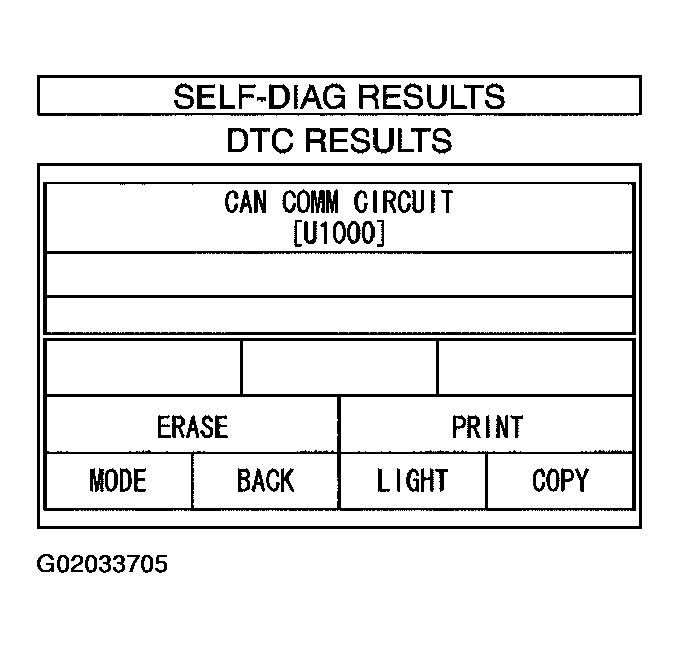

      4. Fig 1: Checking CAN Communication Circuit With CONSULT-II
      G02033705Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: Go to "CAN Communication Unit ".
    2. No: INSPECTION END
