Transfer Shift Relay (High & low)

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 3 and 4.

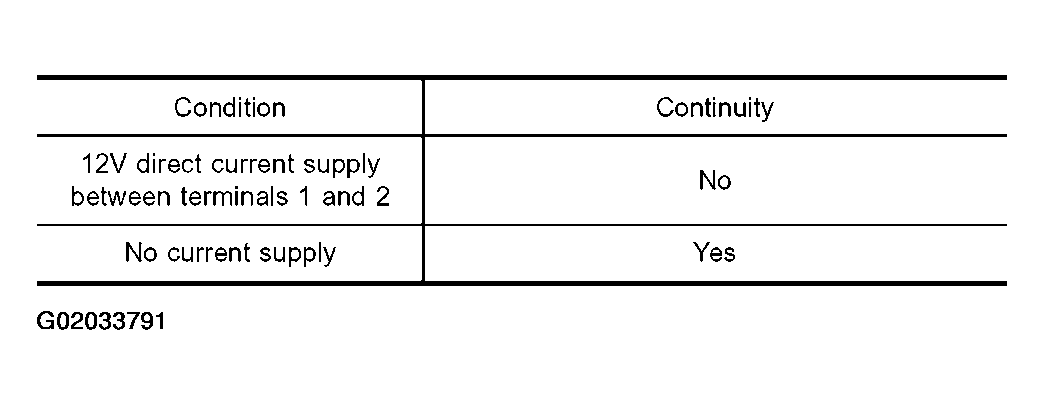

Fig 1: Transfer Shift Relay (High And Low) Continuity Specifications
G02033791Courtesy of NISSAN MOTOR CO., U.S.A.

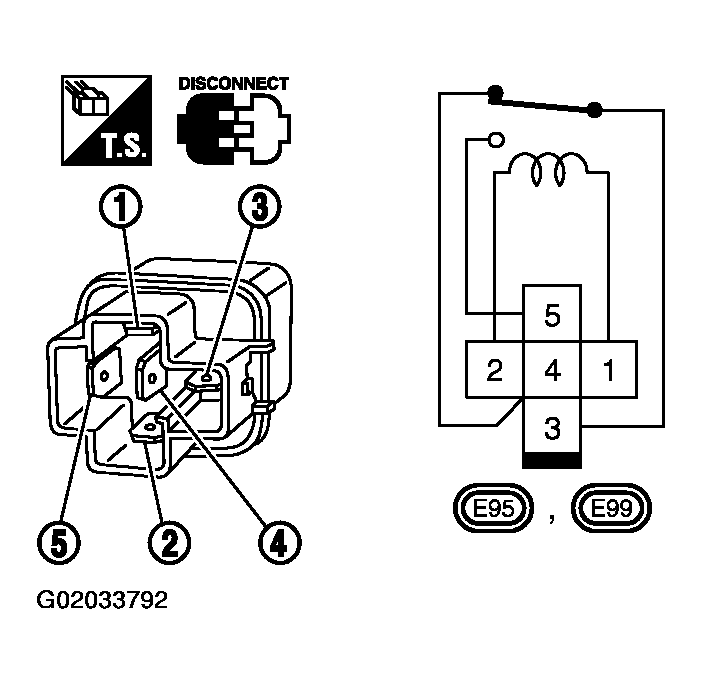

Fig 2: Checking Continuity Between Transfer Shift Relay (High And Low) Terminals
G02033792Courtesy of NISSAN MOTOR CO., U.S.A.
