4WD Solenoid Valve, Clutch Pressure Switch and Line Pressure Switch

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Measure resistance between terminals of transfer terminal cord assembly sub-harness connector located on rear-right of transfer unit.

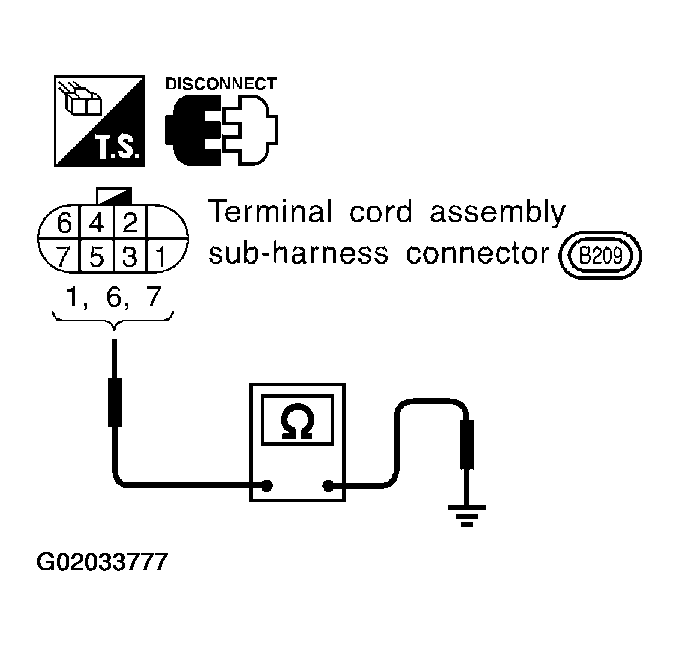

Fig 1: Measuring Resistance Between Transfer Terminal Cord Assembly Sub-Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

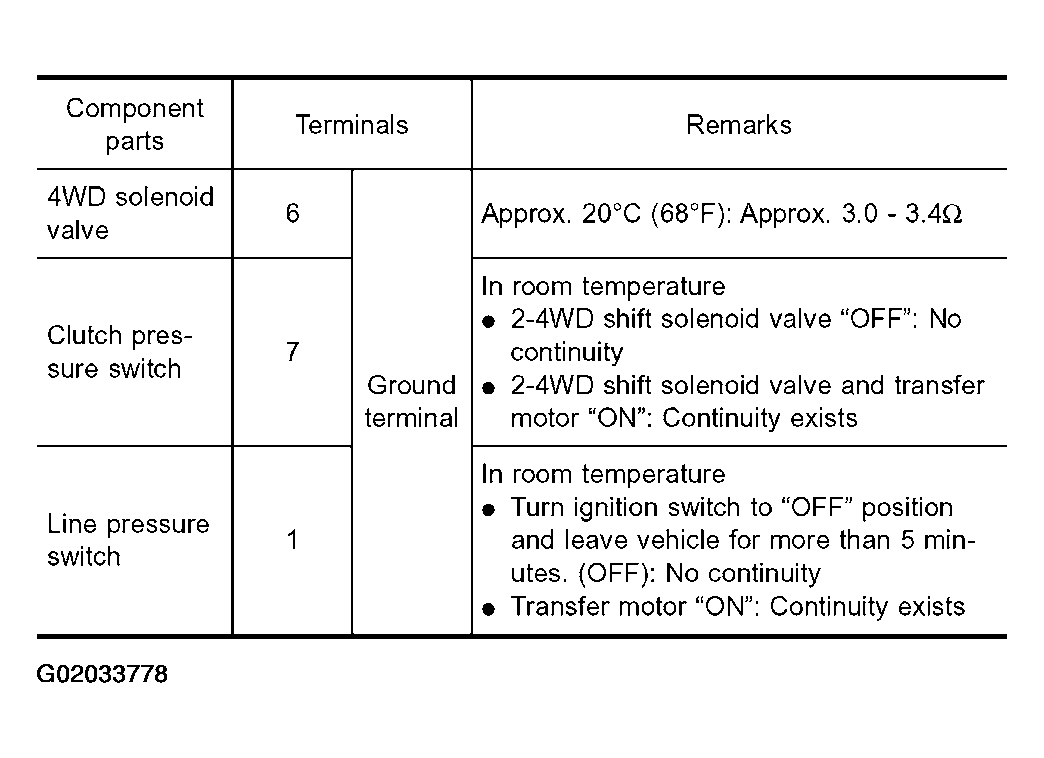

Fig 2: 4WD Solenoid Valve, Clutch Pressure Switch And Line Pressure Switch Terminal Resistance Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
