2-4WD Shift Solenoid Valve and Transfer Fluid Temperature Sensor
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Measure resistance between terminals of transfer terminal cord assembly sub-harness connector located on rear-right of transfer unit.

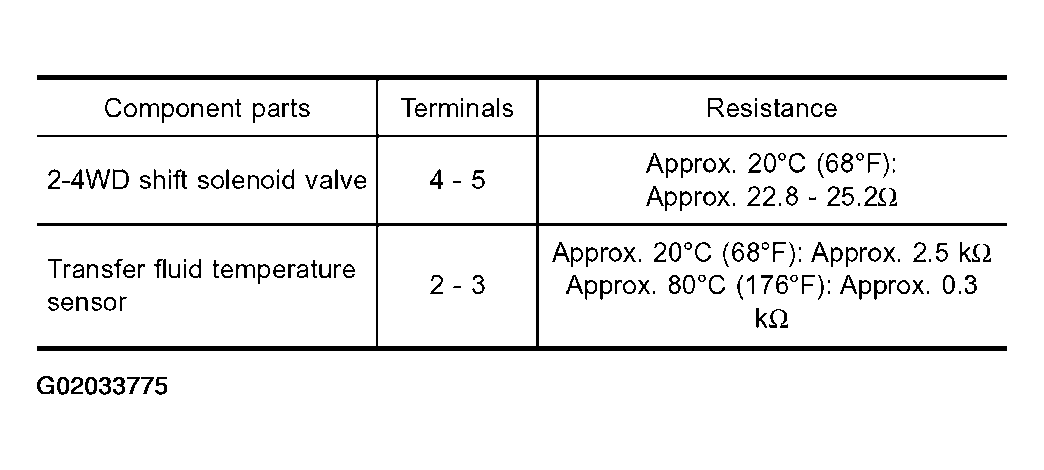

Fig 1: 2-4WD Shift Solenoid Valve And Transfer Fluid Temperature Sensor Terminal Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

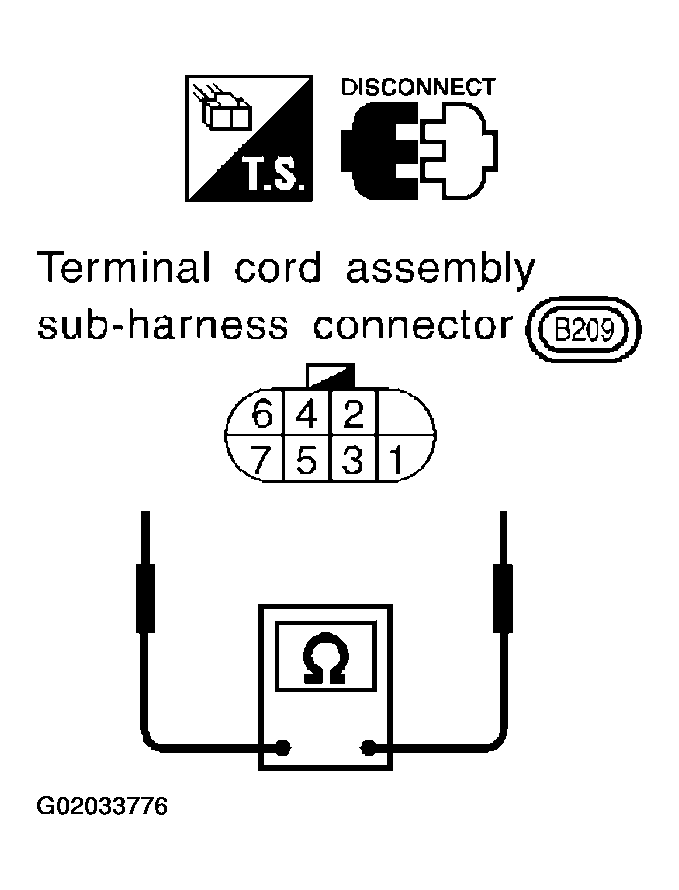

Fig 2: Measuring Resistance Between Transfer Terminal Cord Assembly Sub-Harness Connector Terminals
