Wiring Diagram - TF -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

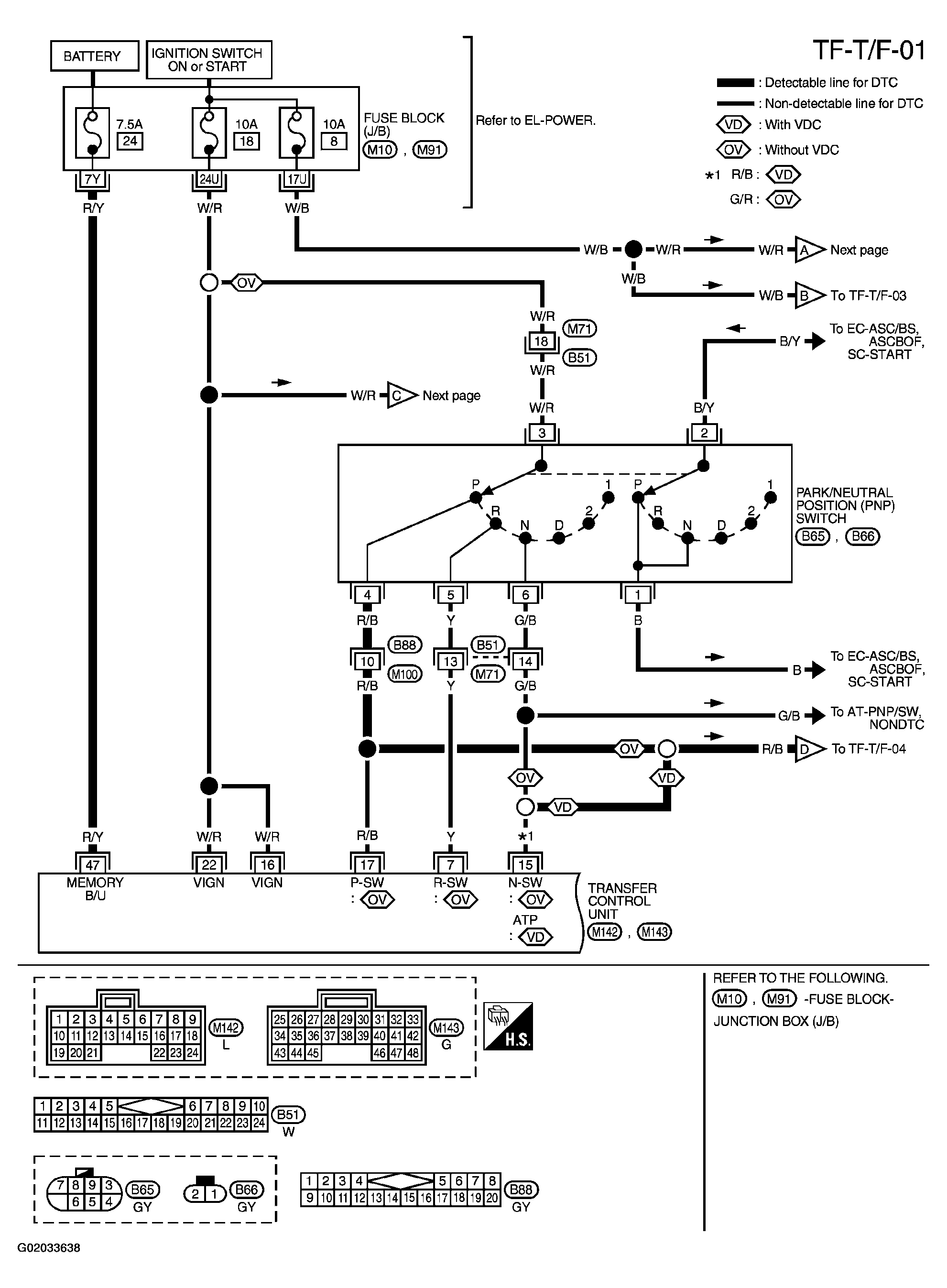

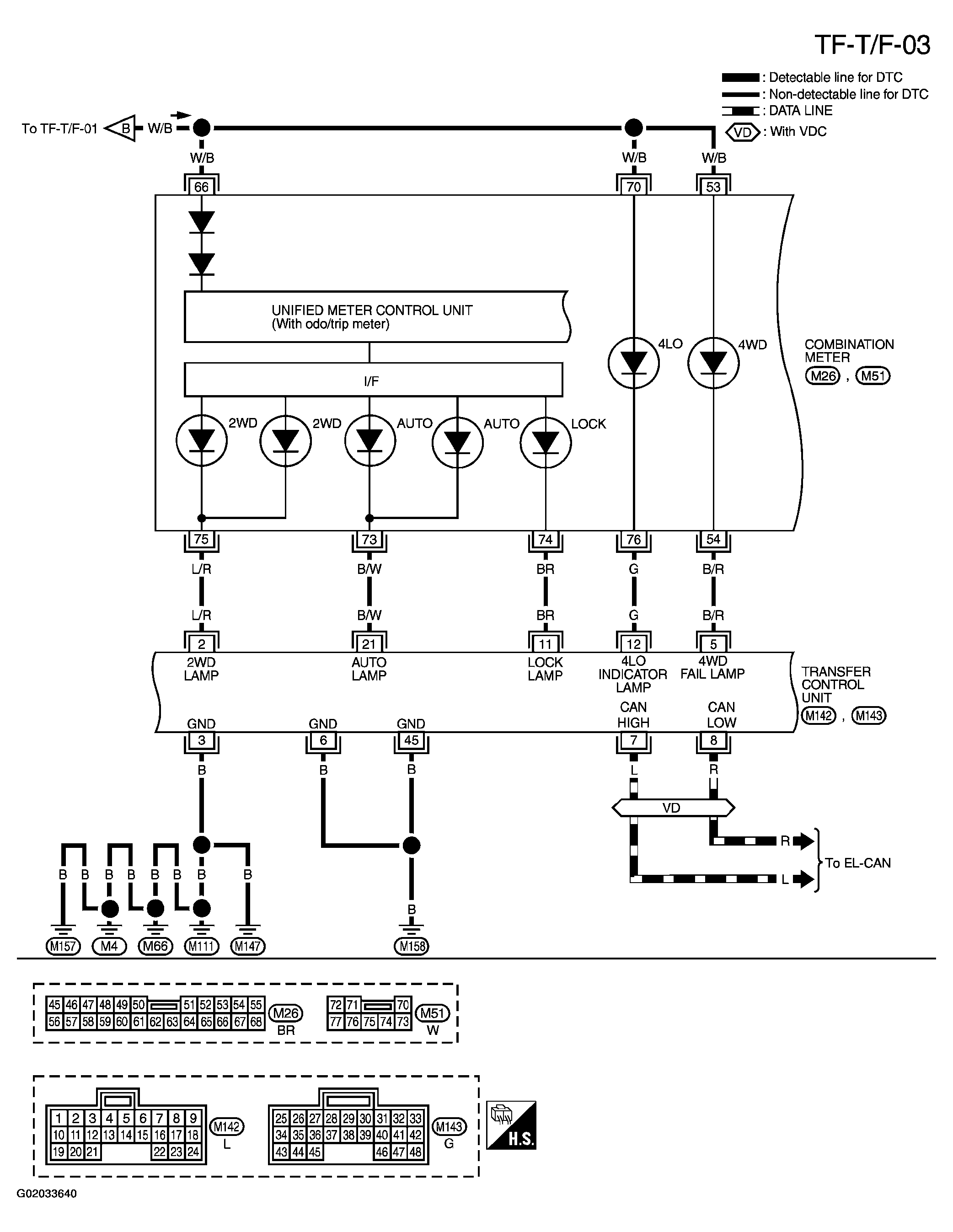

Fig 1: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

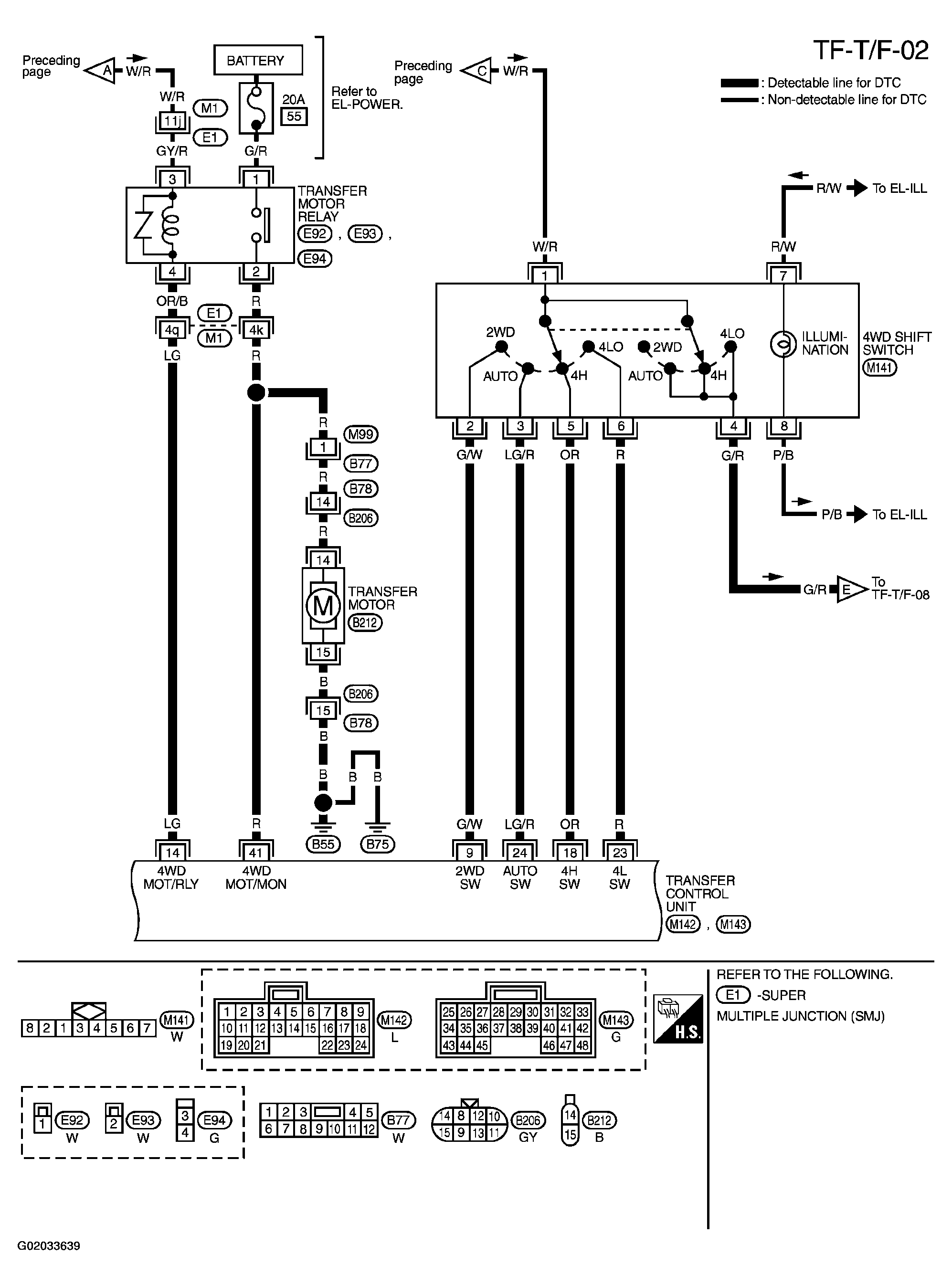

Fig 2: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

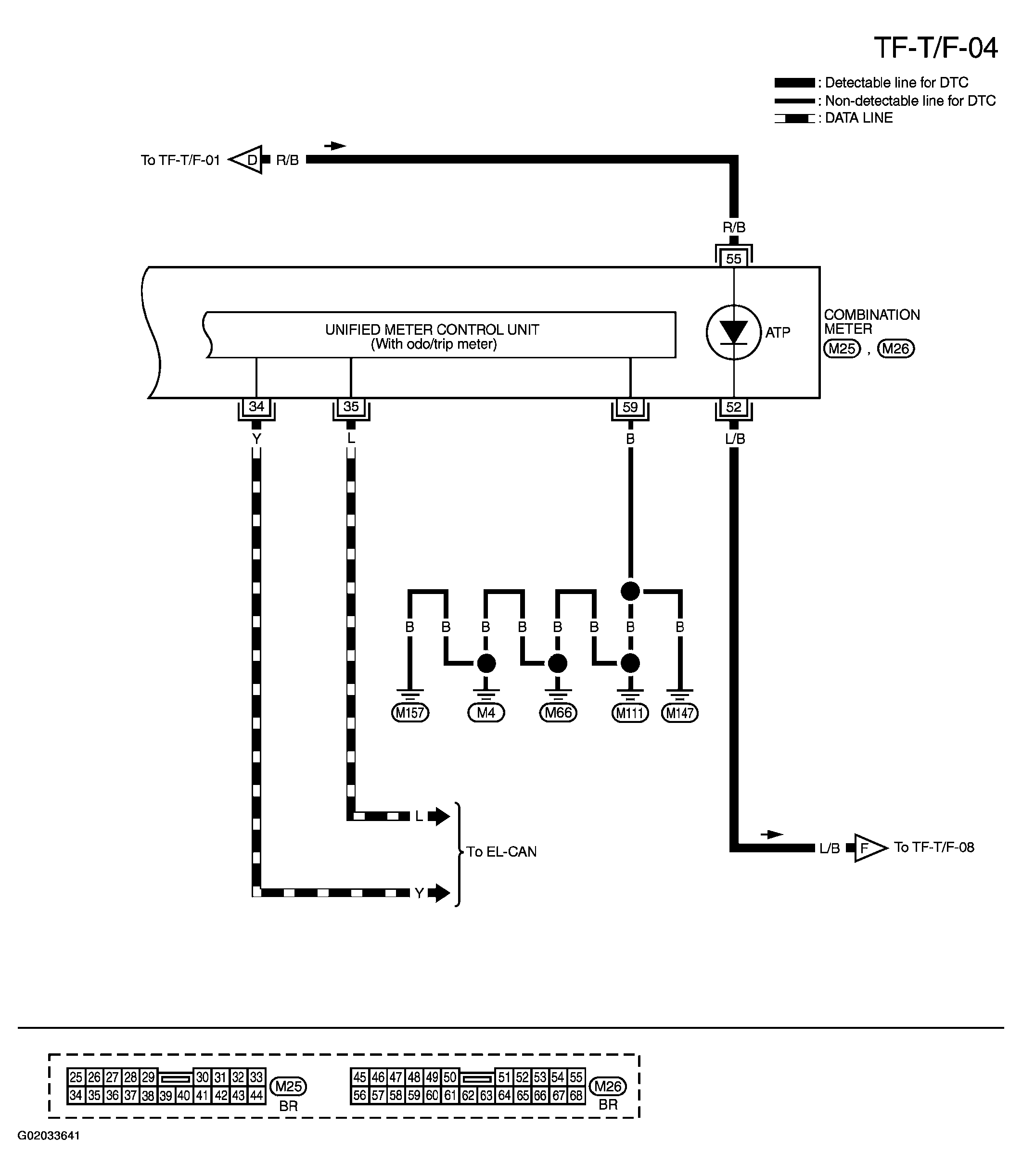

Fig 4: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

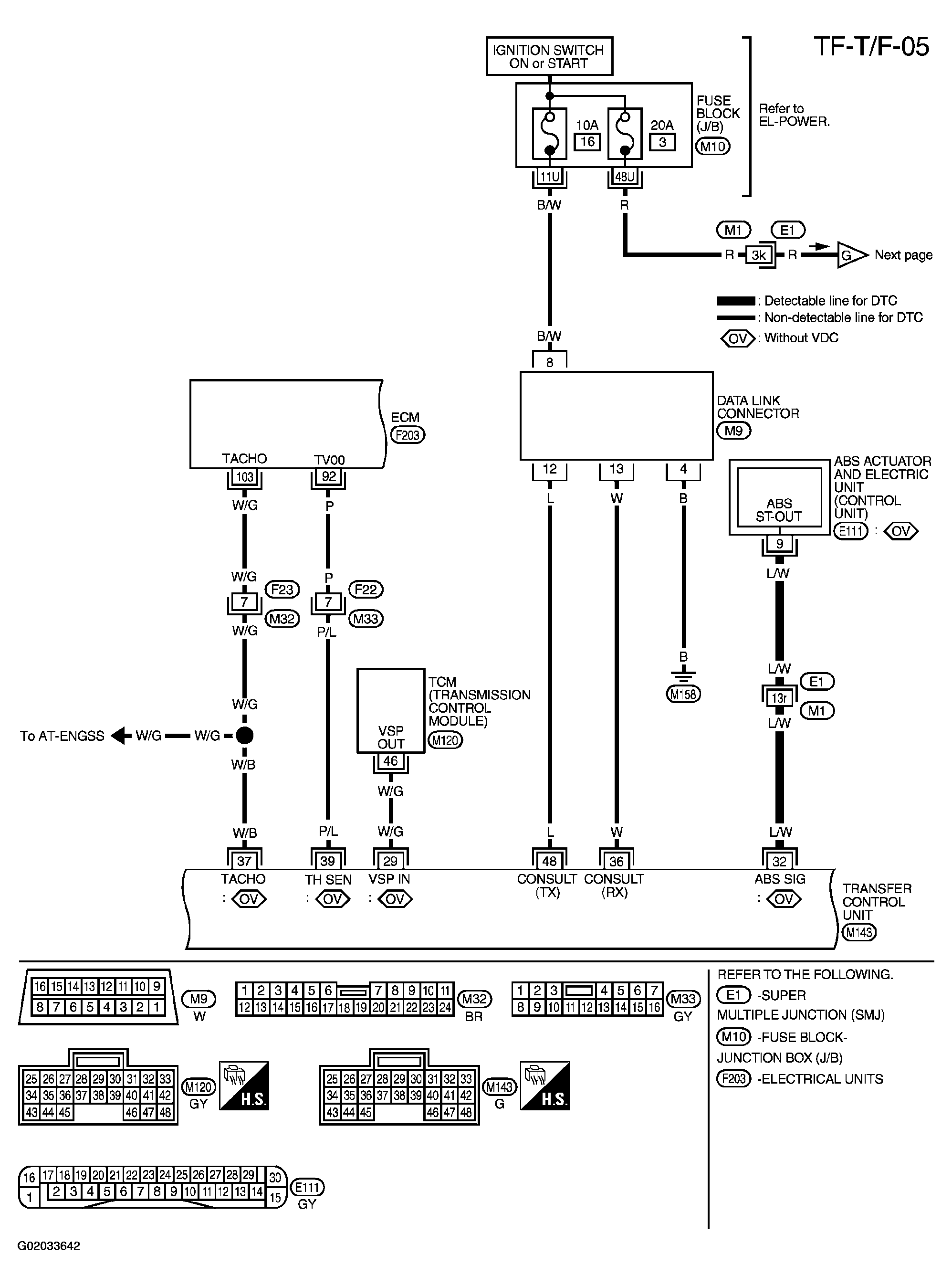

Fig 5: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

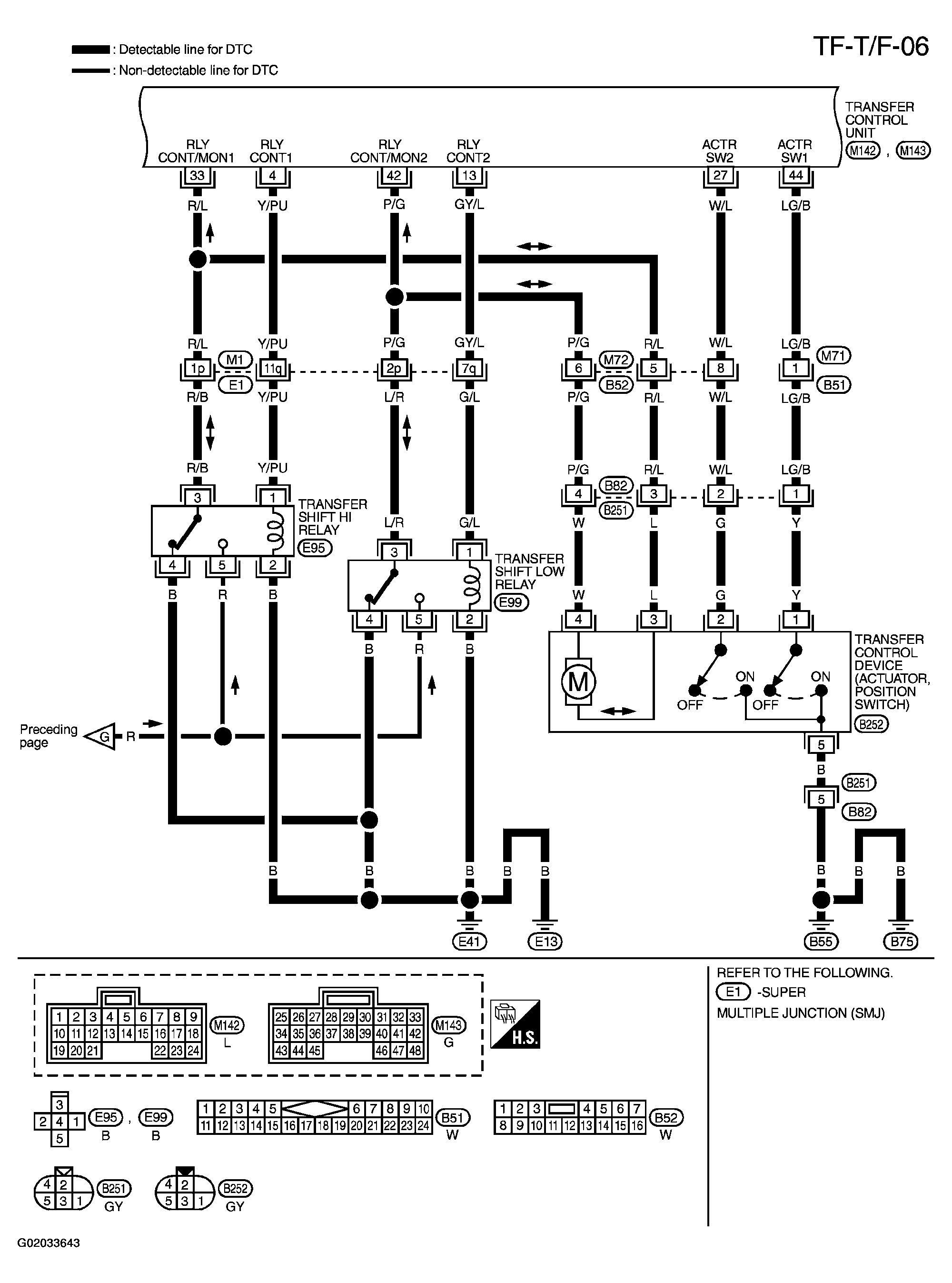

Fig 6: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

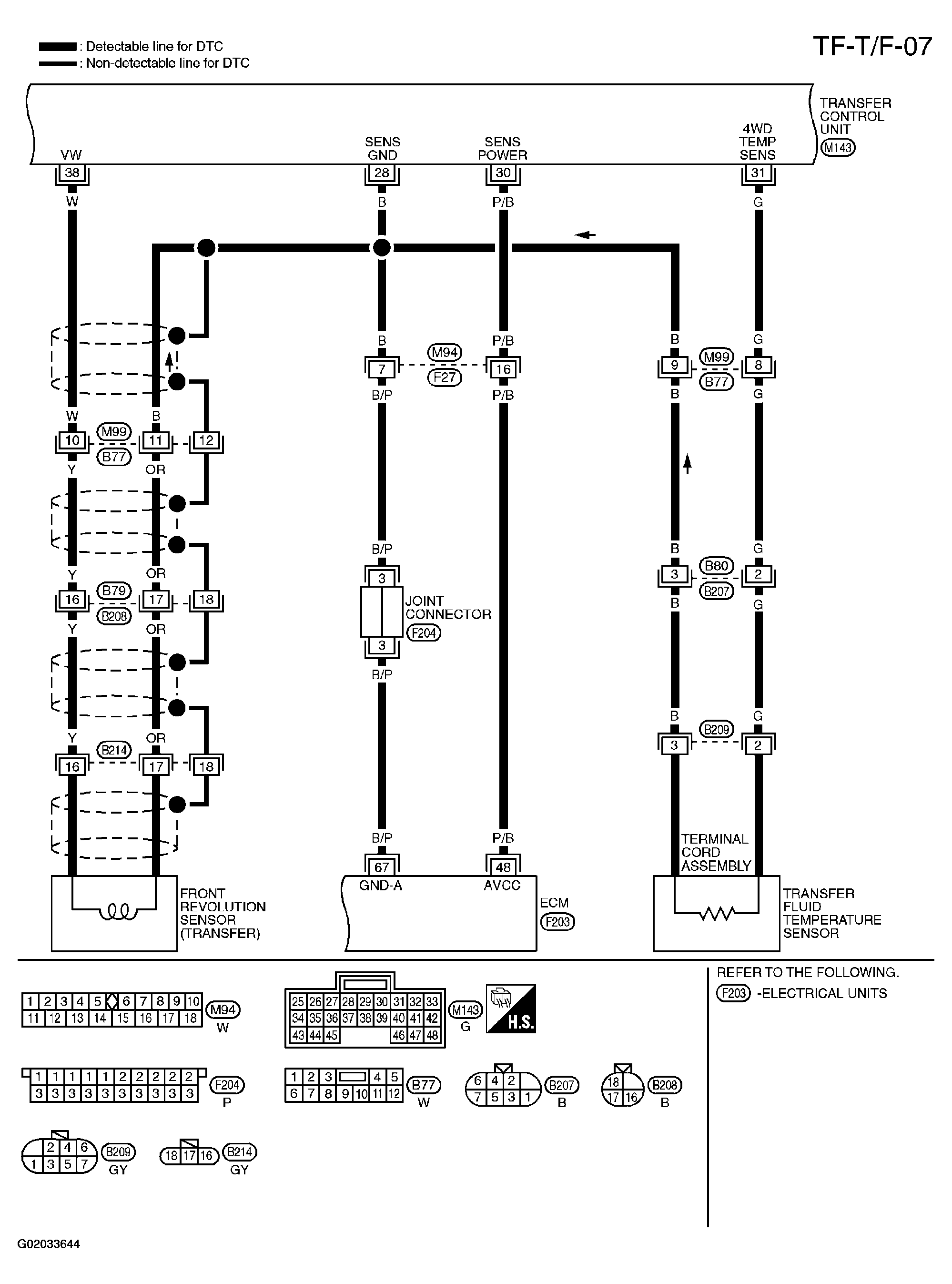

Fig 7: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

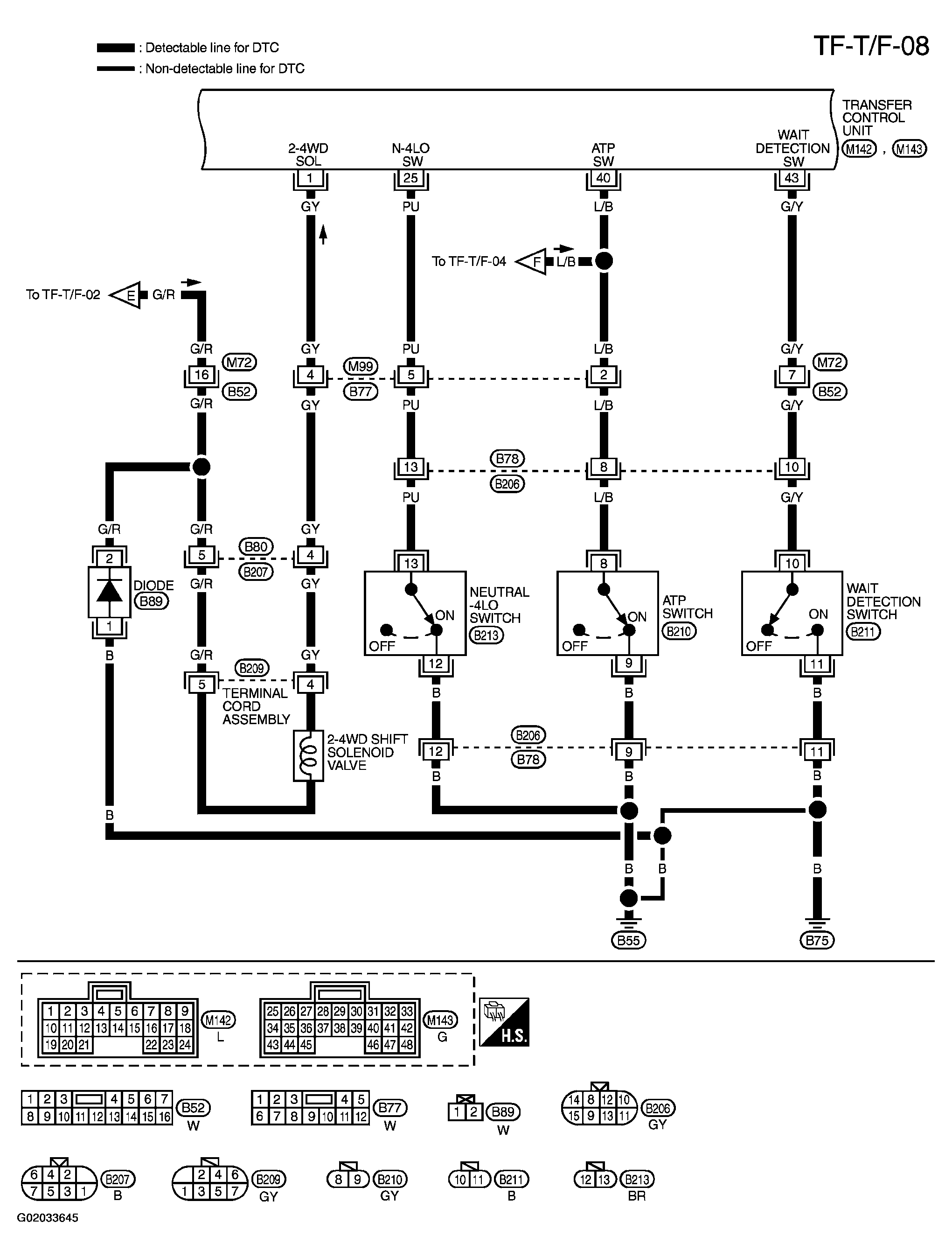

Fig 8: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

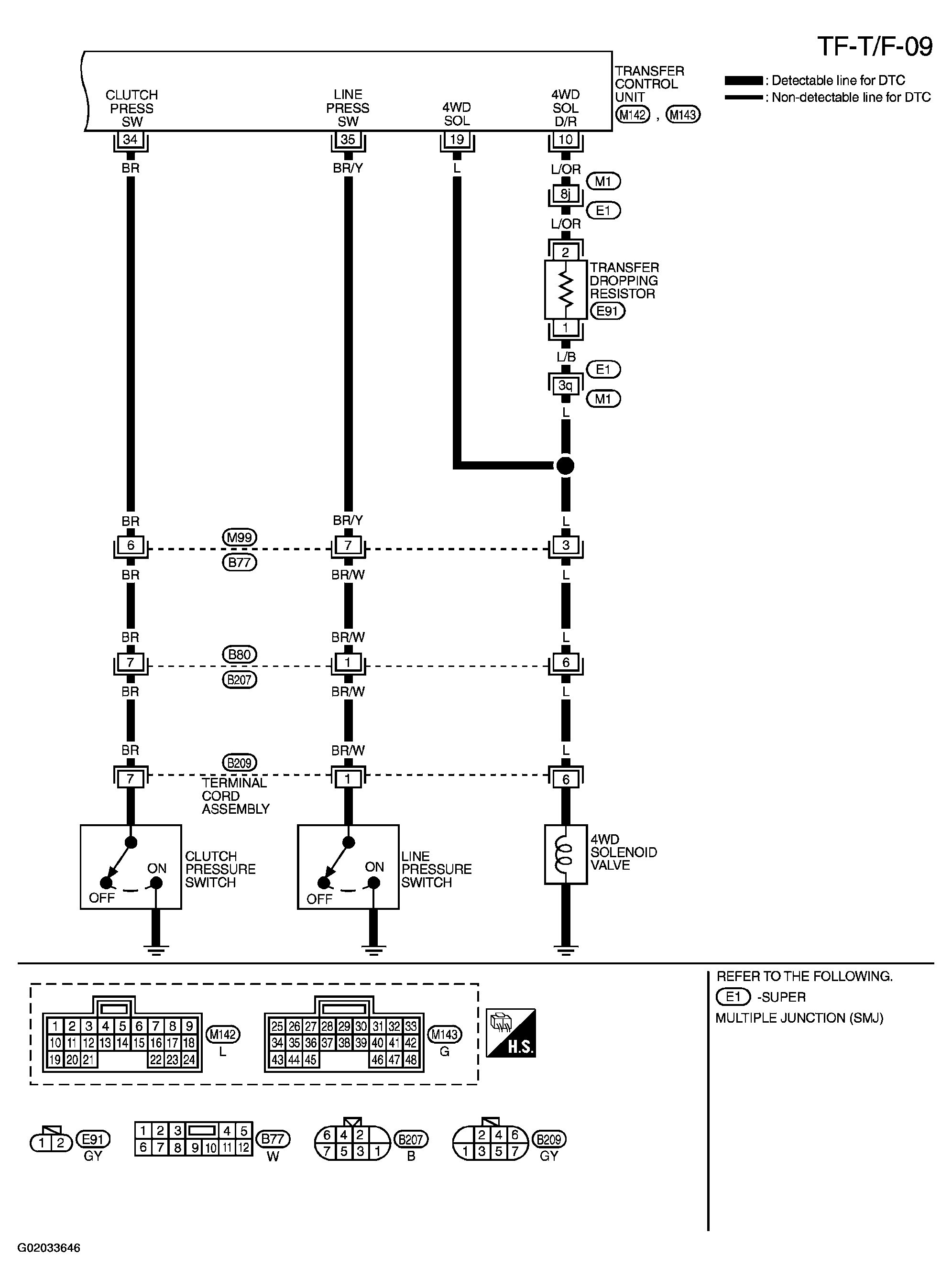

Fig 9: All-Mode 4WD System Transfer Wiring Diagram And Identifying Connectors (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
