Clearance Between Baulk Ring and Gear: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

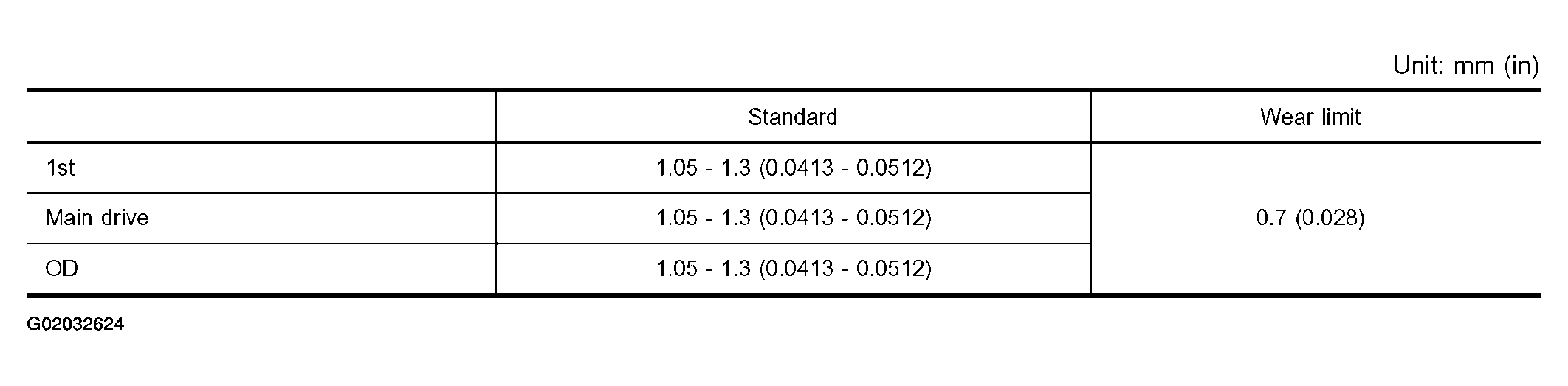

Fig 1: Specification Of Clearance Between Baulk Ring And Gear
G02032624Courtesy of NISSAN MOTOR CO., U.S.A.
