2ND And 3RD Baulk Ring

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

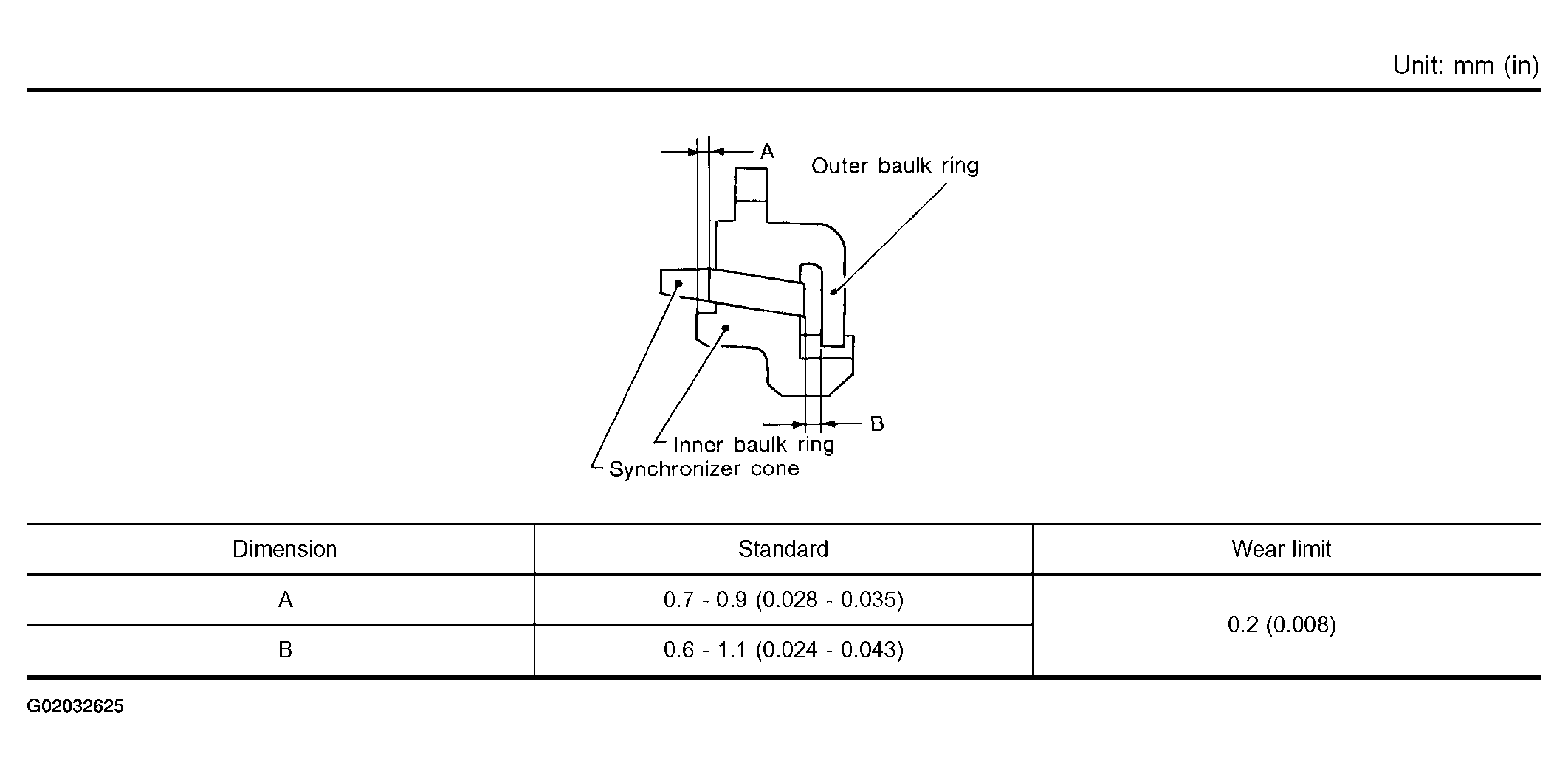

Fig 1: 2nd And 3rd Baulk Ring Specification
G02032625Courtesy of NISSAN MOTOR CO., U.S.A.
