Section 813 (Manual Transaxle)
>>
Service Data And Specification (SDS)
>>
Available Snap Ring
>>
MAINSHAFT Front Snap Ring
MAINSHAFT Front Snap Ring
WARNING:
This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

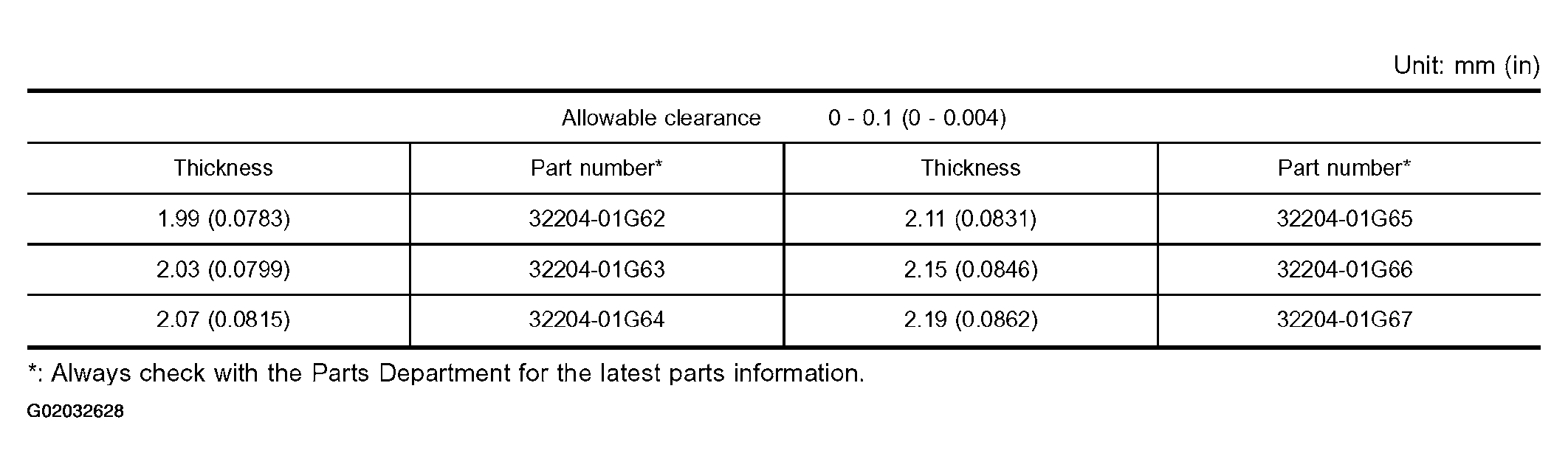

Fig 1: Mainshaft Front Snap Ring Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
