Clutch Release Mechanism: Removal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove manual transmission from the vehicle. Refer to REMOVAL .
Remove withdrawal lever from inside clutch housing.

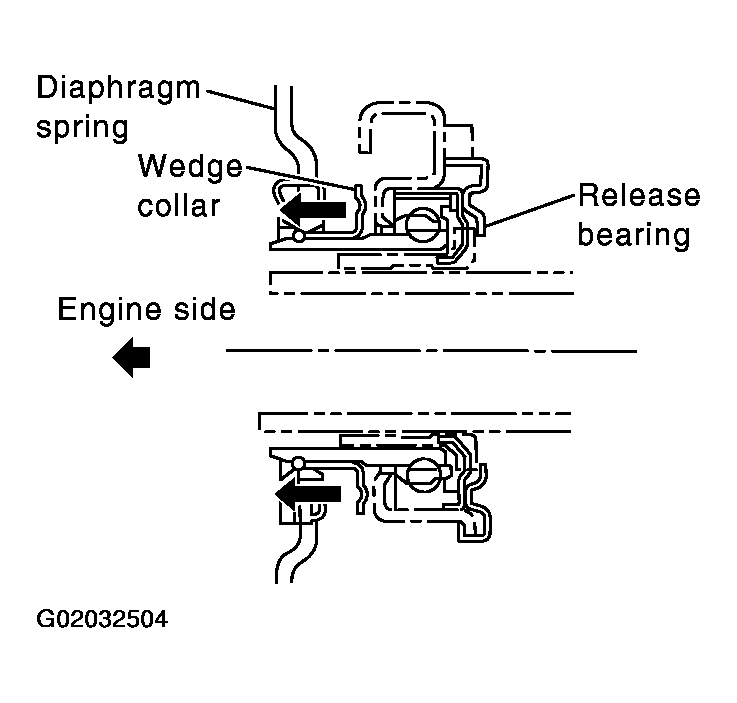

Press wedge collar on clutch cover toward the engine.

Fig 1: Removing Lever From Inside Clutch Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

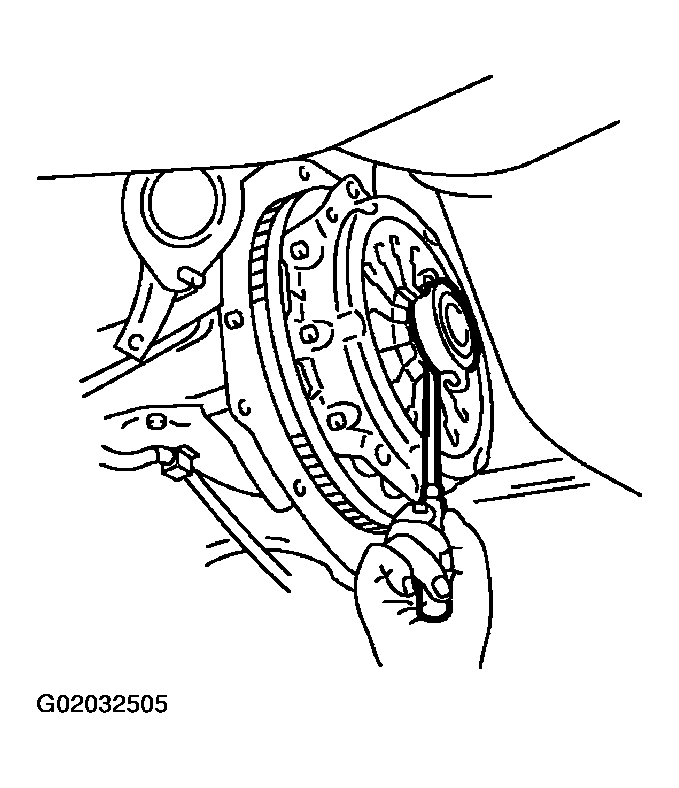

Using a flat-head screwdriver or the like, remove release bearing from clutch cover.

Fig 2: Removing Release Bearing From Clutch Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
