Clutch Release Mechanism: Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply clutch sleeve grease to the areas shown by the arrows in the figure.
  2. Install the release bearing to main drive shaft.
  3. Install withdrawal lever to fork support, and secure it with withdrawal lever shaft, washer, and snap pin.
  4. Operate withdrawal lever to check sliding parts for smooth movement.
    CAUTION: Remove excessive grease coming-out.
  5. Install manual transmission.

    Refer to INSTALLATION .

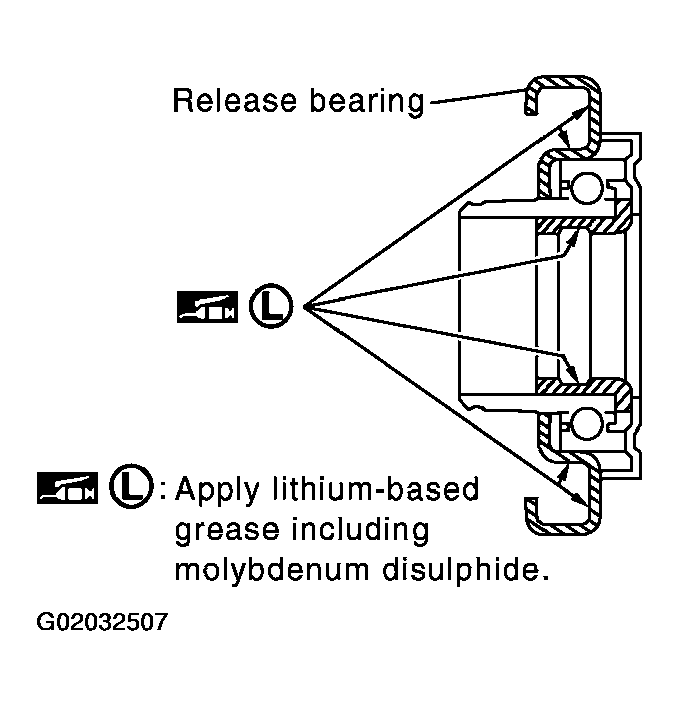

    Fig 1: Installing Release Bearing To Main Drive Shaft
    G02032507Courtesy of NISSAN MOTOR CO., U.S.A.
