Clutch Disc, Clutch Cover And Flywheel: Removal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove manual transmission from the vehicle.
Refer to REMOVAL .
Remove release bearing from clutch cover.
Loosen mounting bolts on the clutch cover evenly, and remove clutch cover and clutch disc.

CAUTION: Do not hold the wedge collar when handling the clutch cover.

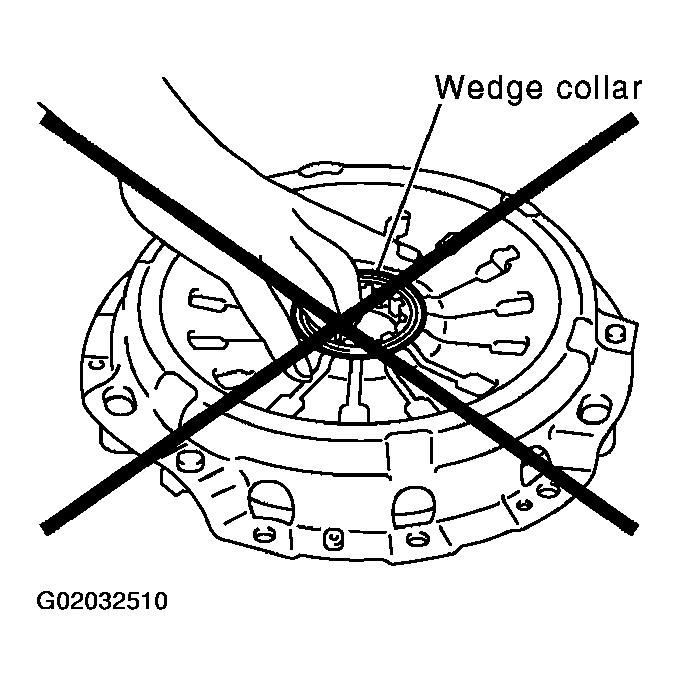

Fig 1: Do Not Hold Wedge Collar When Handling Clutch Cover

Courtesy of NISSAN MOTOR CO., U.S.A.
