Cooling Fan (Crankshaft driven): Inspection

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check fan coupling for rough operation, wobbling, oil leakage or bent bimetal.

After assembly, verify the fan does not wobble or flap while the engine is running.

WARNING:
  • When the engine is running, keep hands and clothing away from moving parts such as drive belts and fan.

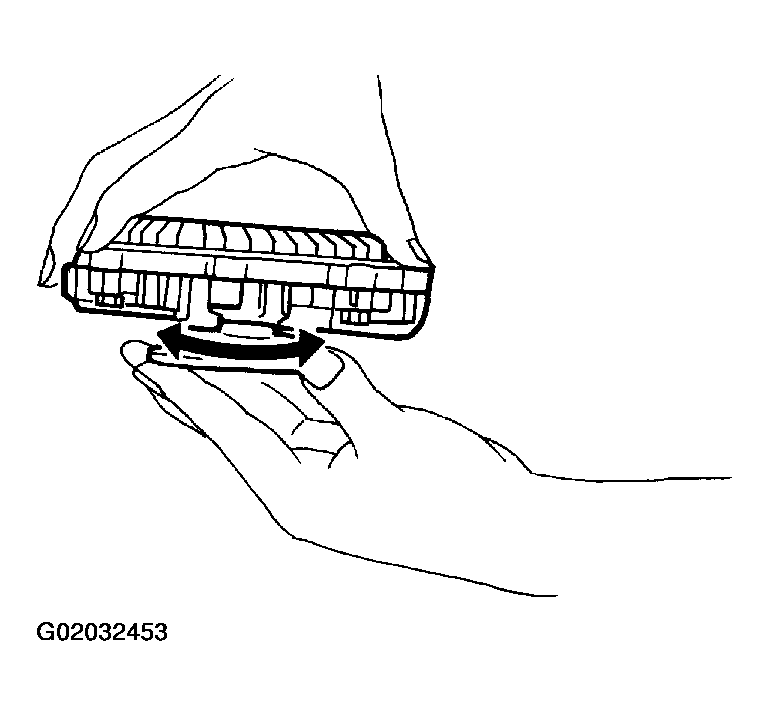

    Fig 1: Checking Fan Coupling
    G02032453Courtesy of NISSAN MOTOR CO., U.S.A.
