Upper Intake Manifold Collector

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Loosen bolts and nuts in reverse order and tighten to 17.6 to 21.6 N.m (1.8 to 2.2 kg-m, 13 to 15 ft-lb) in numerical order shown in the figure.

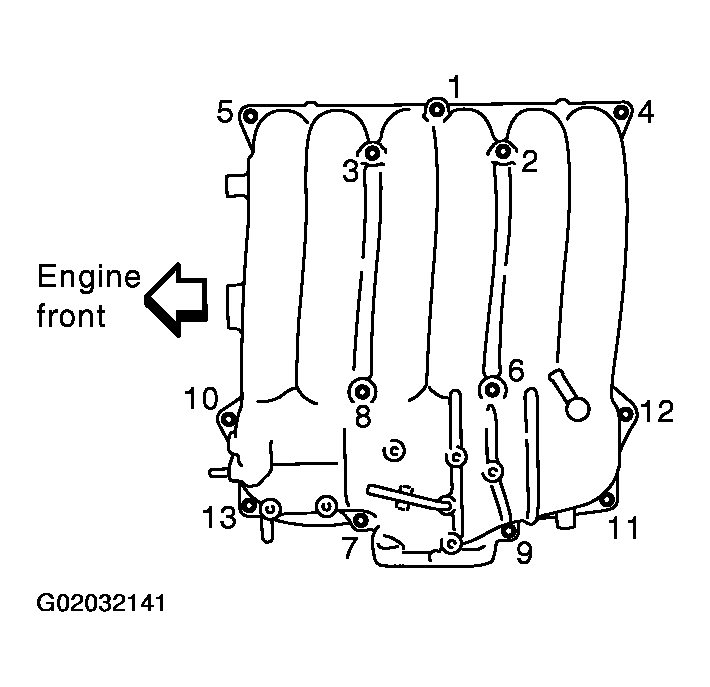

Fig 1: Identifying Tightening Procedures (Upper Intake Manifold Collector)
G02032141Courtesy of NISSAN MOTOR CO., U.S.A.
