Lower Intake Manifold Collector

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Tighten bolts and nuts to 17.6 to 21.6 N.m (1.8 to 2.2 kg-m, 13 to 15 ft-lb) in numerical order shown in the figure.

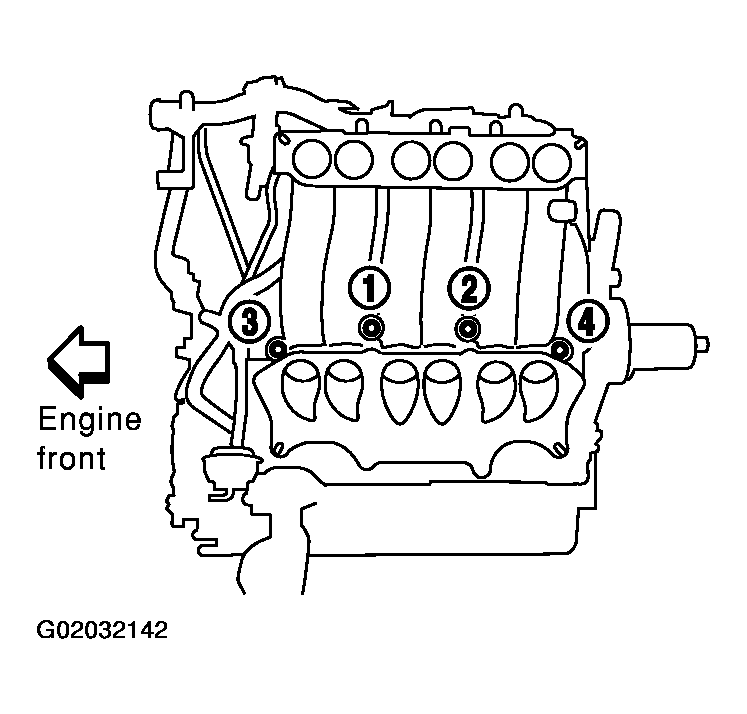

Fig 1: Identifying Tightening Procedures (Lower Intake Manifold Collector)
G02032142Courtesy of NISSAN MOTOR CO., U.S.A.
