Fuel Tube
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

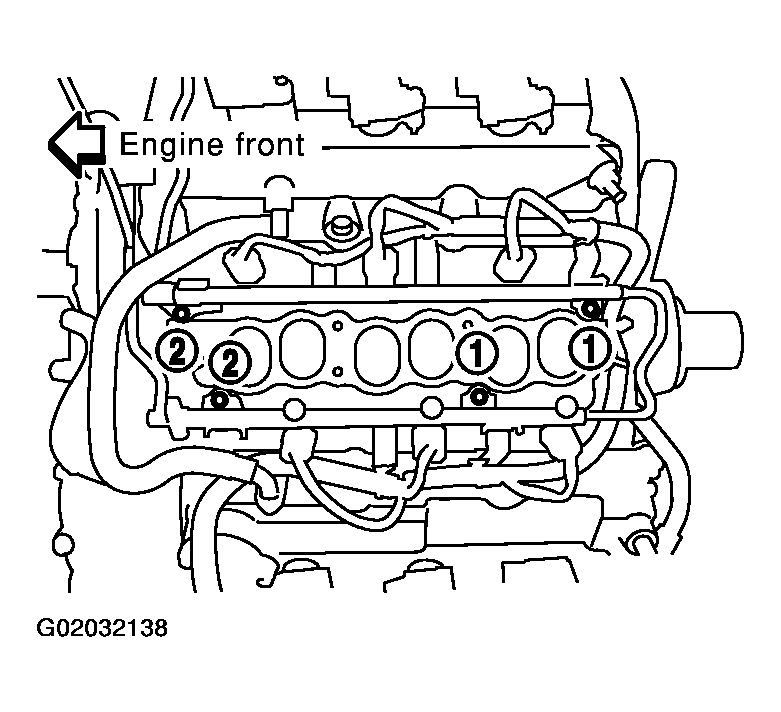

- Tighten in numerical order shown in the figure.
- Tighten all bolts to 9.3 to 10.8 N.m (0.95 to 1.1 kg-m, 83 to 95 in-lb).
- Then tighten all bolts to 20.6 to 26.5 N.m (2.1 to 2.7 kg-m, 16 to 19 ft-lb).
Courtesy of NISSAN MOTOR CO., U.S.A.
