Rear Oil Seal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission. Refer to REMOVAL (AUTO) or REMOVAL (MANUAL) .
  2. Remove flywheel or drive plate.
  3. Remove oil pan. Refer to PRECAUTIONS .
  4. Remove rear oil seal retainer.

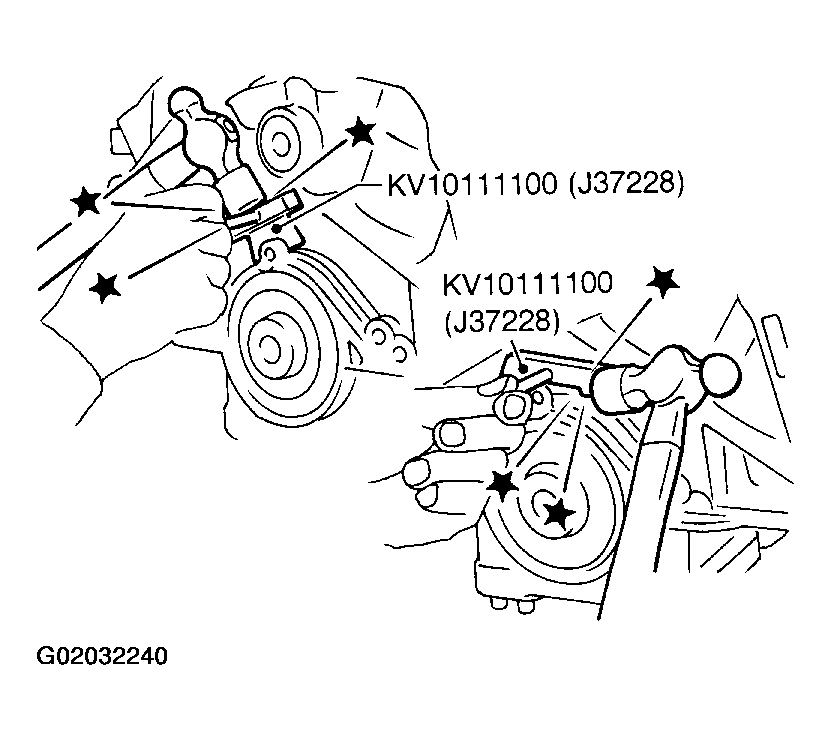

    Fig 1: Removing Rear Oil Seal Retainer
    G02032240Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Apply liquid gasket to rear oil seal retainer.
    • Assembly should be done within 5 minutes after coating.

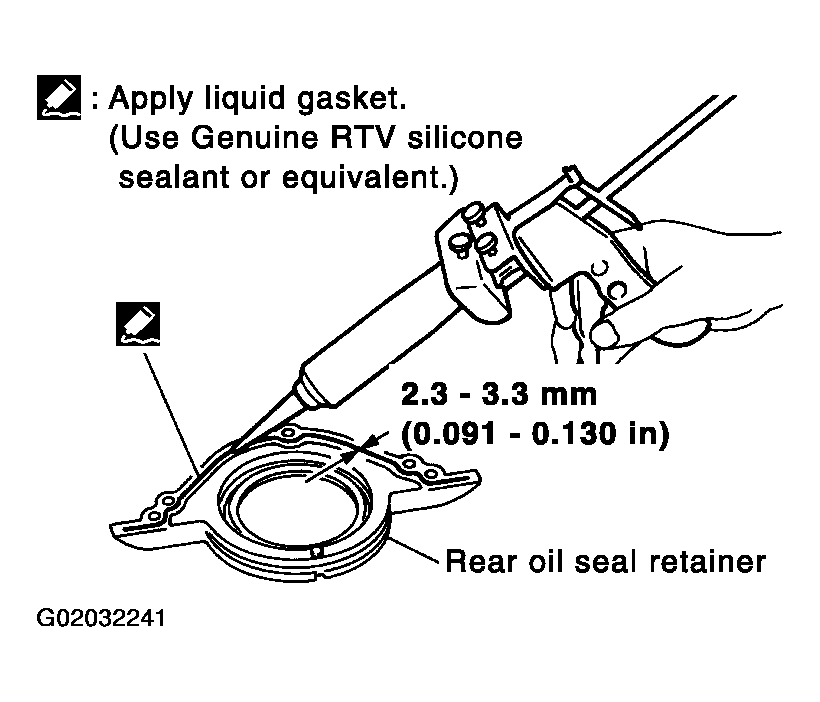

      Fig 2: Applying Liquid Gasket To Rear Oil Seal Retainer
      G02032241Courtesy of NISSAN MOTOR CO., U.S.A.
