Front Oil Seal
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following parts:
- Engine undercover
- Suspension member stay
- Drive belts
- Crankshaft pulley: Refer to REMOVAL .
- Radiator: Refer to REMOVAL AND INSTALLATION .
- Cooling fan

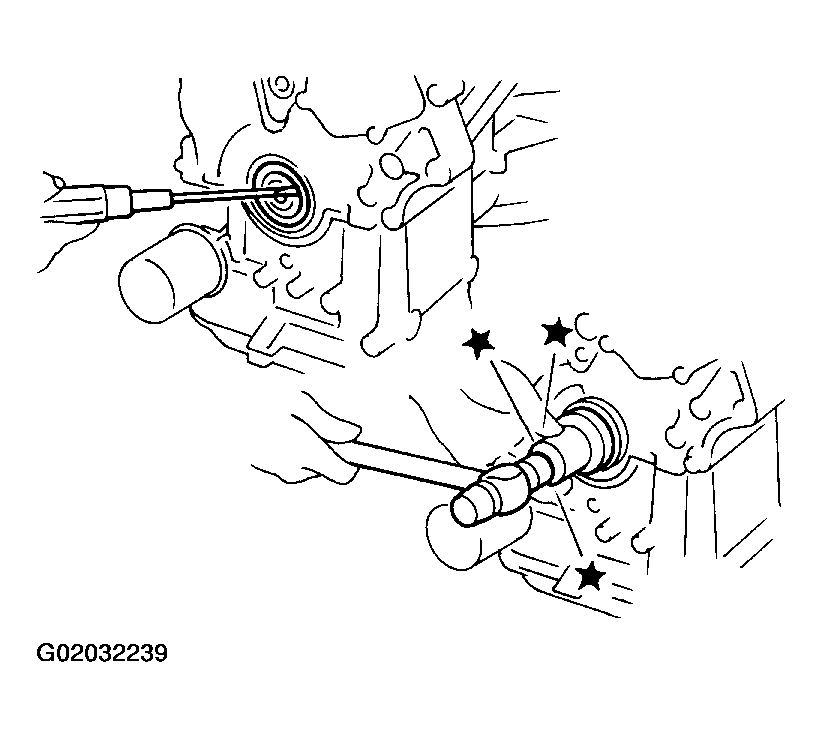

- Remove front oil seal using a suitable tool.
Be careful not to scratch front cover.
- Apply engine oil to new oil seal and install it using a suitable tool until its front end is level with front end of front cover.
