NVH Troubleshooting - Engine Noise

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to help you find the cause of the symptom.

  1. Locate the area where noise occurs.
  2. Confirm the type of noise.
  3. Specify the operating condition of engine.
  4. Check specified noise source.

    If necessary, repair or replace these parts.

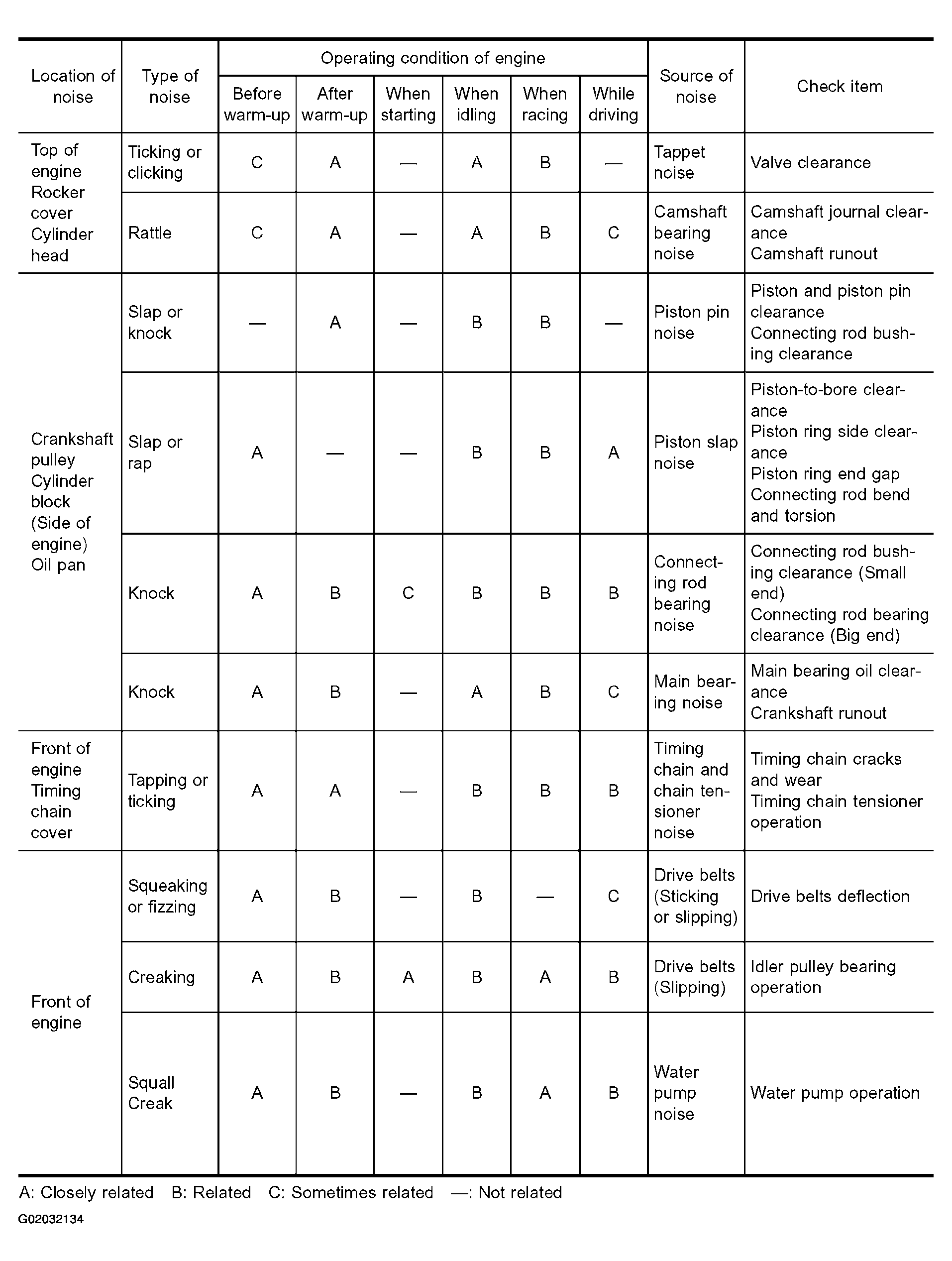

    Fig 1: Noise, Vibration And Harshness Troubleshooting Chart
    G02032134Courtesy of NISSAN MOTOR CO., U.S.A.
