Camshaft RUNOUT

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Put V block on precise flat bed, and support No. 2 and No. 4 journal of camshaft.
Set dial gauge vertically to No. 3 journal.
Turn camshaft to one direction with hands, and measure camshaft runout on dial gauge.
Runout (Total indicator reading):

Limit 0.05 mm (0.0020 in)
If it exceeds the limit, replace camshaft.

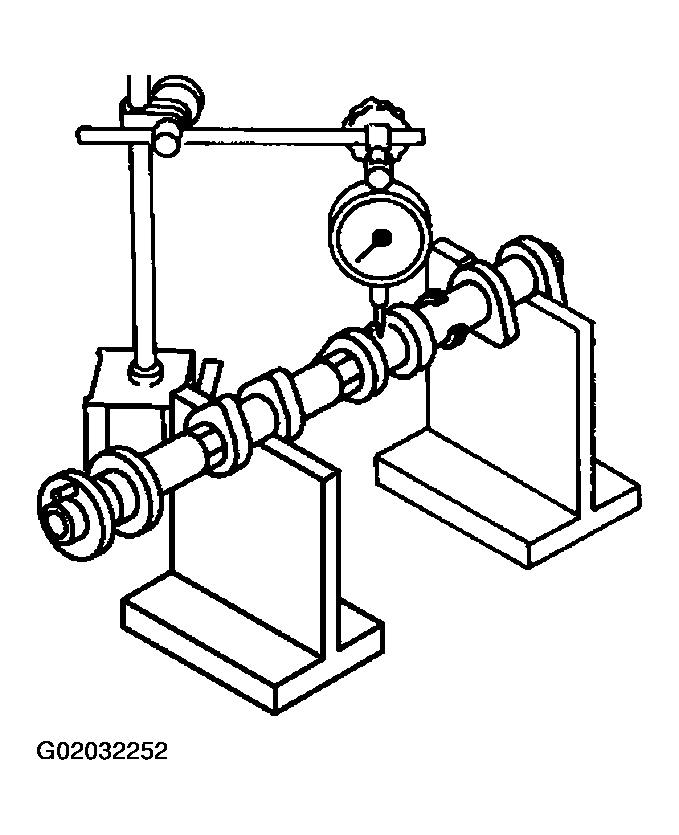

Fig 1: Measuring Camshaft Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
