Camshaft Journal Clearance
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Install camshaft bracket and tighten bolts to the specified torque.

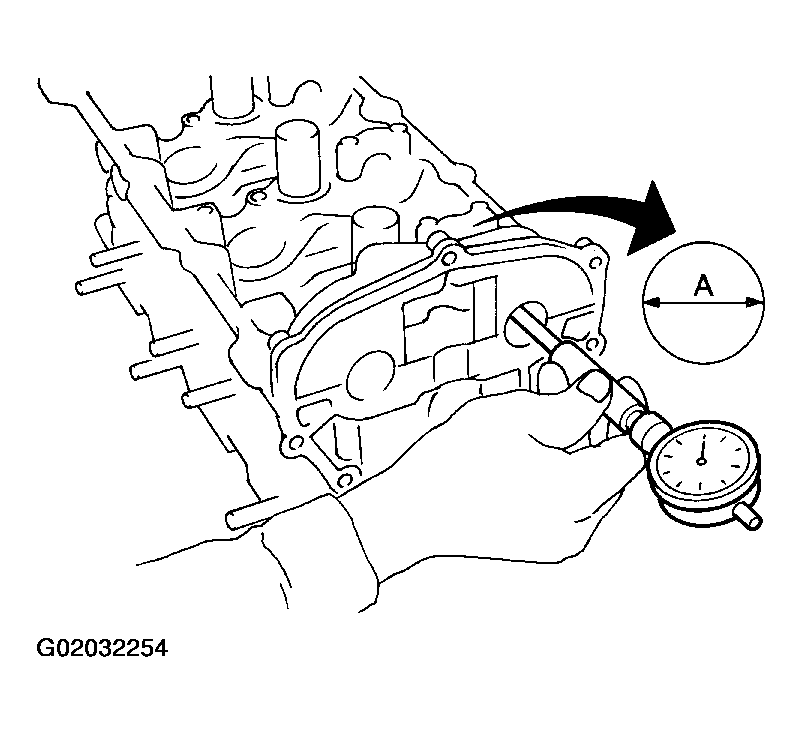

- Measure inner diameter "A" of camshaft bearing.
Standard inner diameter:
No. 1: 26.000 - 26.021 mm (1.0236 - 1.0244 in)
No. 2, 3, 4: 23.500 - 23.521 mm (0.9252 - 0.9260 in)

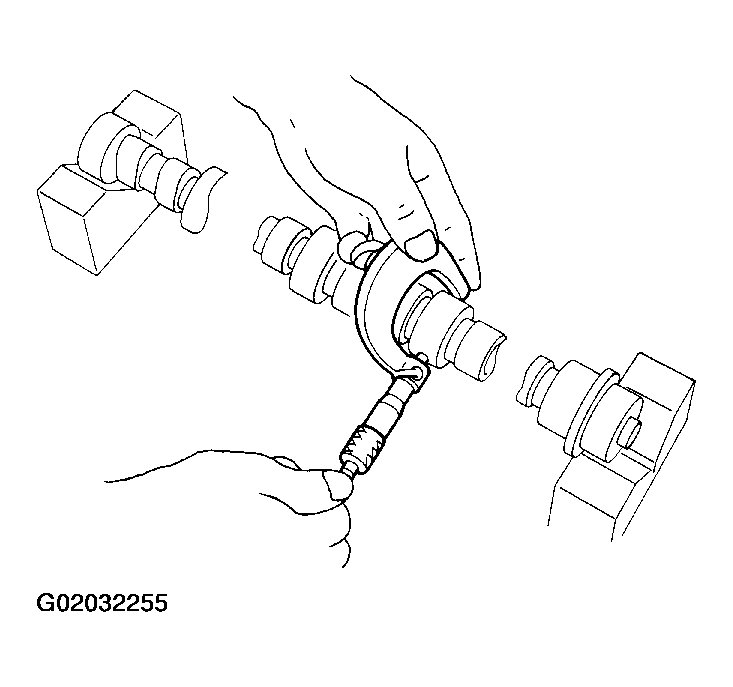

- Measure outer diameter of camshaft journal.
Standard outer diameter:
No. 1: 25.935 - 25.955 mm (1.0211 - 1.0218 in)
No. 2, 3, 4: 23.445 - 23.465 mm (0.9230 - 0.9238 in)
- If clearance exceeds the limit, replace camshaft and/or cylinder head.
Camshaft journal clearance:
Standard
No. 1: 0.045 - 0.086 mm (0.0018 - 0.0034 in)
No. 2, 3, 4: 0.035 - 0.076 mm (0.0014 - 0.0030 in)
Limit
0.15 mm (0.0059 in)
