Camshaft Cam Height
WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

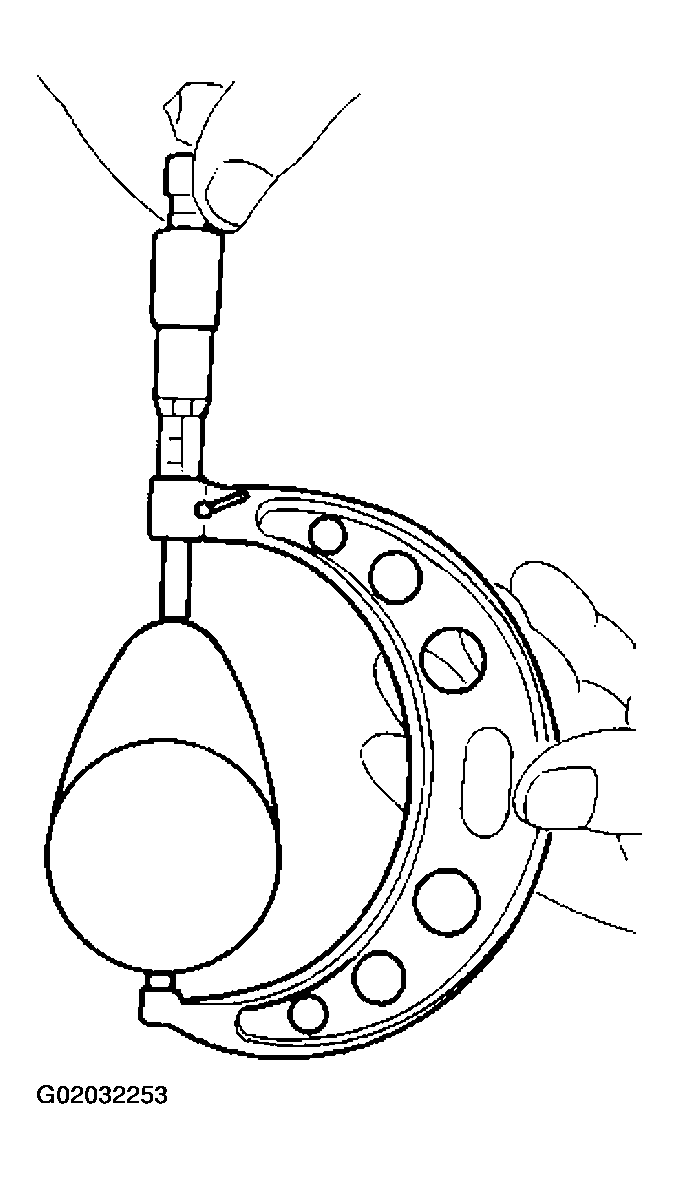

- Measure camshaft cam height.
Standard cam height:
Intake and exhaust
44.465 - 44.655 mm (1.7506 - 1.7581 in)
Cam wear limit:
0.2 mm (0.008 in)
- If wear is beyond the limit, replace camshaft.
Courtesy of NISSAN MOTOR CO., U.S.A.
