Flywheel/Drive Plate RUNOUT

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Runout (Total indicator reading):

Flywheel (M/T model)

Less than 0.15 mm (0.0059 in)

Drive plate (A/T model)

Less than 0.15 mm (0.0059 in)

CAUTION:
  • The signal plate is built into the flywheel/drive plate assembly. Be careful not to damage the signal plate, especially the teeth.
  • Check the drive plate and signal plate for deformation or cracks.
  • Never place the flywheel assembly with the signal plate facing down.
  • Keep any magnetized objects away from the signal plate.
  • Do not allow any magnetic materials to contact the signal plate teeth.
  • Do not surface flywheel. Replace as necessary.

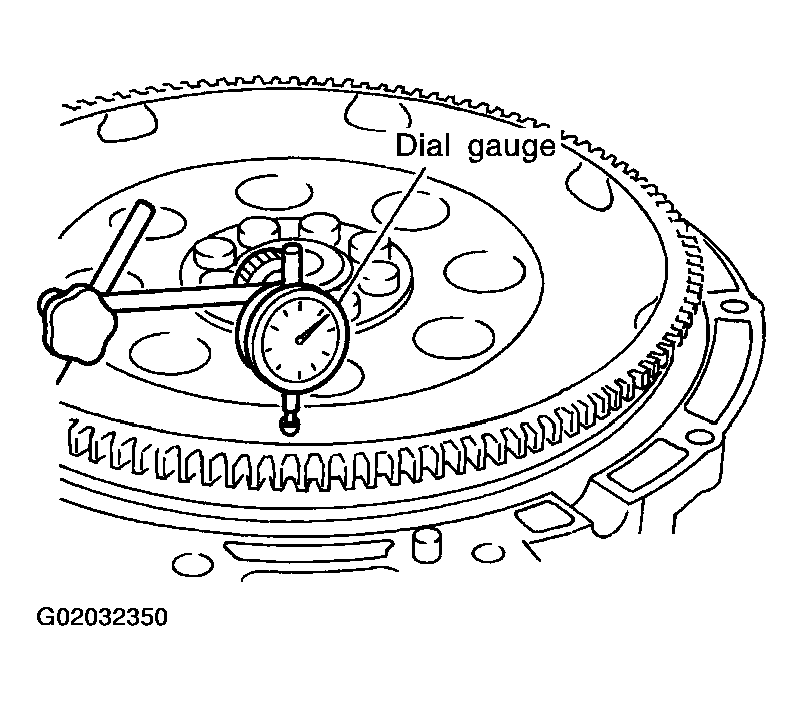

    Fig 1: Measuring Flywheel/Drive Plate Runout
    G02032350Courtesy of NISSAN MOTOR CO., U.S.A.

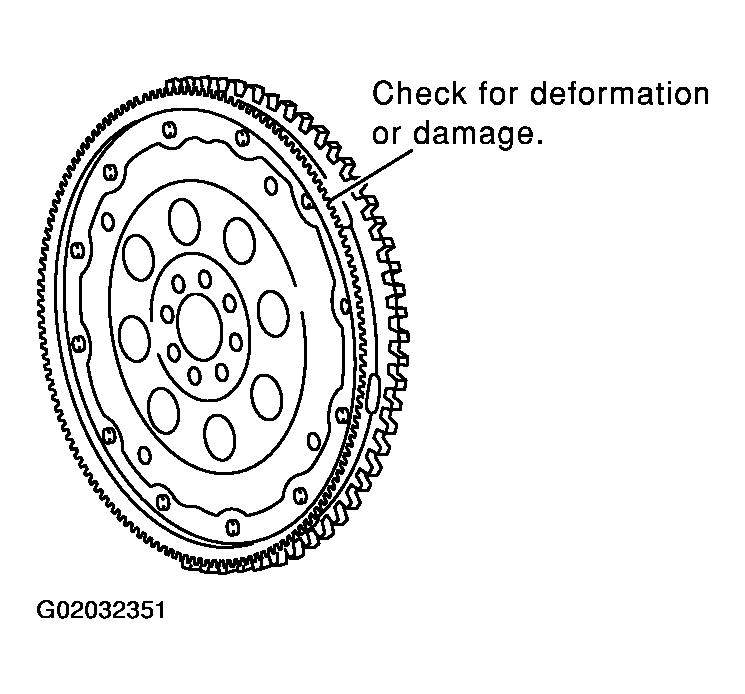

    Fig 2: Checking Drive Plate And Signal Plate For Deformation Or Cracks
    G02032351Courtesy of NISSAN MOTOR CO., U.S.A.
