Cylinder Block Distortion And Wear

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Clean upper surface of cylinder block.
Use a reliable straightedge and feeler gauge to check the flatness of cylinder block surface.

Check along six positions shown in the figure.

Distortion limit: 0.10 mm (0.0039 in)
If out of specification, resurface it. The limit for cylinder block resurfacing is determined by cylinder head resurfacing in engine.
Resurfacing limit:

Amount of cylinder head resurfacing is "A".

Amount of cylinder block resurfacing is "B".

The maximum limit is as follows:

A + B = 0.2 mm (0.008 in)

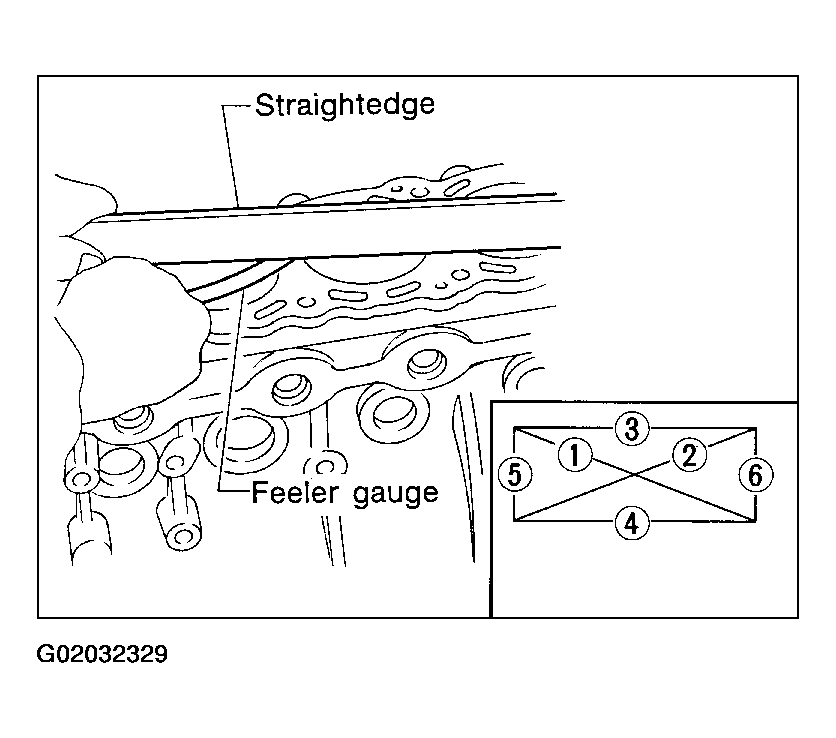

Fig 1: Checking Flatness Of Cylinder Block Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

Nominal cylinder block height from crankshaft center:

214.95 - 215.05 mm (8.4626 - 8.4665 in)

Refer to SDS CYLINDER BLOCK .
If necessary, replace cylinder block.
