Cylinder Block: Inspection: Crankshaft

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check crankshaft main and pin journals for score, wear or cracks.
With a micrometer, measure journals for taper and out-of-round.

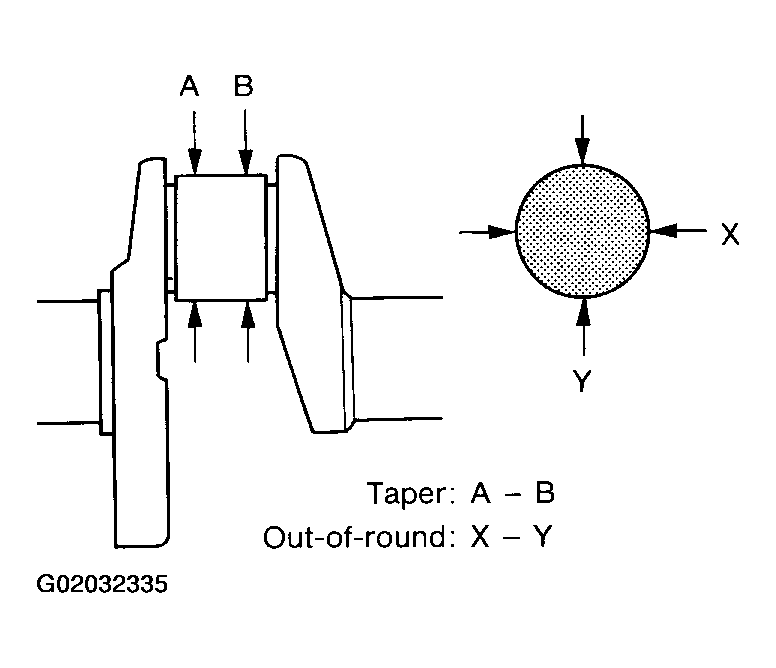

Fig 1: Measuring Journals For Taper And Out-Of-Round
Courtesy of NISSAN MOTOR CO., U.S.A.

Out-of-round (X - Y):

Standard

0.002 mm (0.0001 in)

Taper (A - B):

Standard

0.002 mm (0.0001 in)
Measure crankshaft runout.
Runout (Total indicator reading):

Limit 0.10 mm (0.0039 in)

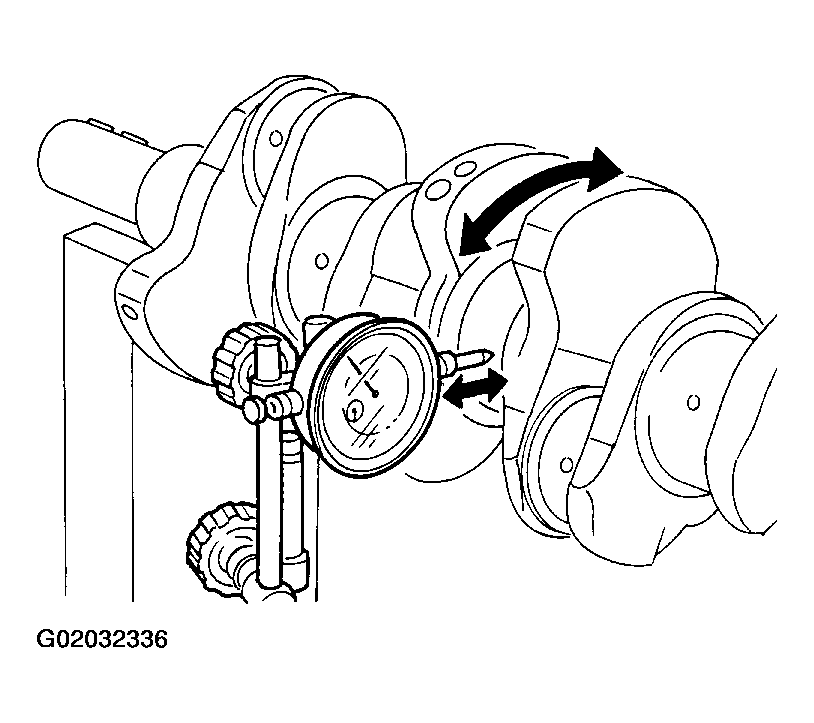

Fig 2: Measuring Crankshaft Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
