SAE J1930 Terminology List

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the following chart.

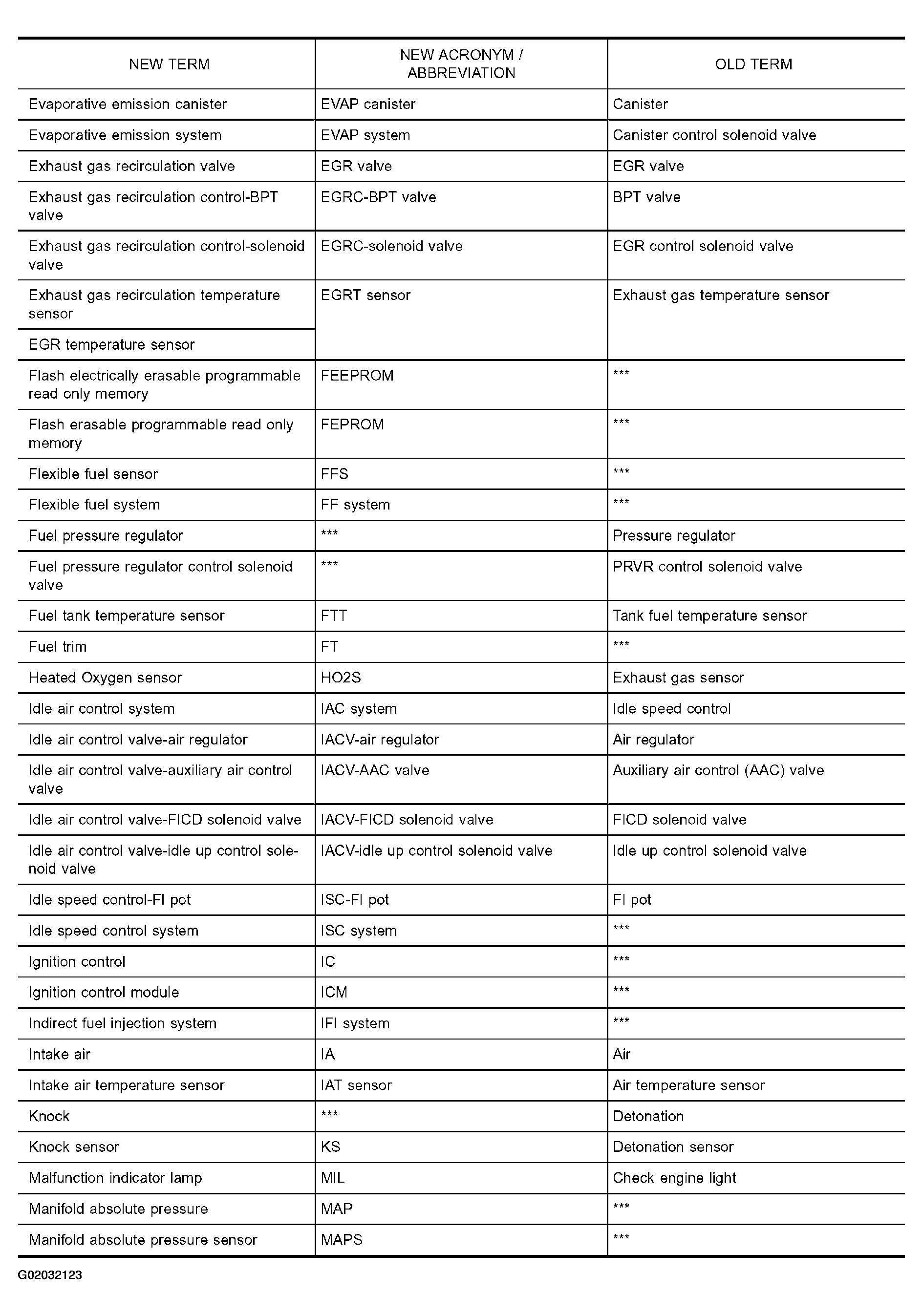

Fig 1: SAE J1930 Terminology Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

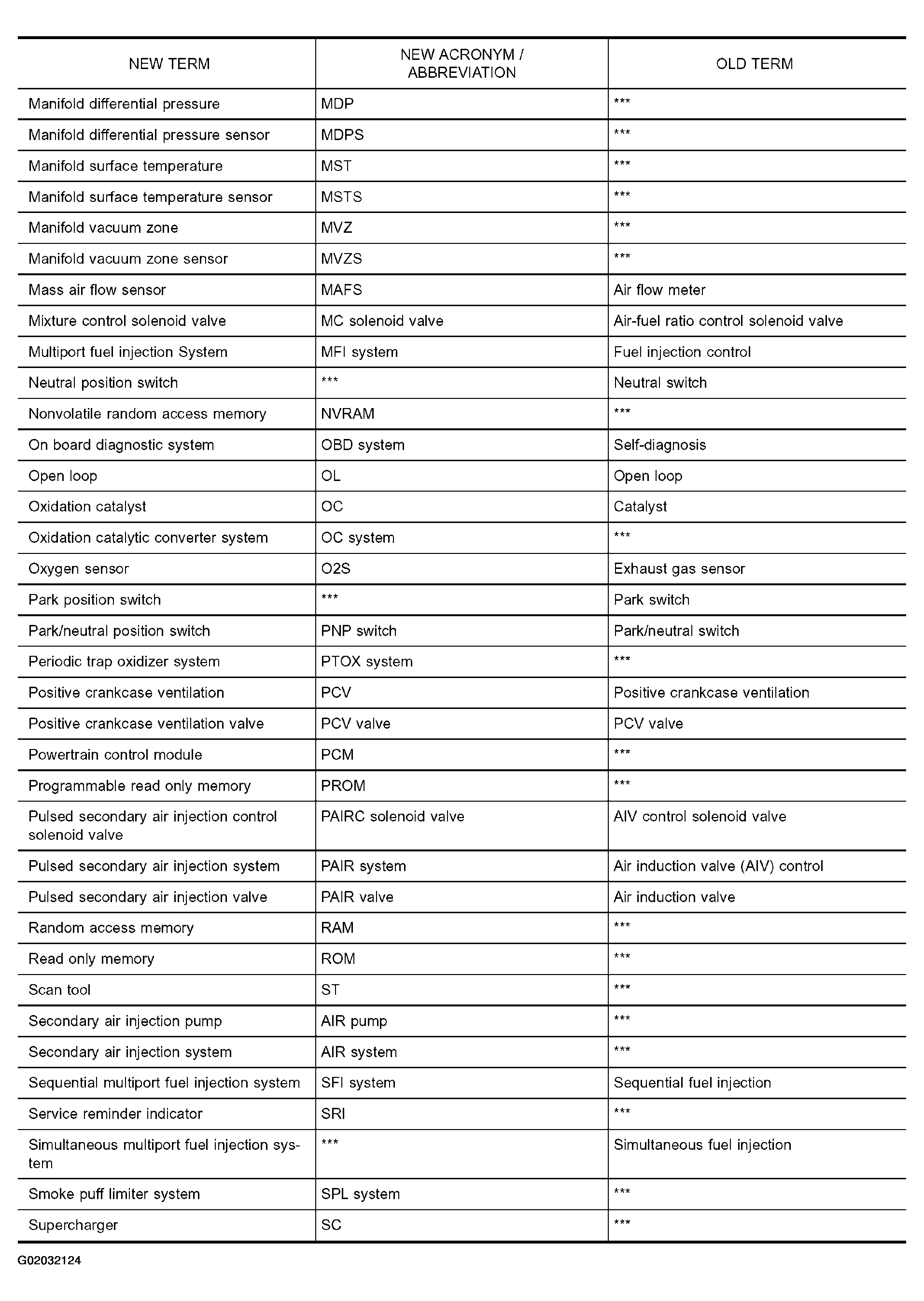

Fig 2: SAE J1930 Terminology Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

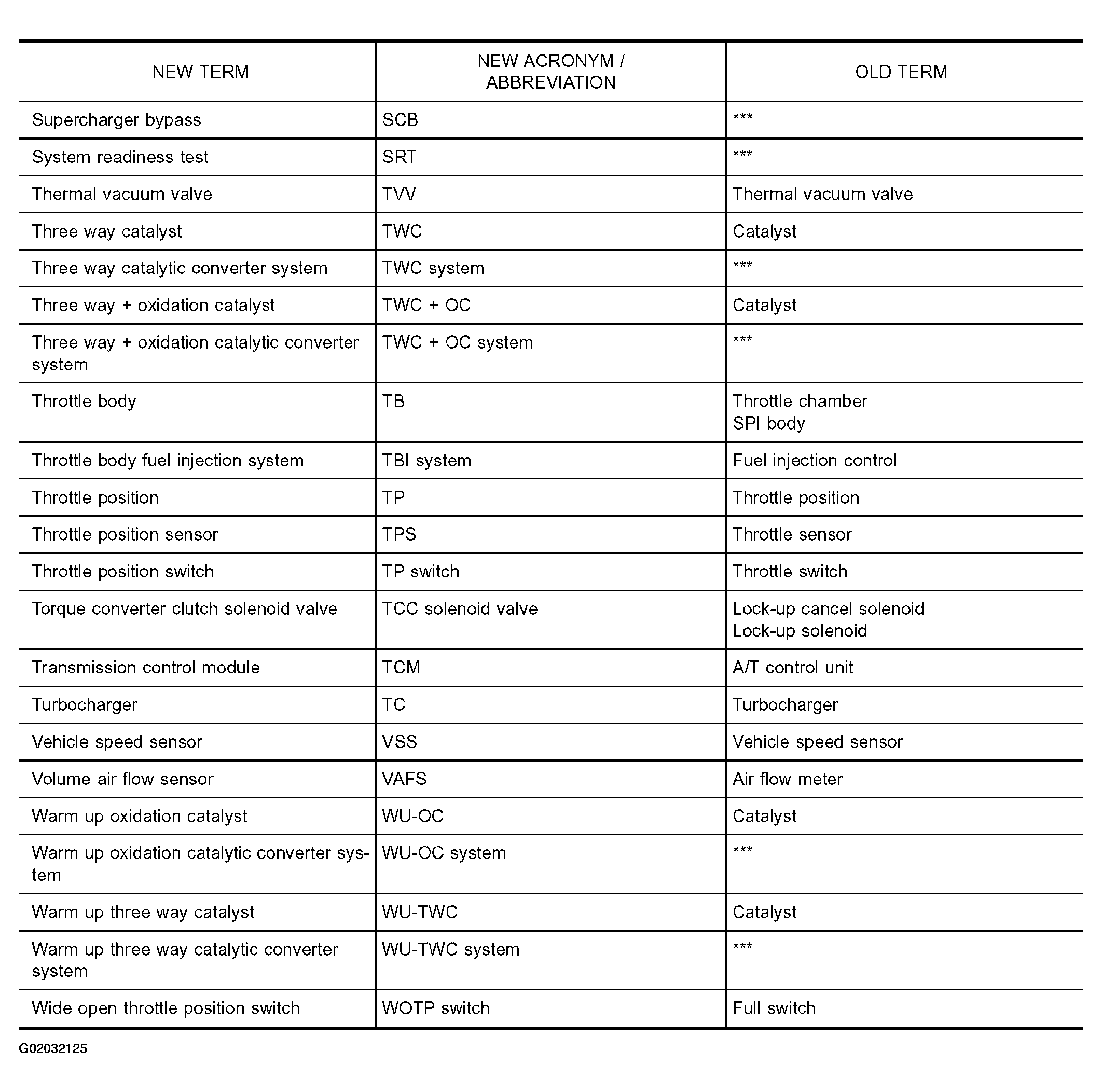

Fig 3: SAE J1930 Terminology Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: SAE J1930 Terminology Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
