Case 1

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

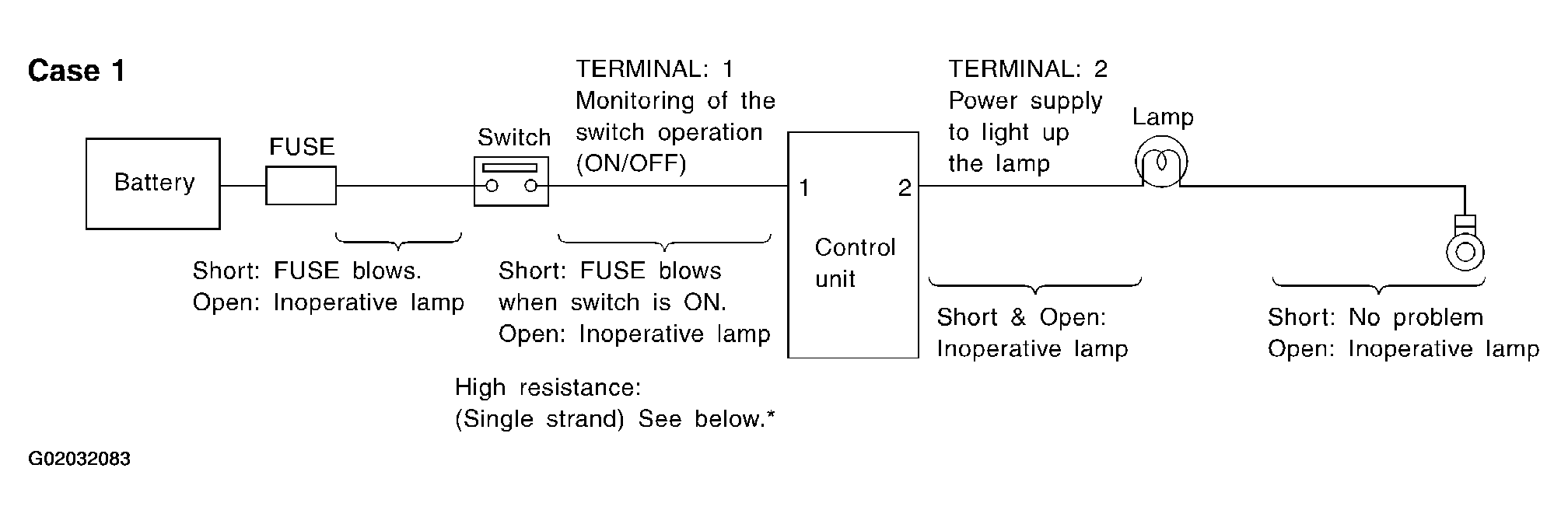

Fig 1: Control Unit Circuit Test Case 1
G02032083Courtesy of NISSAN MOTOR CO., U.S.A.
