Section 807 (Manual Air Conditioner)
>>
Trouble Diagnosis
>>
Wiring Diagram - HEATER -
Wiring Diagram - HEATER -
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

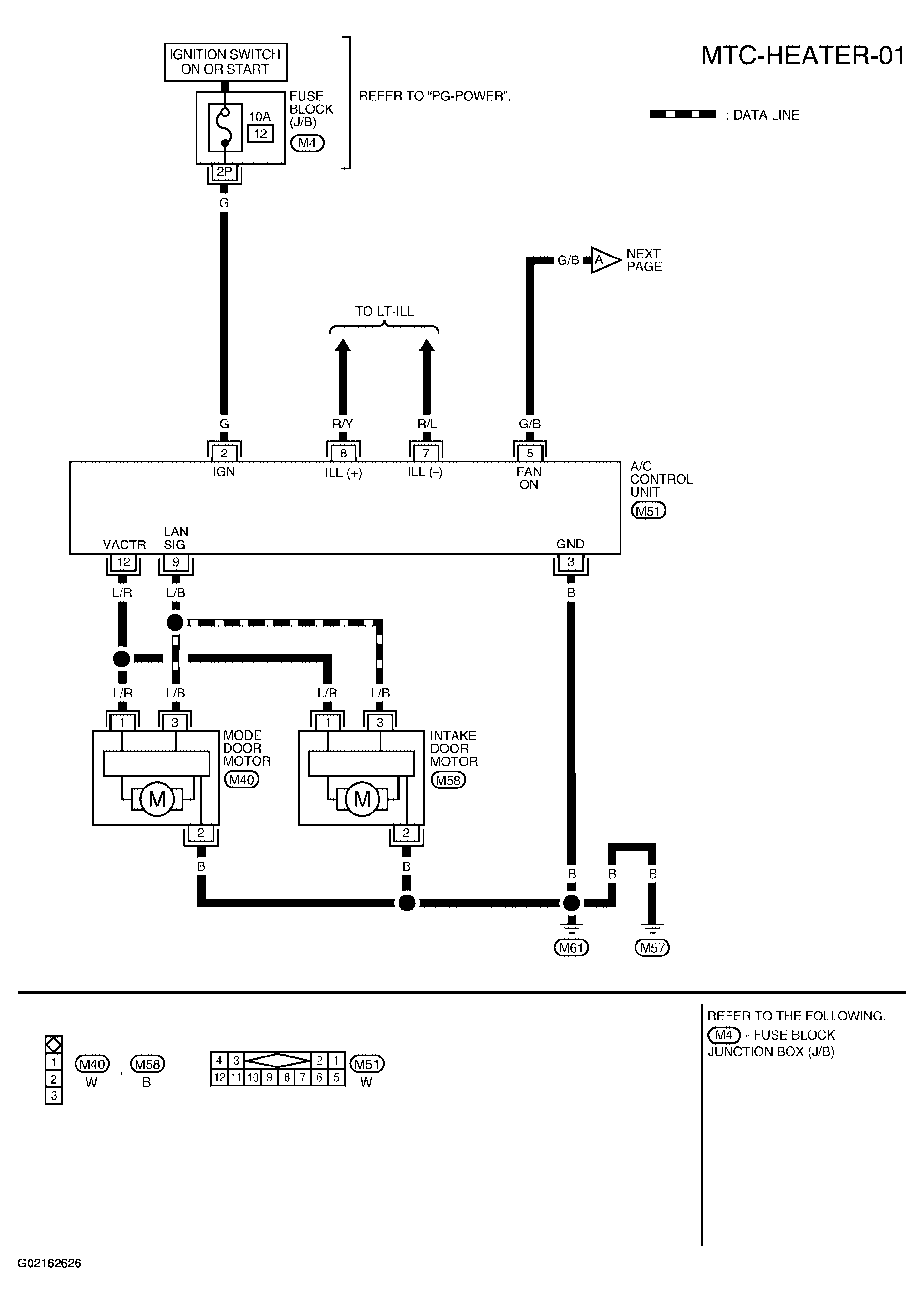

Fig 1: Wiring Diagram - HEATER (01)
Courtesy of NISSAN MOTOR CO., U.S.A.

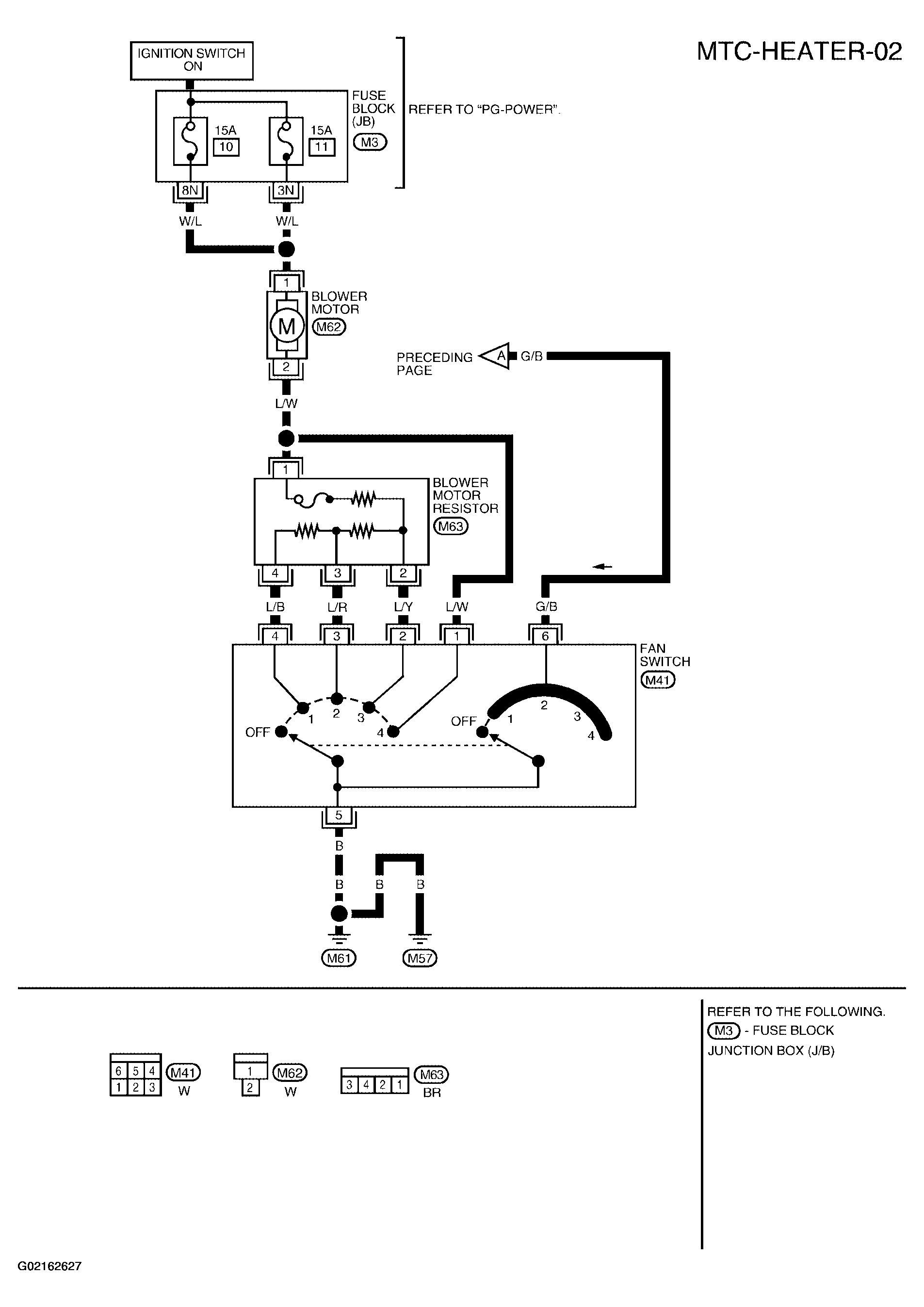

Fig 2: Wiring Diagram - HEATER (02)
Courtesy of NISSAN MOTOR CO., U.S.A.
