Mode Door

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install mode door motor on heater unit.
  2. Ensure that the linkage is properly attached.
  3. Connect mode door motor harness connector.
  4. Turn ignition switch ON.
  5. Check that the mode door operates properly when air control dial is turned to each position.

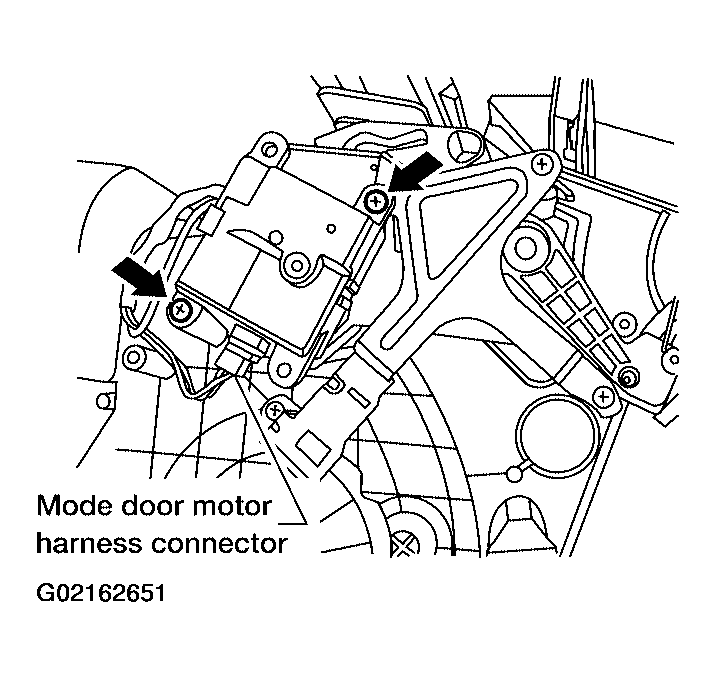

    Fig 1: Locating Mode Door
    G02162651Courtesy of NISSAN MOTOR CO., U.S.A.
