Control Linkage Adjustment

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install intake door motor on blower unit.

    Ensure that the intake door motor lever is fitted into the slit portion of intake door link.

  2. Connect the intake door motor harness connector.
  3. Turn ignition switch to ON.
  4. Check that intake door operates properly when RECIRCULATION switch is turned ON and OFF.

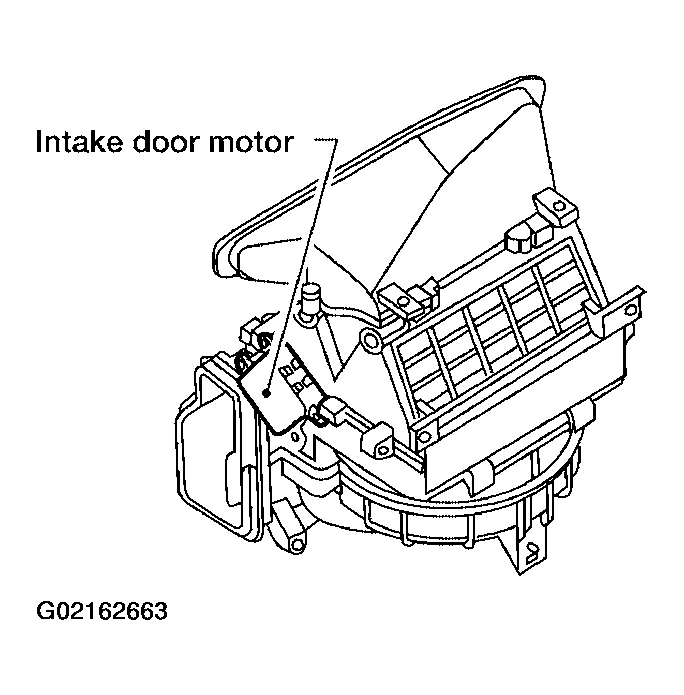

    Fig 1: Locating Intake Door Motor
    G02162663Courtesy of NISSAN MOTOR CO., U.S.A.
