Home >> Nissan-Datsun >> 2003 >> Sentra Limited >> Repair and Diagnosis >> External Pages >> Different car >> Section 807 (Manual Air Conditioner) >> Trouble Diagnosis >> Insufficient Cooling >> Trouble Diagnoses For Abnormal Pressure >> Low-pressure Side Sometimes Becomes Negative

Low-pressure Side Sometimes Becomes Negative

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

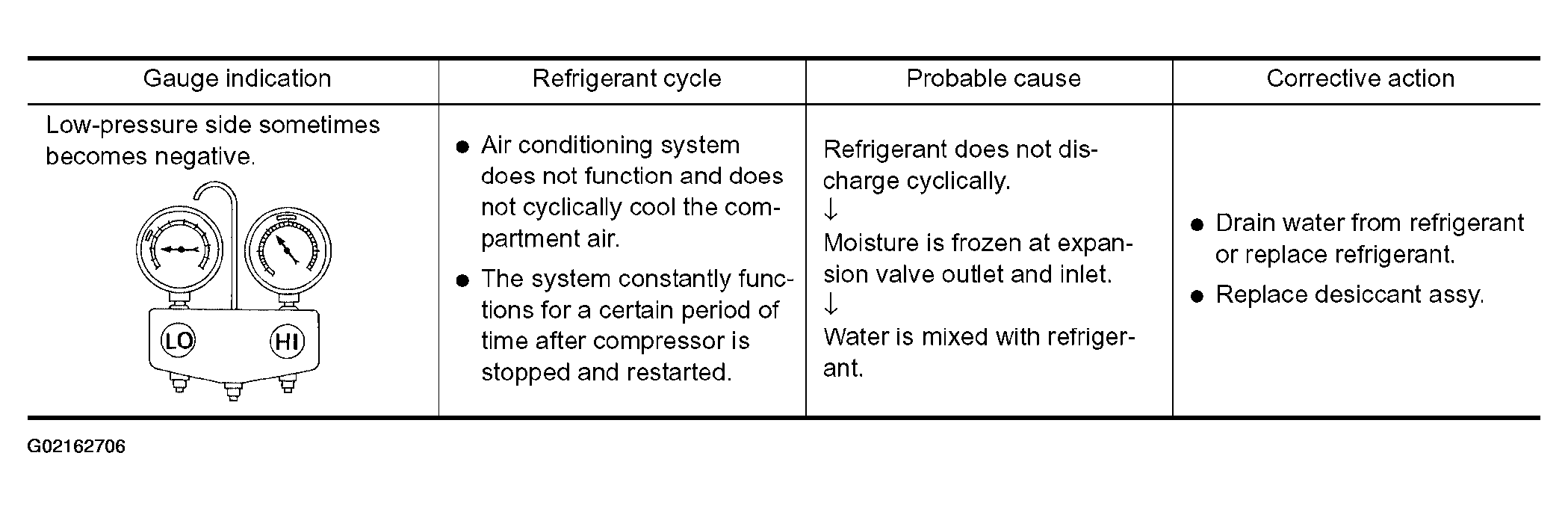

Fig 1: Low-Pressure Side Sometimes Becomes Negative Table
G02162706Courtesy of NISSAN MOTOR CO., U.S.A.
